Speedometer & VSS Circuit Test: Q45

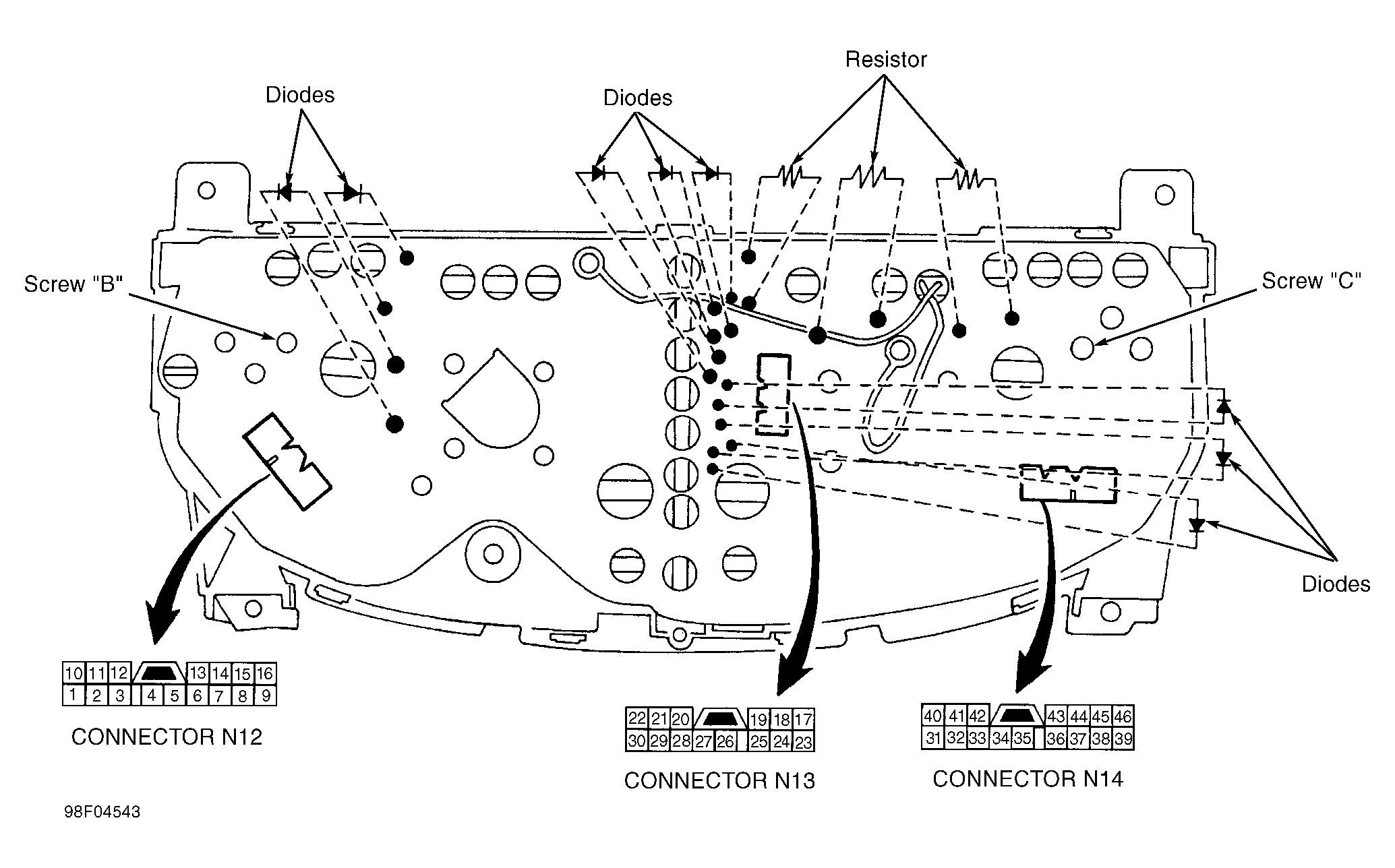

- Turn ignition switch to OFF position. Remove Vehicle Speed Sensor (VSS) from transmission, leaving harness connector connected. Disconnect instrument cluster White 16-pin harness connector N14. See Figure . Using a DVOM set to AC range, measure voltage between terminals No. 8 (Light Green/Black wire) and No. 9 (Brown/White wire) at instrument panel harness connector N14 while turning VSS pinion quickly. See Figure . If approximately 5 volts AC does not exist, go to next step. If approximately 5 volts AC exists, VSS circuit is okay at this time.
- Test VSS. See VEHICLE SPEED SENSOR (VSS) under COMPONENT TESTS. If VSS is defective, replace VSS. If VSS is okay, repair open in Light Green/Black and/or Brown/White wires.
