Removal & Installation (Q45)

Remove axle shaft/wheel bearing lock nut. Lightly tap axle shaft to separate it from wheel hub. Remove brake caliper and rotor. Remove suspension links. Remove hub and knuckle assembly. See Fig 1. To install, reverse removal procedure. Tighten nuts/bolts to specification. See TORQUE SPECIFICATIONS .

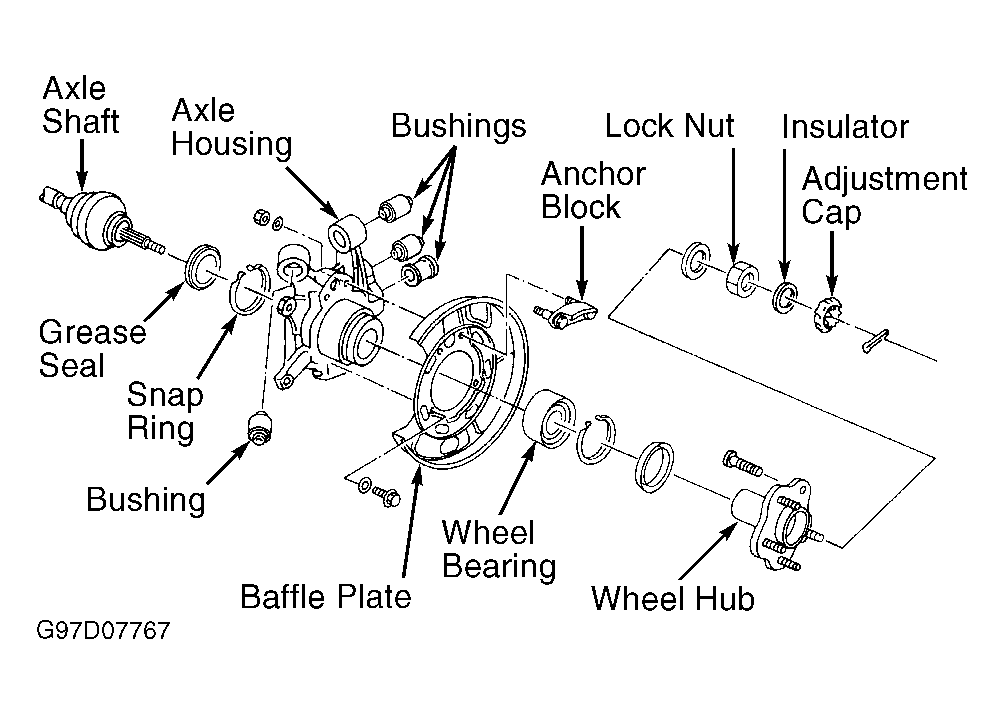

Fig 1: Exploded View Of Hub & Knuckle Assembly (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
