Rear Suspension - I30, J30 & Q45
>>
Description
>>

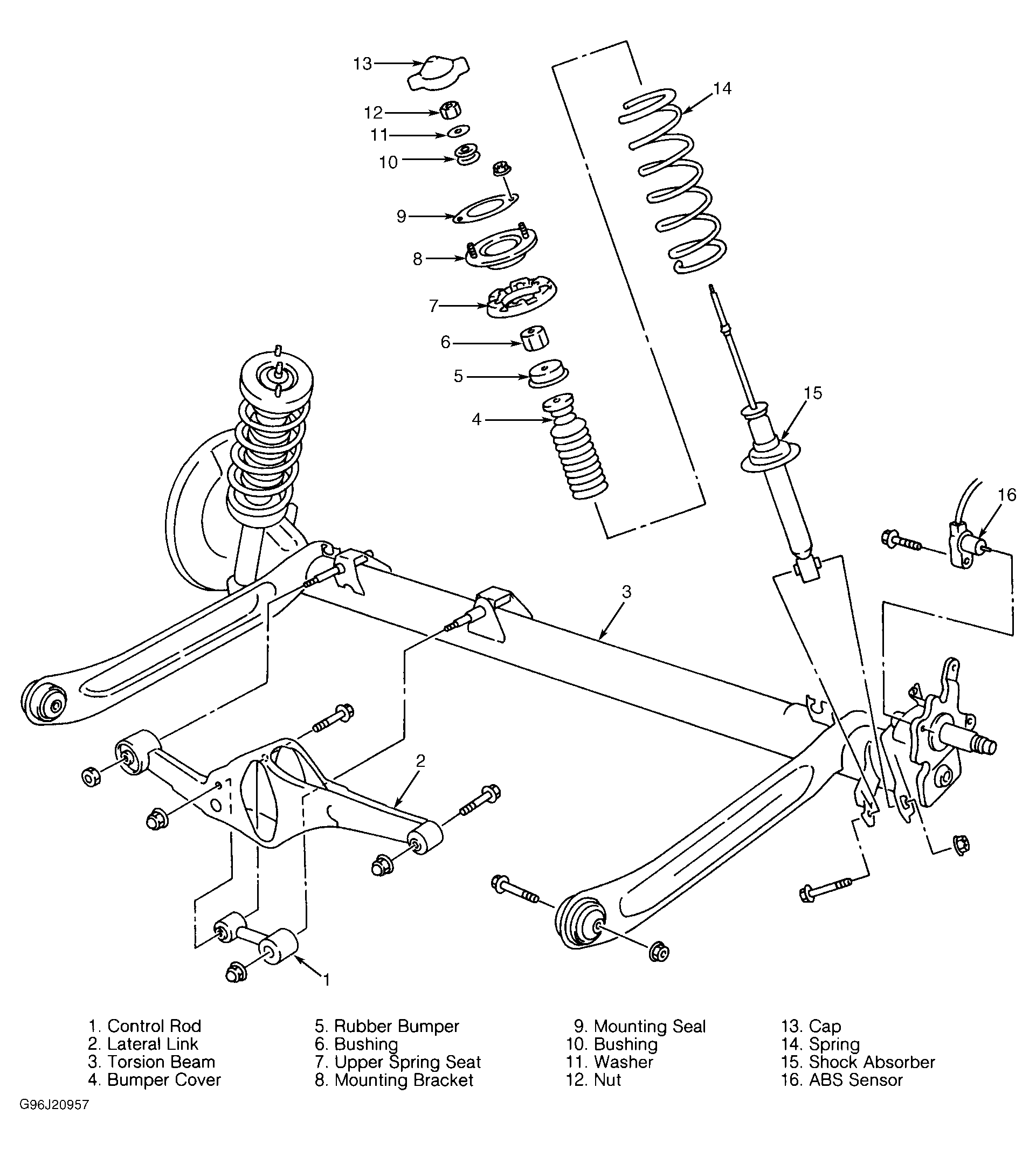

Rear Suspension System Exploded View (I30)
Rear Suspension System Exploded View (I30)
Fig 1: Exploded View Of Rear Suspension (I30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
