Rear Suspension - I30, J30 & Q45: Description: Notes

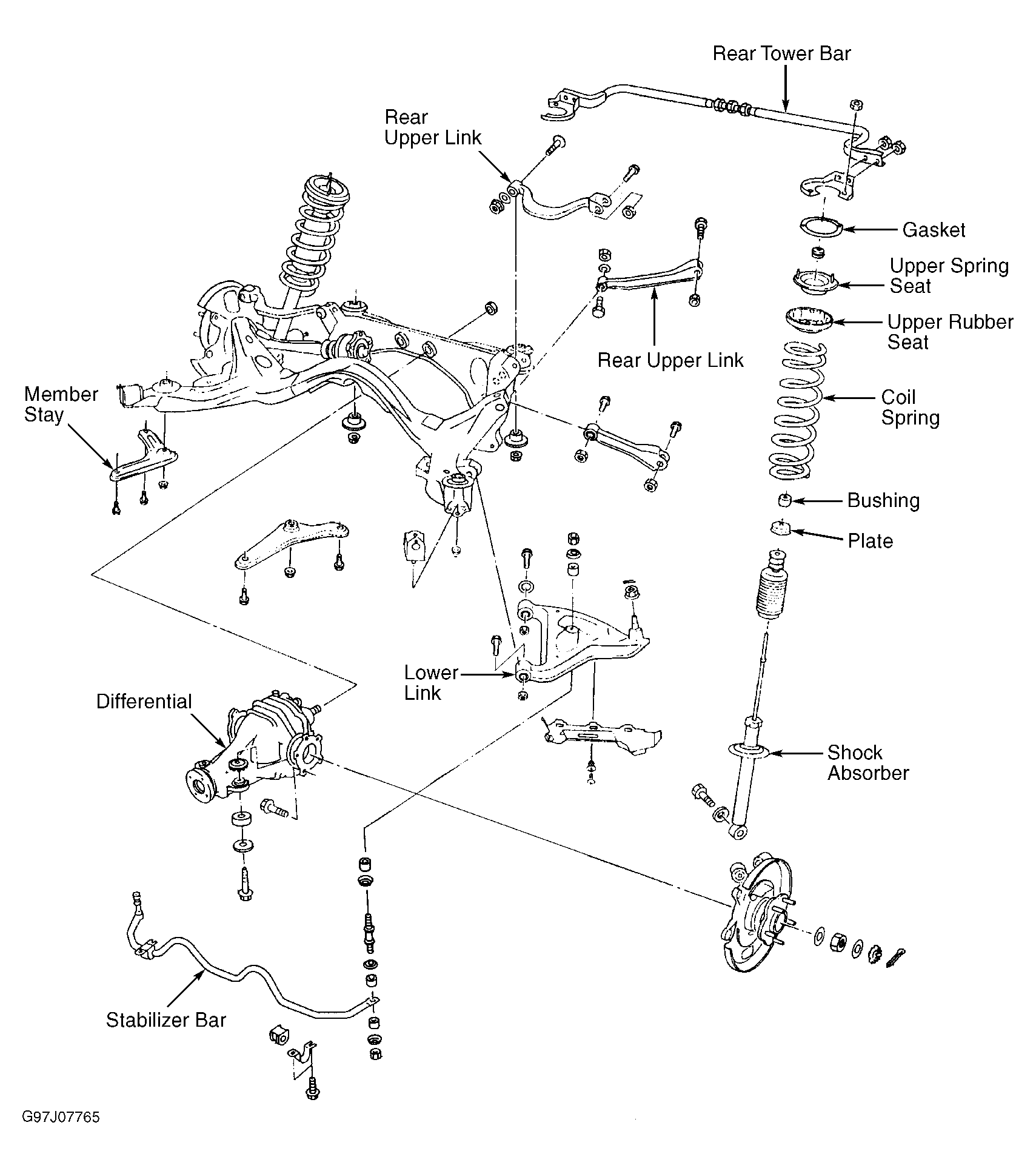

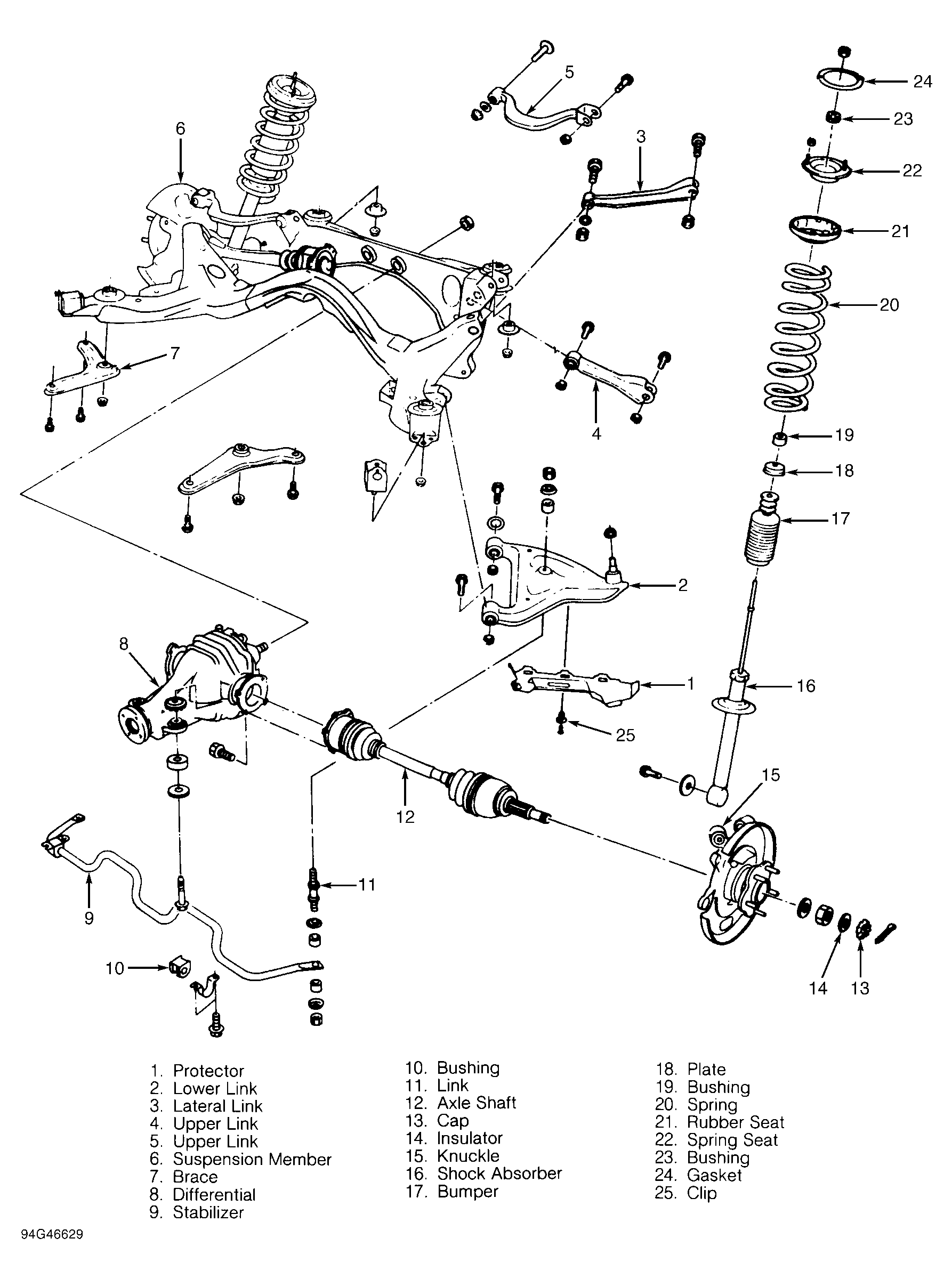

I30 uses an independent multi-beam suspension system. J30 uses an independent multi-link suspension system with stabilizer bar. Q45 uses an independent multi-link suspension system with coil springs. See Figure, Figure or Figure.
