Mechanical Clutch Control

  1. Free play is adjusted at release lever end of clutch cable. Apply hand pressure to release lever to remove free play. Tighten adjusting nut.
  2. Back adjusting nut off approximately 2.5-3.5 turns. Free play at release arm clevis pin should be .098-.138" (2.5-3.5 mm). Free play at clutch pedal pad should be .425-.594" (10.8-15.1 mm). See Fig 1 .

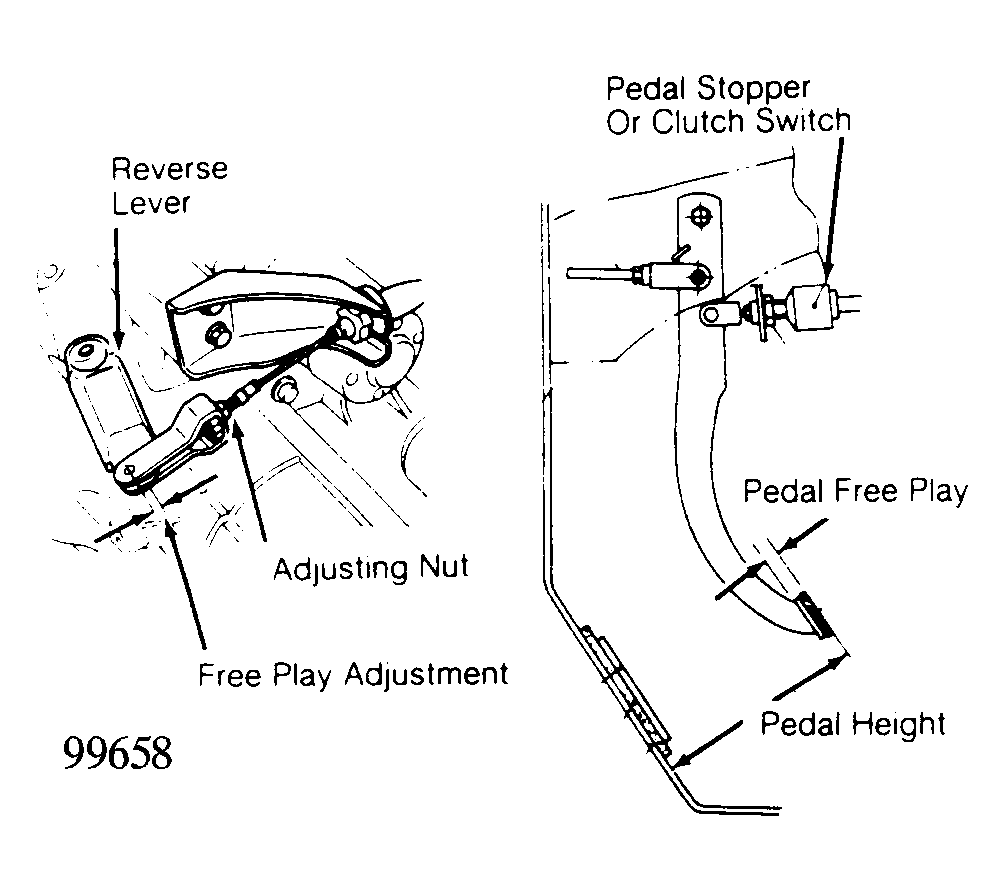

Fig 1: Adjusting Clutch Pedal
G99658Courtesy of NISSAN MOTOR CO., U.S.A.
