Output Shaft & Gear, Idler Gear, Reduction Gear & Bearing Retainer: Disassembly

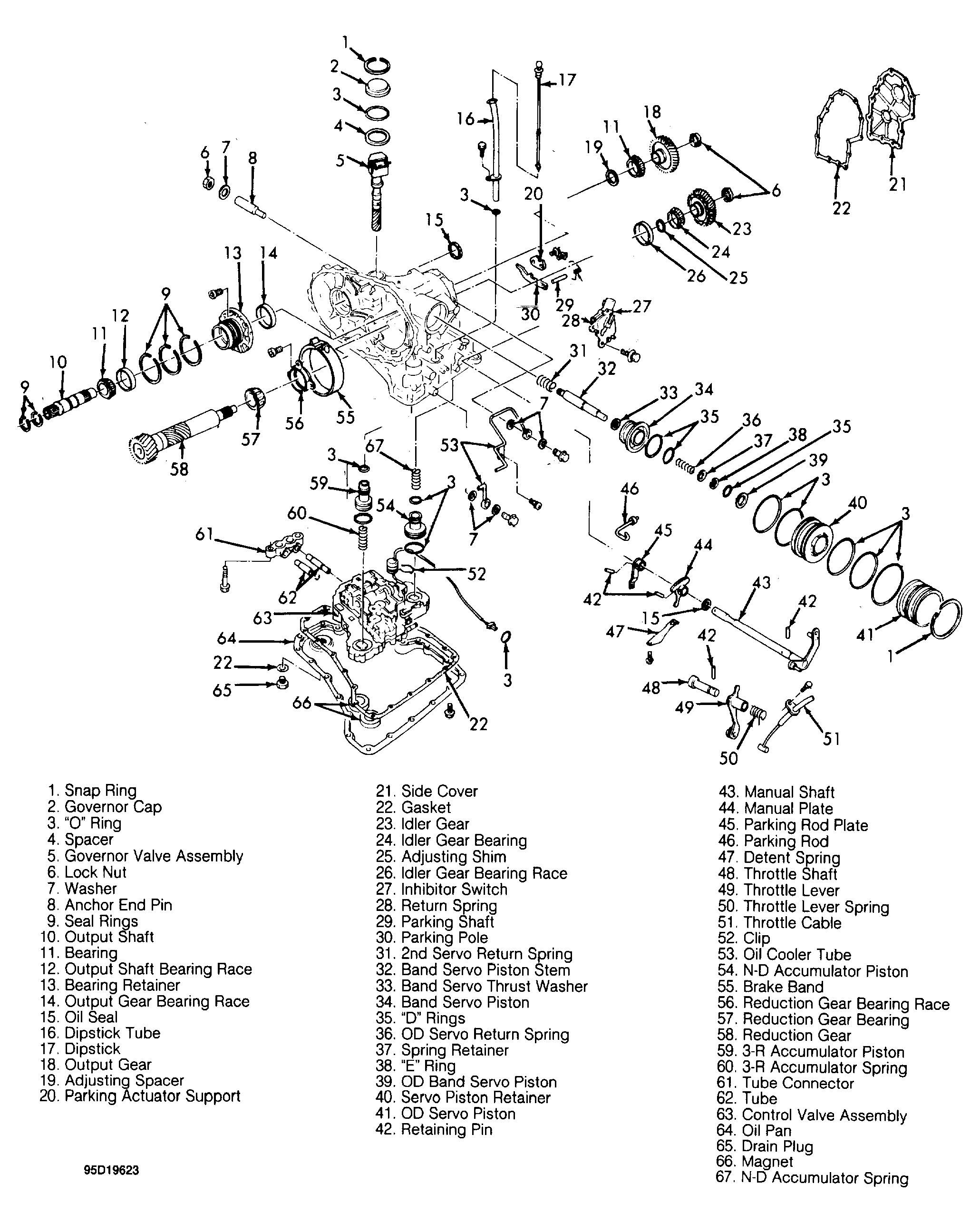

Remove seal rings from output shaft and bearing retainer. See Figure . Using appropriate press and adapter, press off output shaft bearing. Using appropriate puller, remove output shaft bearing race from bearing retainer. Using appropriate puller and drift, remove output gear bearing.
Using appropriate puller and drift, remove idler gear bearing from idler gear. Using appropriate puller, remove idler gear bearing race from transaxle case. Using press and adapter, press reduction gear bearing from reduction gear. Remove 4 bolts and remove reduction gear bearing race from transaxle case. See Figure .
