Engine Compartment Relays (Right FENDERWELL) (1993.5-94)

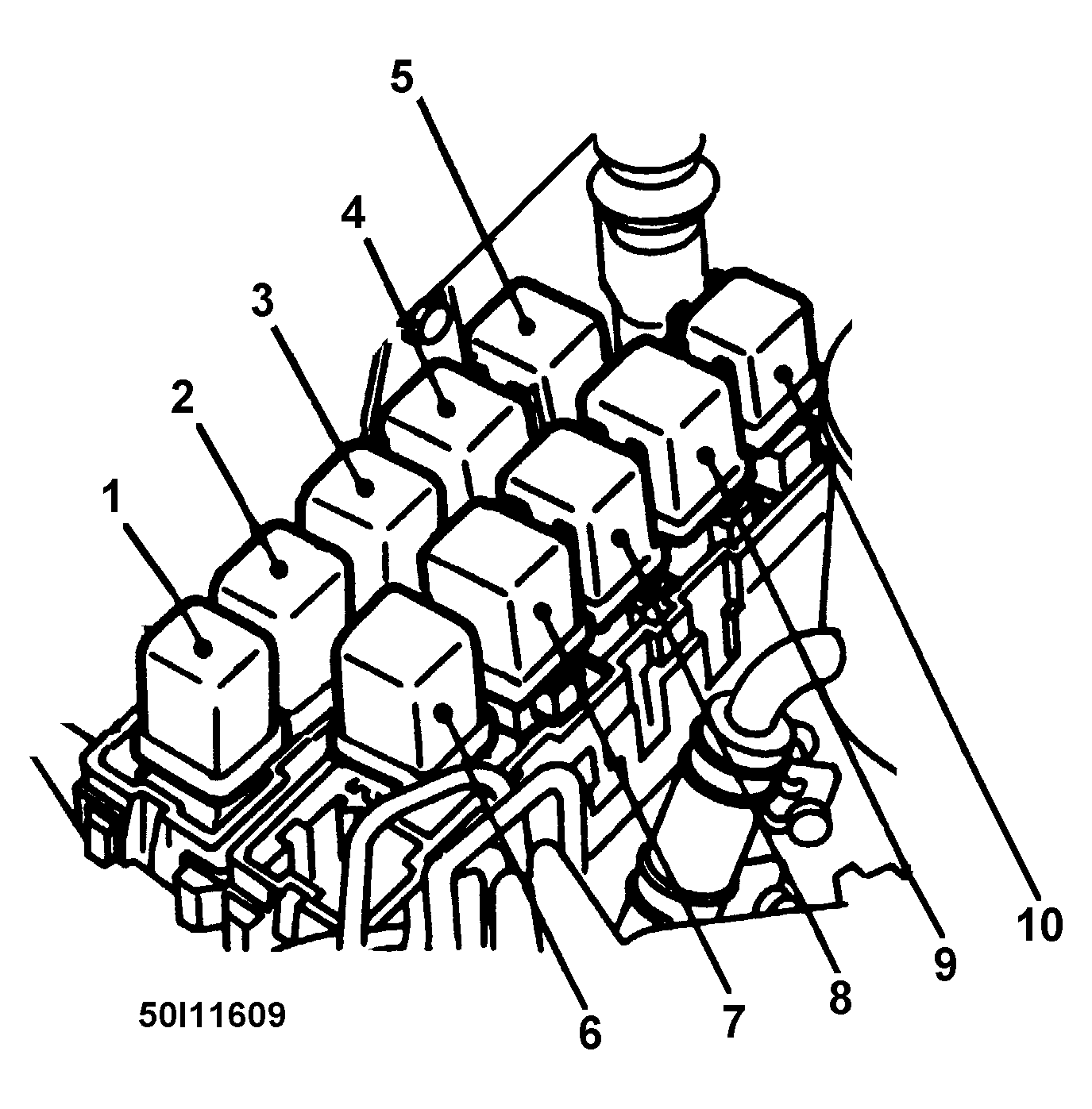

Fig 1: Engine Compartment Relays (Right Fenderwell) (1993.5-94)

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

• 1 - Brown  Radiator Ran Relay - 3
• 2 - Brown  Horn Relay - 2
• 3 - Blue (M/T)
• 3 - Brown (A/T)  Radiator Fan Relay
• 4 - Blue  Automatic Speed Control Device Hold Relay (ASCD)
• 5 - Blue  Front Foglight Relay
• 6 - Blue  Air Conditioner Relay
• 7 - Blue  Daytime Light Relay (Canada)
• 8 - Blue  Heated Mirror Relay
• 9 - Brown  Theft Warning Relay - 1
• 10 - Gray  Horn Relay
