Removal & Installation (M30 & Q45)

  1. Remove rear disc mounting bolts. Remove disc rotor. If rotor is difficult to remove, install 2 bolts in face of parking brake drum. Twist screws in until rotor comes off. Remove brake shoe retainers, and pull shoes outward.
  2. Remove return springs. See Fig 1 or Fig 2 . Remove adjuster and strut. Disconnect parking brake cable from toggle lever. Remove retainer ring. Separate toggle lever and brake shoe. Before installation, apply grease to brake shoe contact area of backing plate. To install, reverse removal procedure.

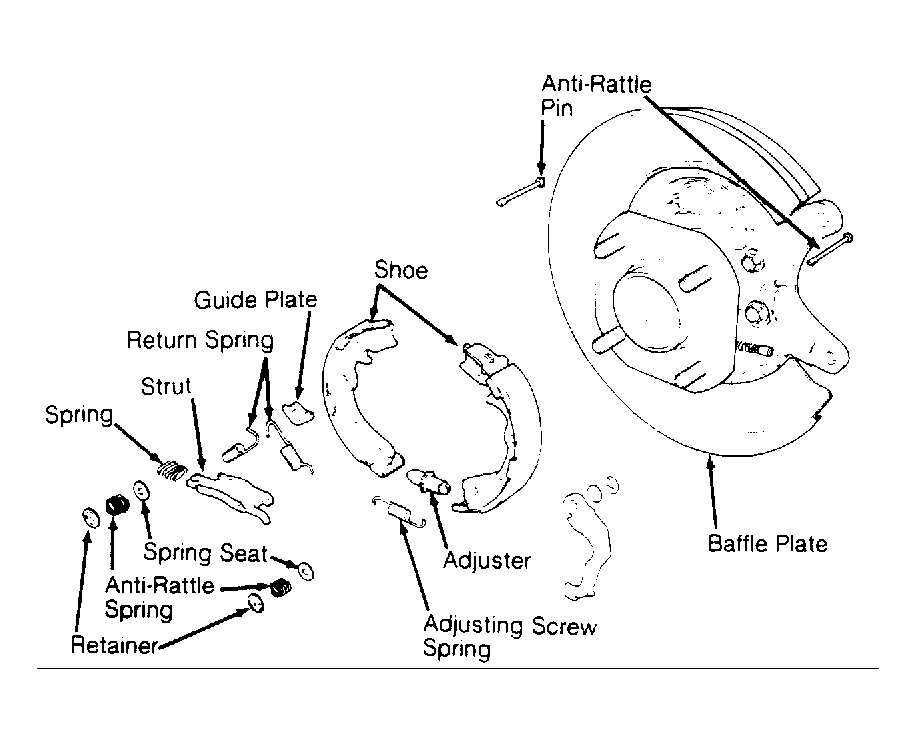

Fig 1: Exploded View of Parking Brake Shoe Assembly (M30)
G91F01139Courtesy of NISSAN MOTOR CO., U.S.A.

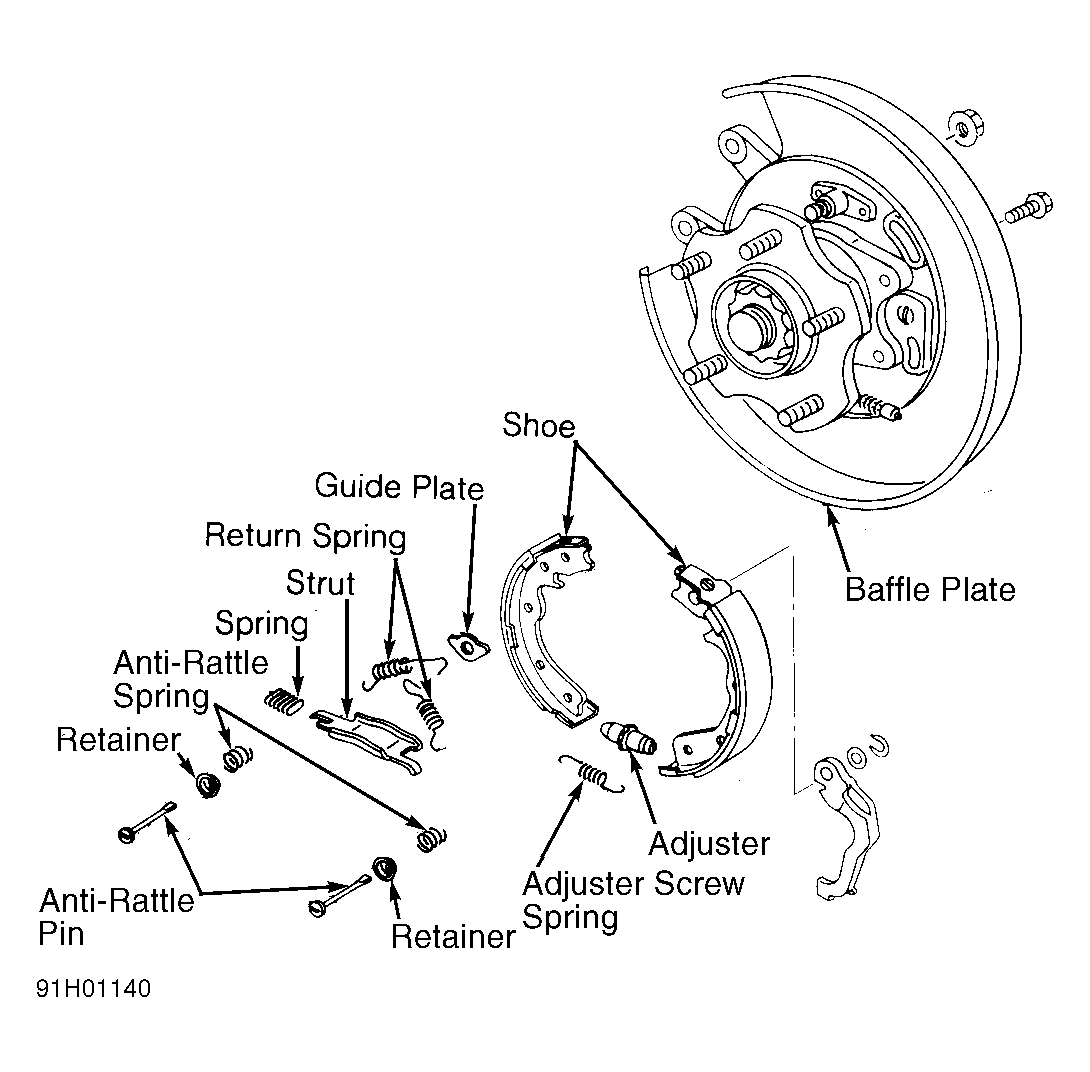

Fig 2: Exploded View of Parking Brake Shoe Assembly (Q45)
G91H01140Courtesy of NISSAN MOTOR CO., U.S.A.
