Diagnostic Procedure Charts (Q45)

For component locations and wiring schematics of Anti-Lock Brake System (ABS), see Figure through Figure . For ground check, see Fig 1 . For diagnostic procedures No. 1-11, see Fig 2 through Figure . For electronic components check, see Fig 13 .

NOTE: For additional wiring diagrams, see Figure through Figure at end of article and appropriate chassis wiring diagrams in WIRING DIAGRAMS.

Fig 1: ABS Ground Circuit Check (Q45)

G93B00795

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: ABS Diagnostic Procedure No. 1 (Q45)

G93C00796

Courtesy of NISSAN MOTOR CO., U.S.A.

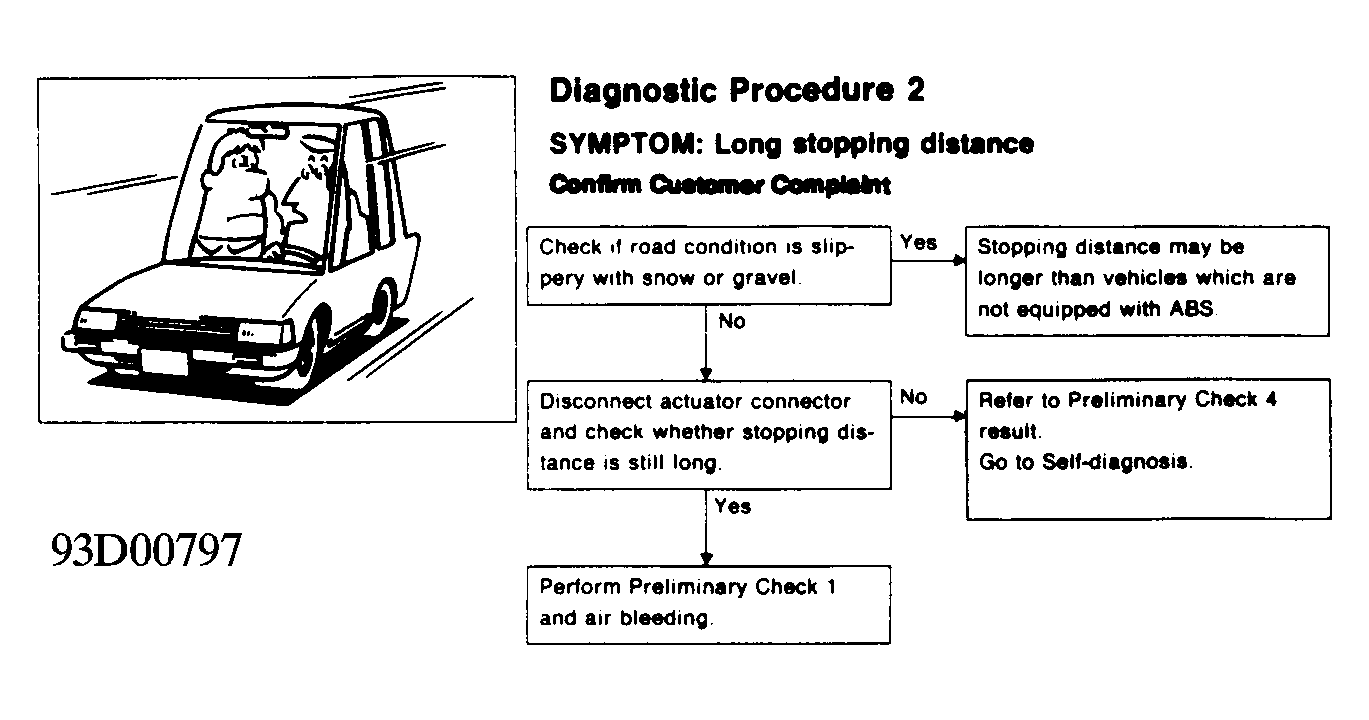

Fig 3: ABS Diagnostic Procedure No. 2 (Q45)

G93D00797

Courtesy of NISSAN MOTOR CO., U.S.A.

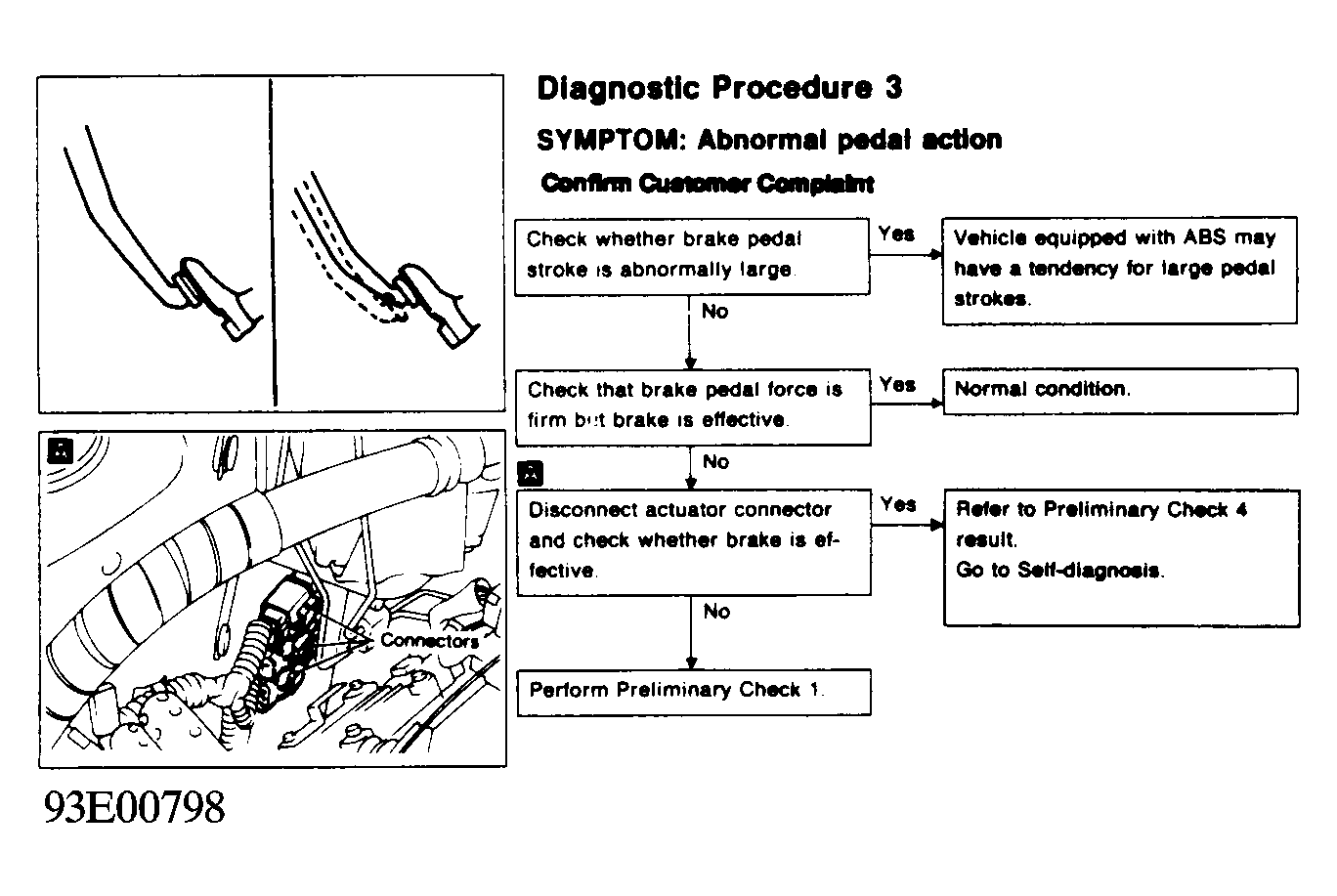

Fig 4: ABS Diagnostic Procedure No. 3 (Q45)

G93E00798

Courtesy of NISSAN MOTOR CO., U.S.A.

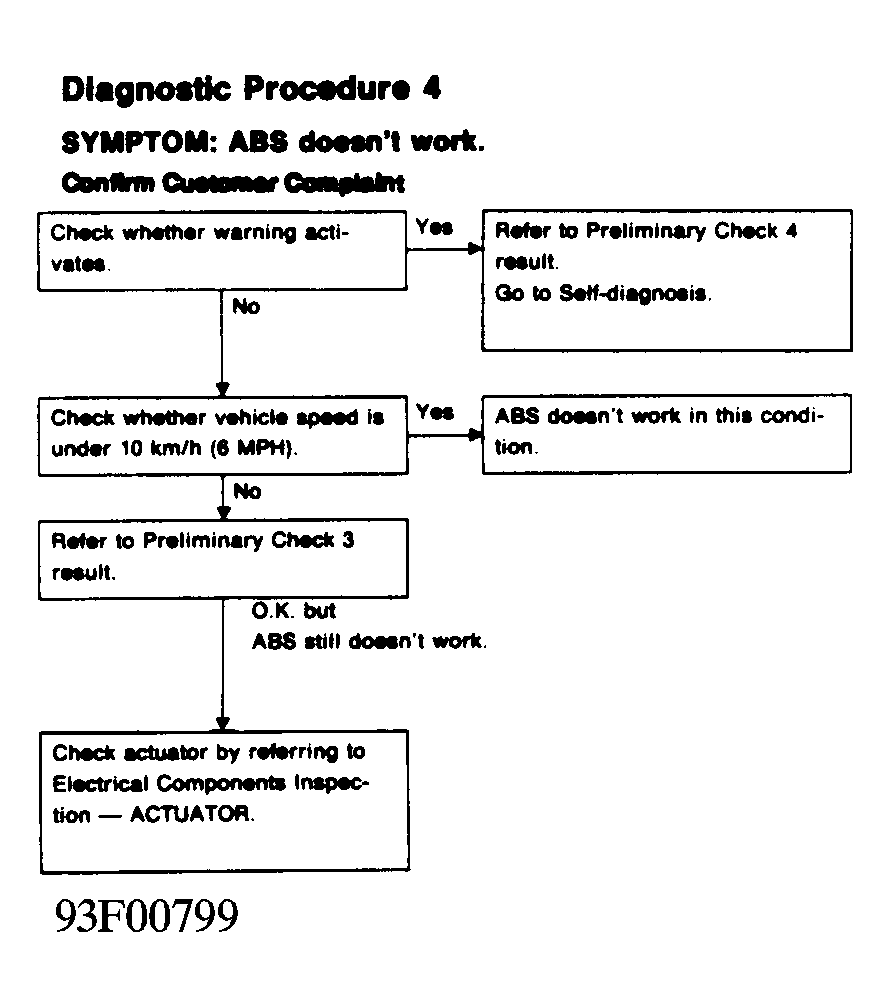

Fig 5: ABS Diagnostic Procedure No. 4 (Q45)

G93F00799

Courtesy of NISSAN MOTOR CO., U.S.A.

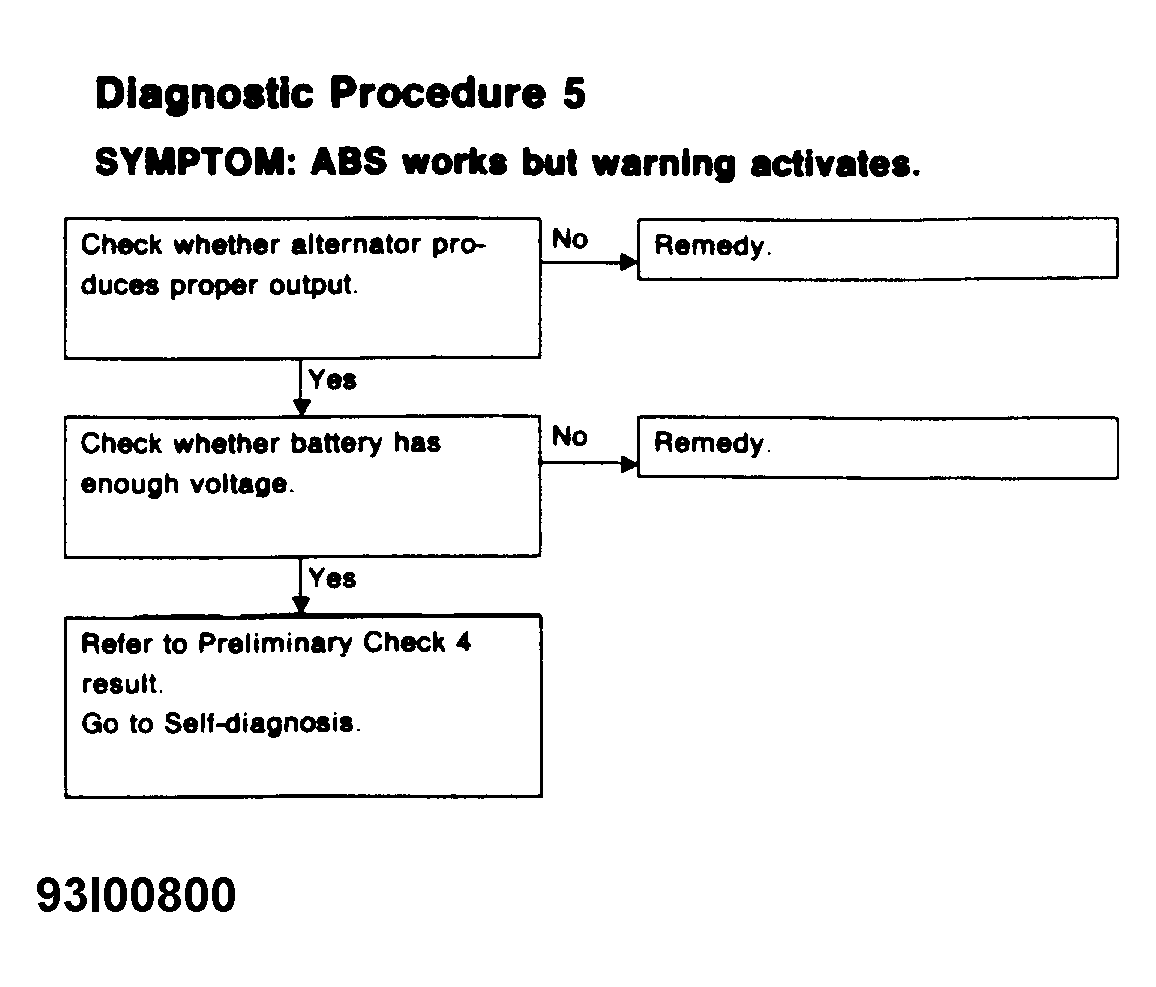

Fig 6: ABS Diagnostic Procedure No. 5 (Q45)

G93I00800

Courtesy of NISSAN MOTOR CO., U.S.A.

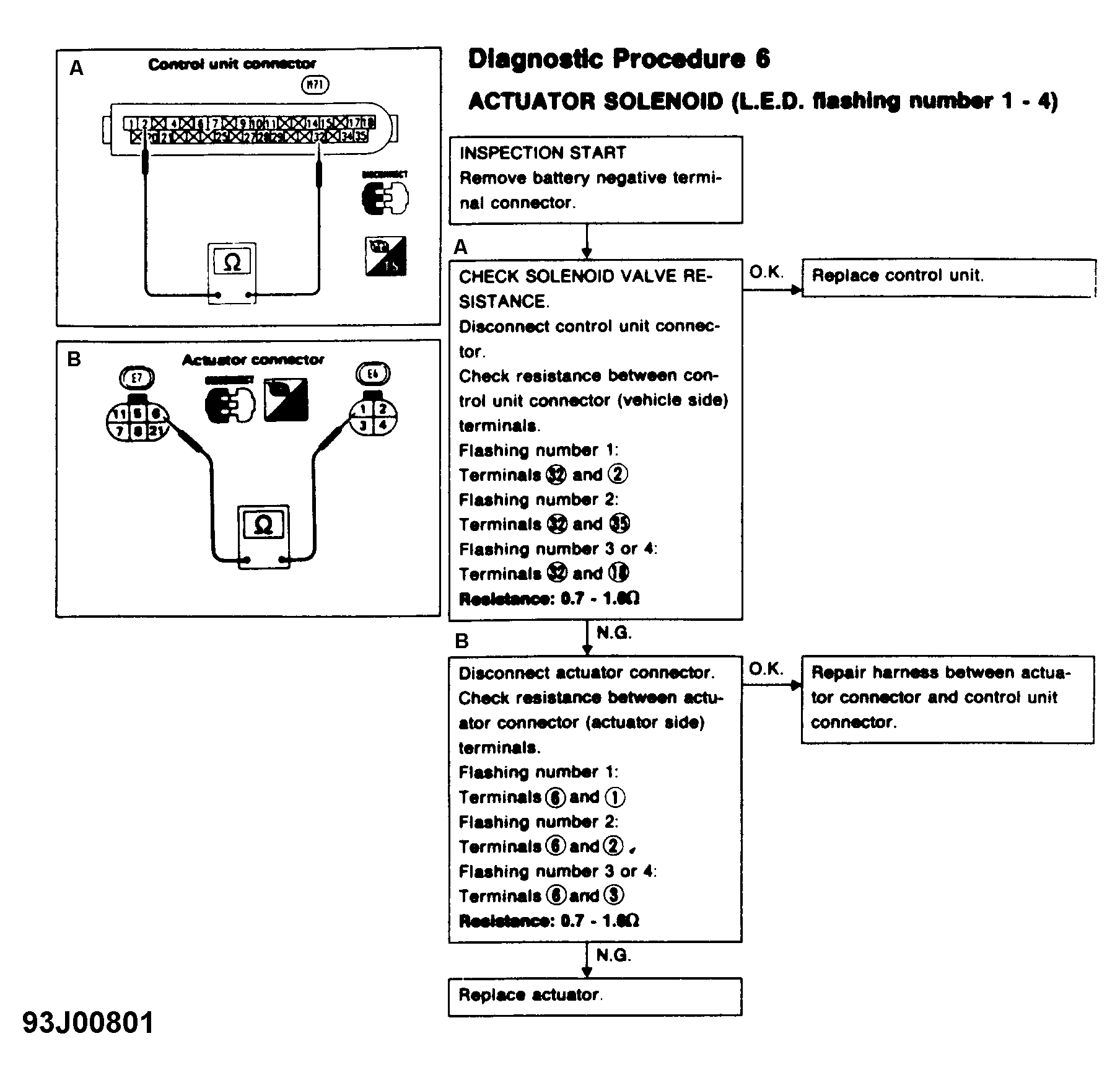

Fig 7: ABS Diagnostic Procedure No. 6 (Q45)

G93J00801

Courtesy of NISSAN MOTOR CO., U.S.A.

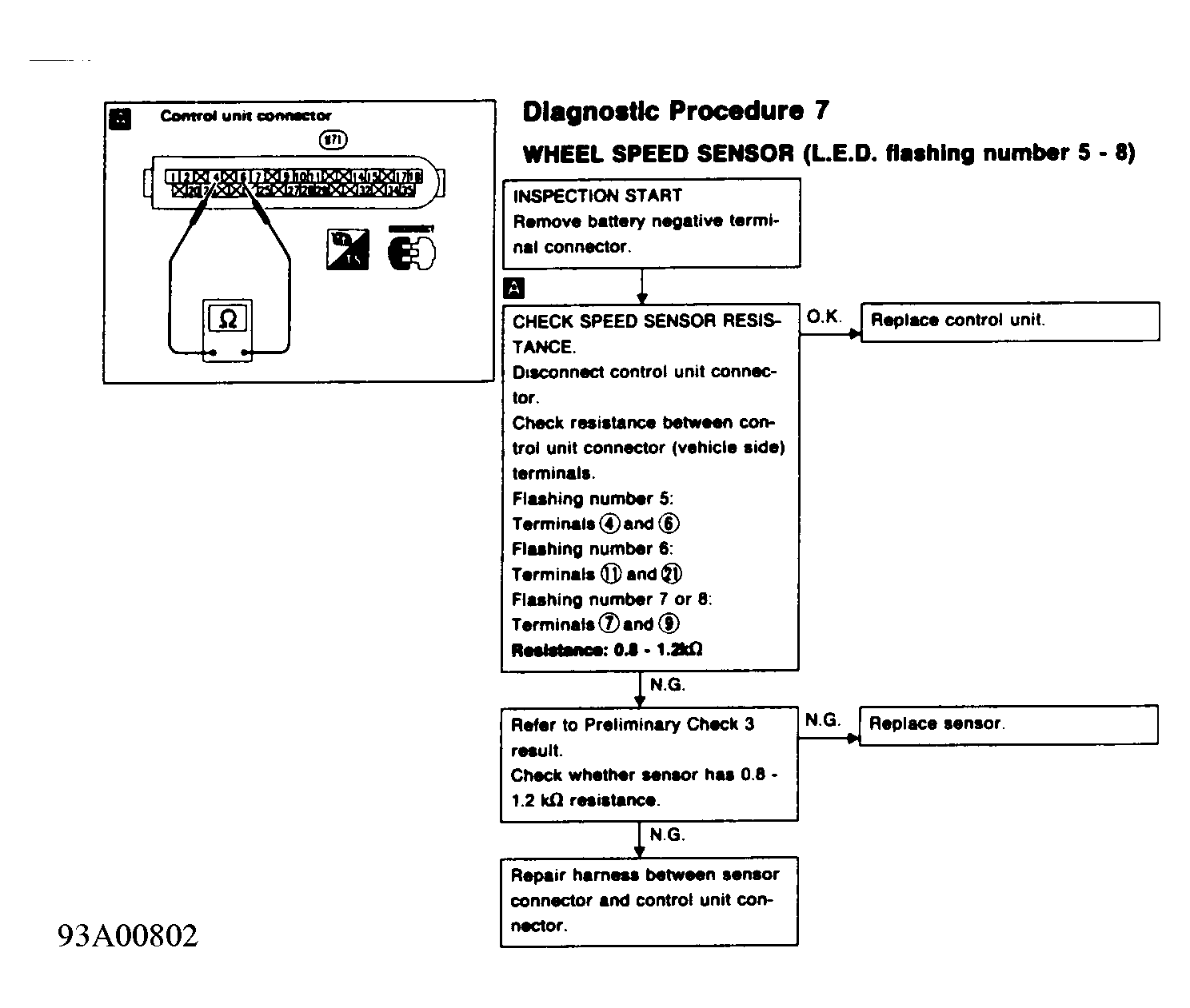

Fig 8: ABS Diagnostic Procedure No. 7 (Q45)

G93A00802

Courtesy of NISSAN MOTOR CO., U.S.A.

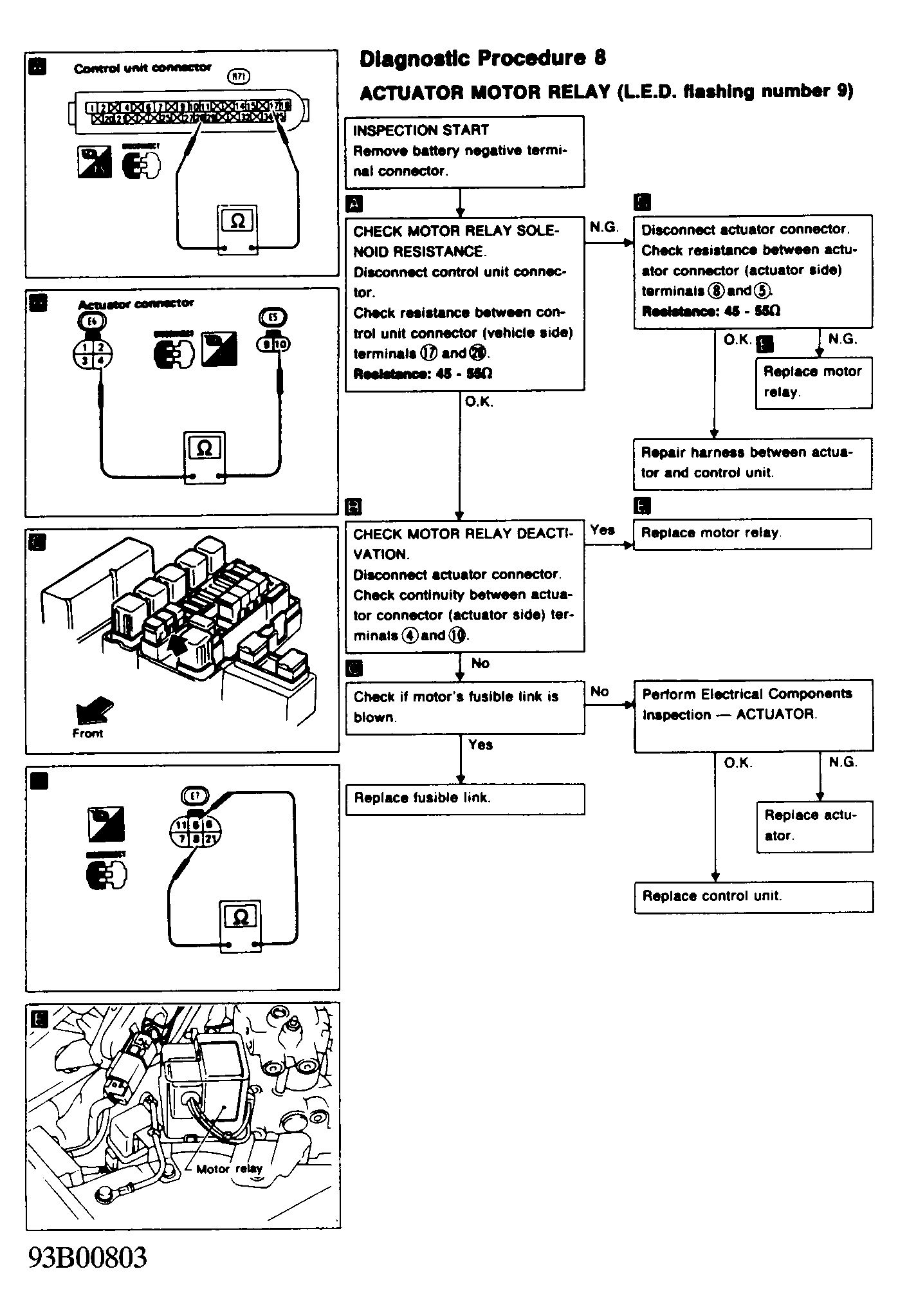

Fig 9: ABS Diagnostic Procedure No. 8 (Q45)

G93B00803

Courtesy of NISSAN MOTOR CO., U.S.A.

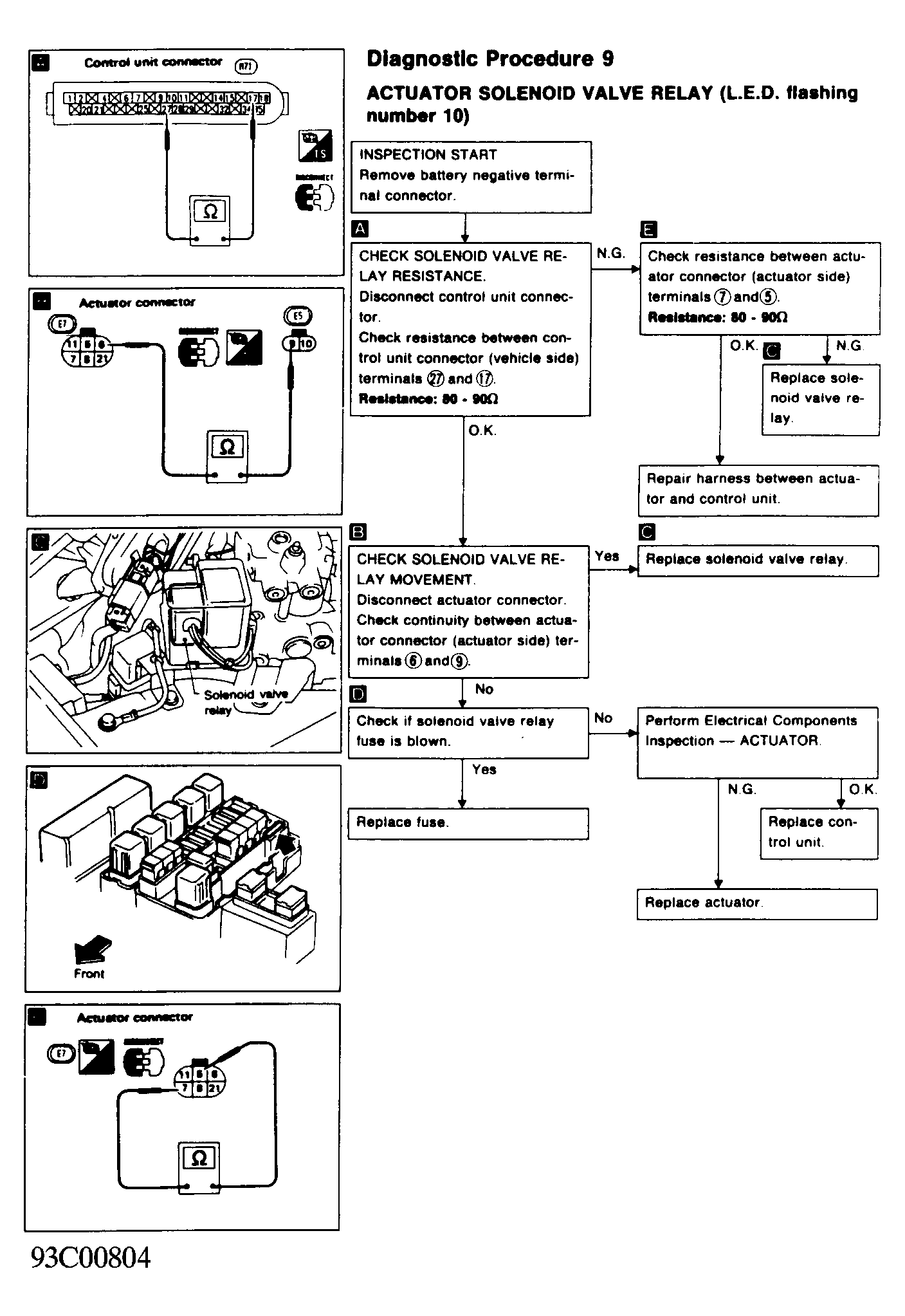

Fig 10: ABS Diagnostic Procedure No. 9 (Q45)

G93C00804

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: ABS Diagnostic Procedure No. 10 (Q45)

G93D00805

Courtesy of NISSAN MOTOR CO., U.S.A.

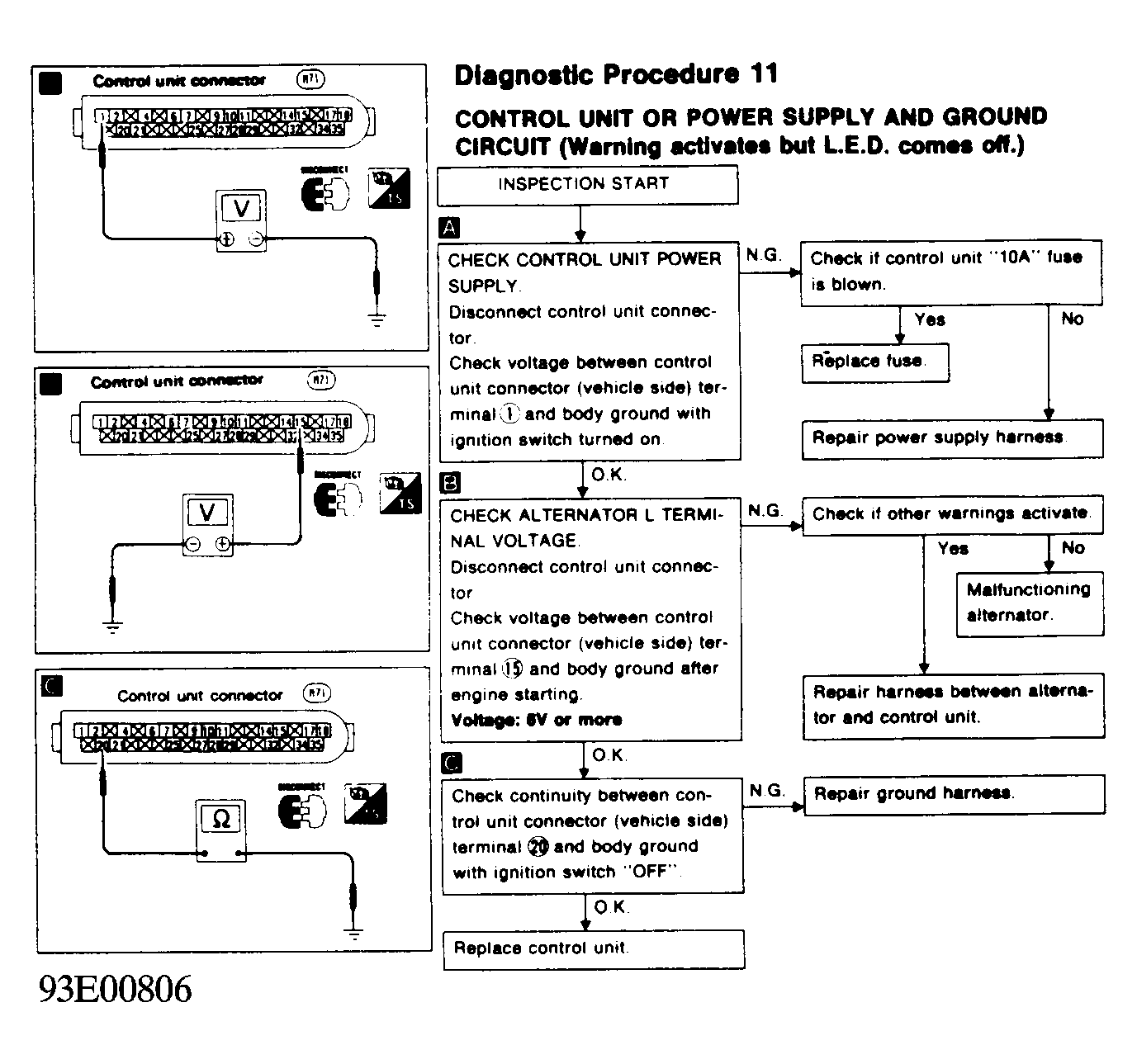

Fig 12: ABS Diagnostic Procedure No. 11 (Q45)

G93E00806

Courtesy of NISSAN MOTOR CO., U.S.A.

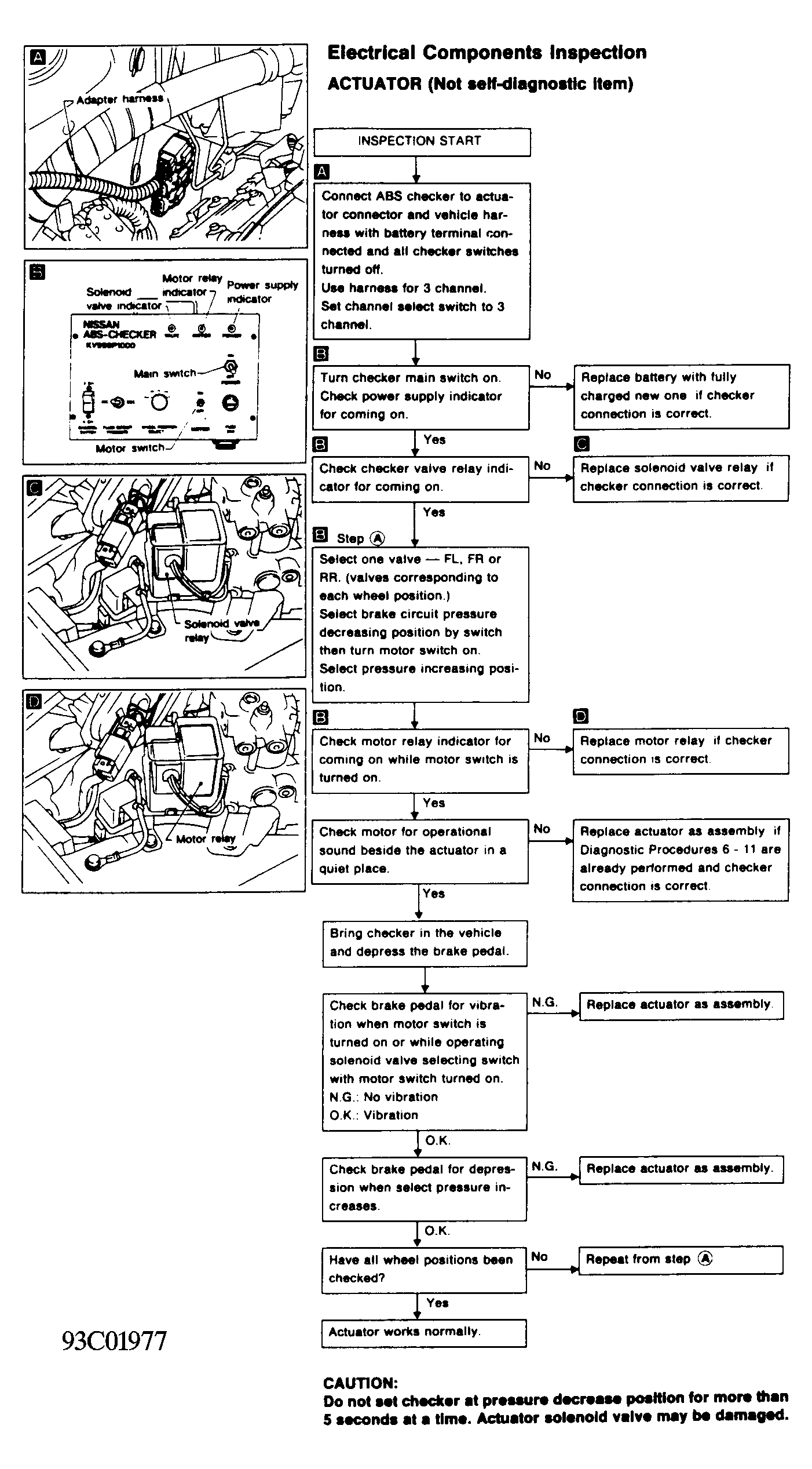

Fig 13: ABS Electrical Components Inspection (Q45)

G93C01977

Courtesy of NISSAN MOTOR CO., U.S.A.
