Diagnosing By Symptoms

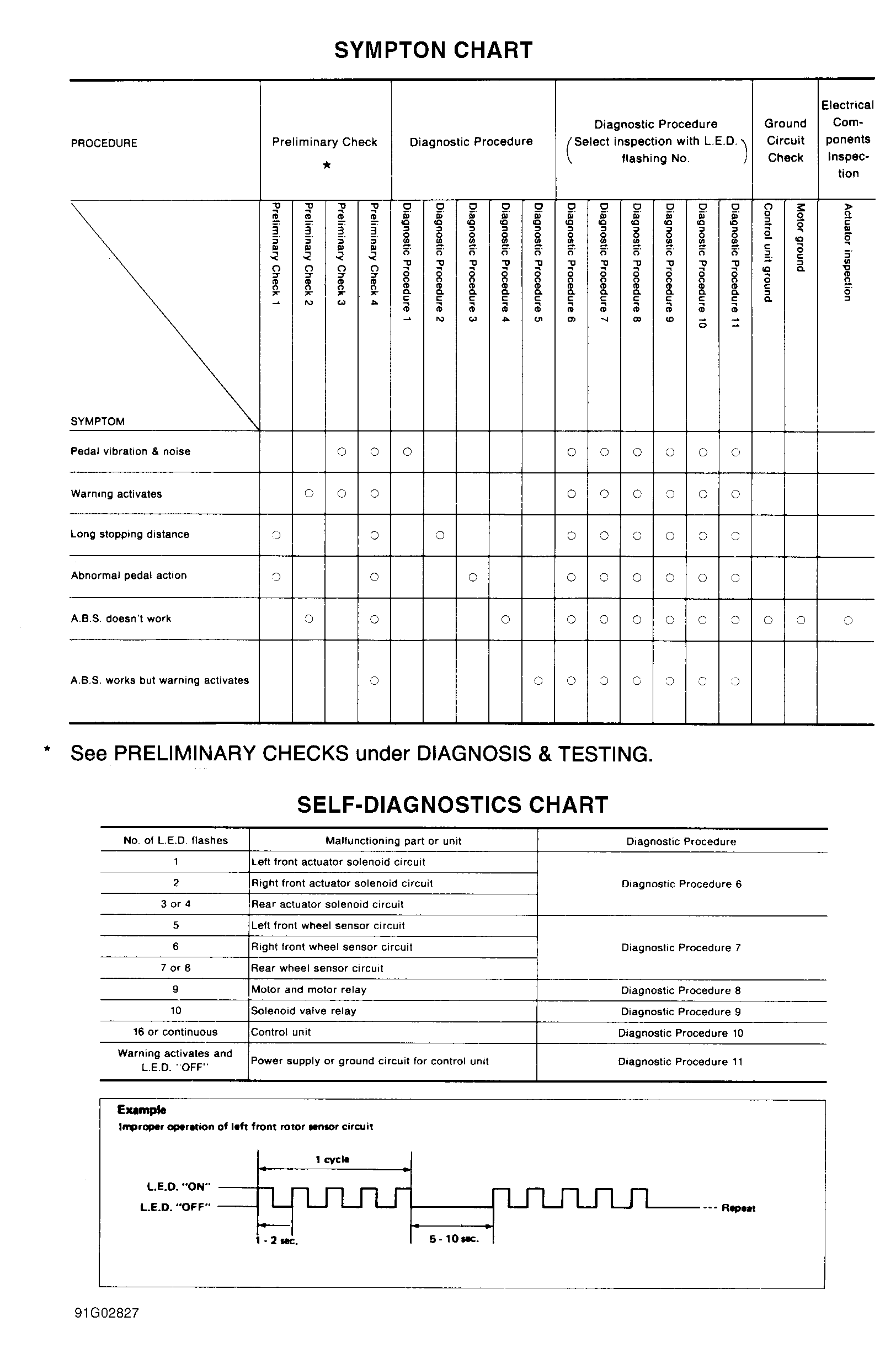

To diagnose Anti-Lock Brake System (ABS) by symptom, refer to appropriate SYMPTOM CHART. See Fig 1 or Figure . Chart will indicate proper procedures to follow based on symptom observed.

NOTE: For diagnostic procedures, see appropriate DIAGNOSTIC PROCEDURES CHARTS. For preliminary check procedures, see PRELIMINARY CHECKS.

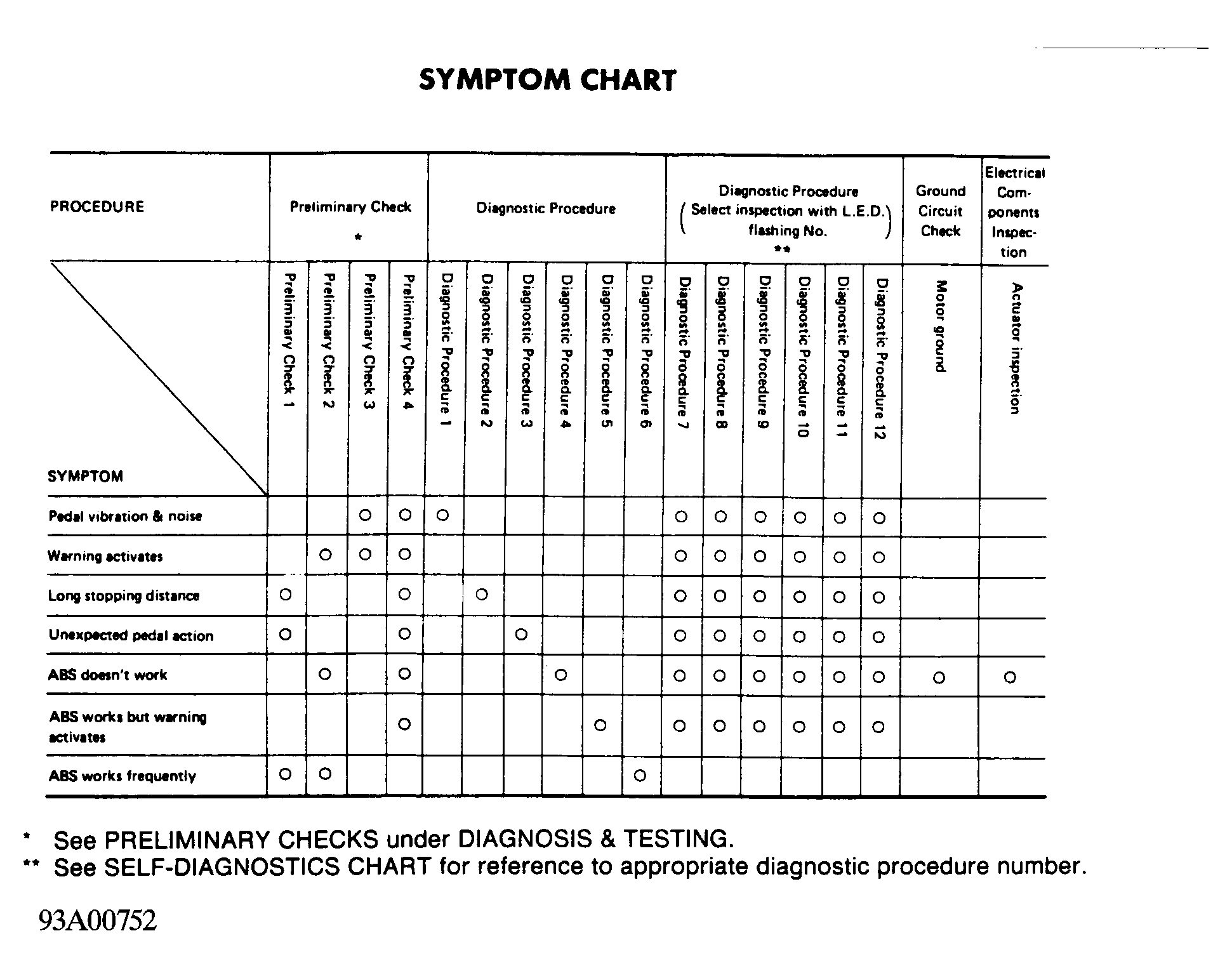

Fig 1: ABS Symptom Charts (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.
