Removal & Installation (Q45)

Remove steering wheel. See STEERING COLUMN SWITCHES article in the ACCESSORIES/SAFETY EQUIPMENT Section. Remove combination switch retaining screws and remove switch. To install reverse procedure.

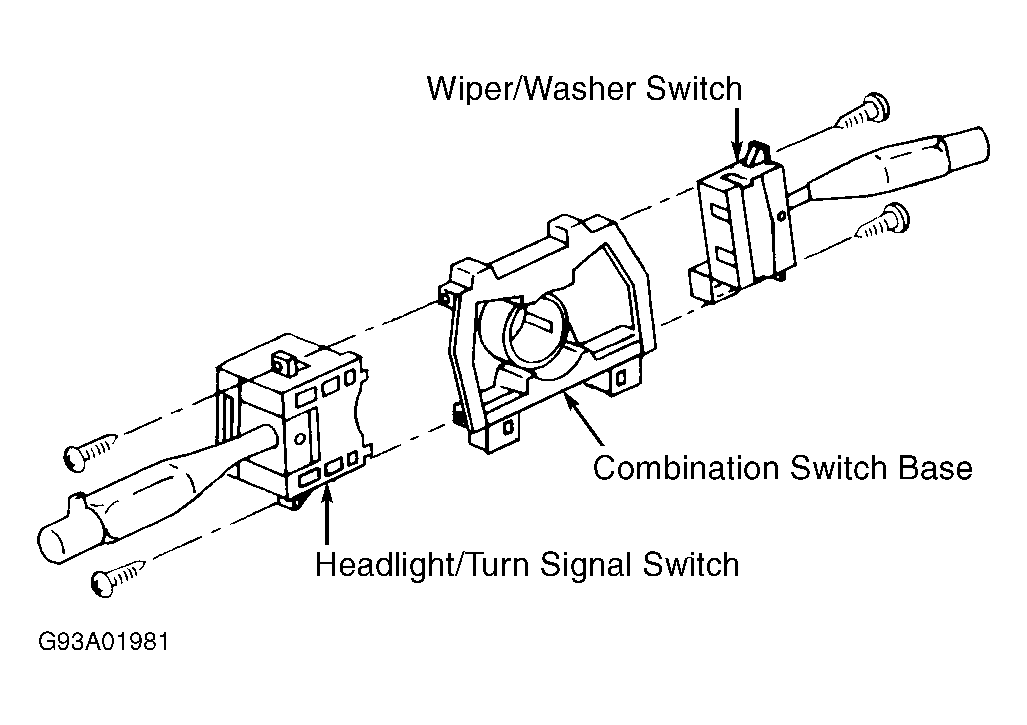

Fig 1: Combination Switch (G20 & M30)

Courtesy of NISSAN MOTOR CO., U.S.A.

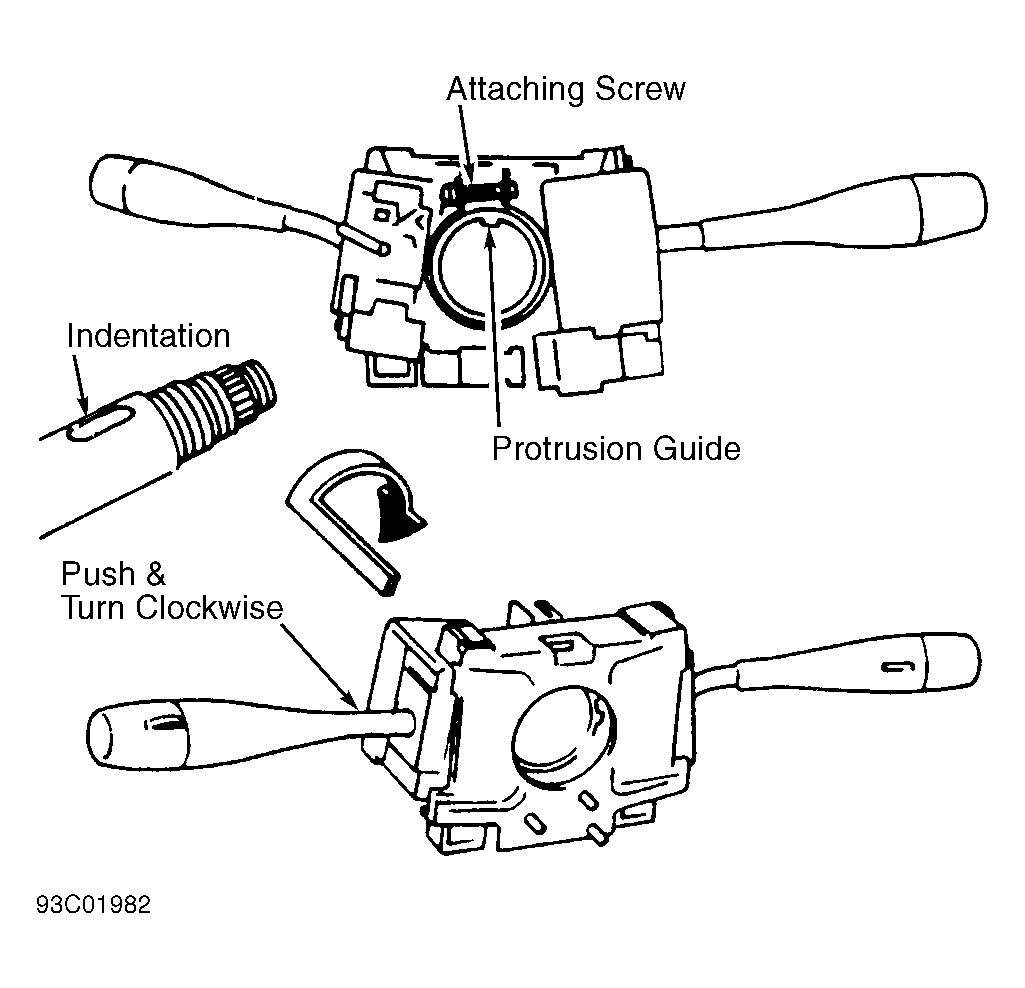

Fig 2: Combination Switch Removal & Installation (G20 & M30)

Courtesy of NISSAN MOTOR CO., U.S.A.
