Antenna Rod: Removal

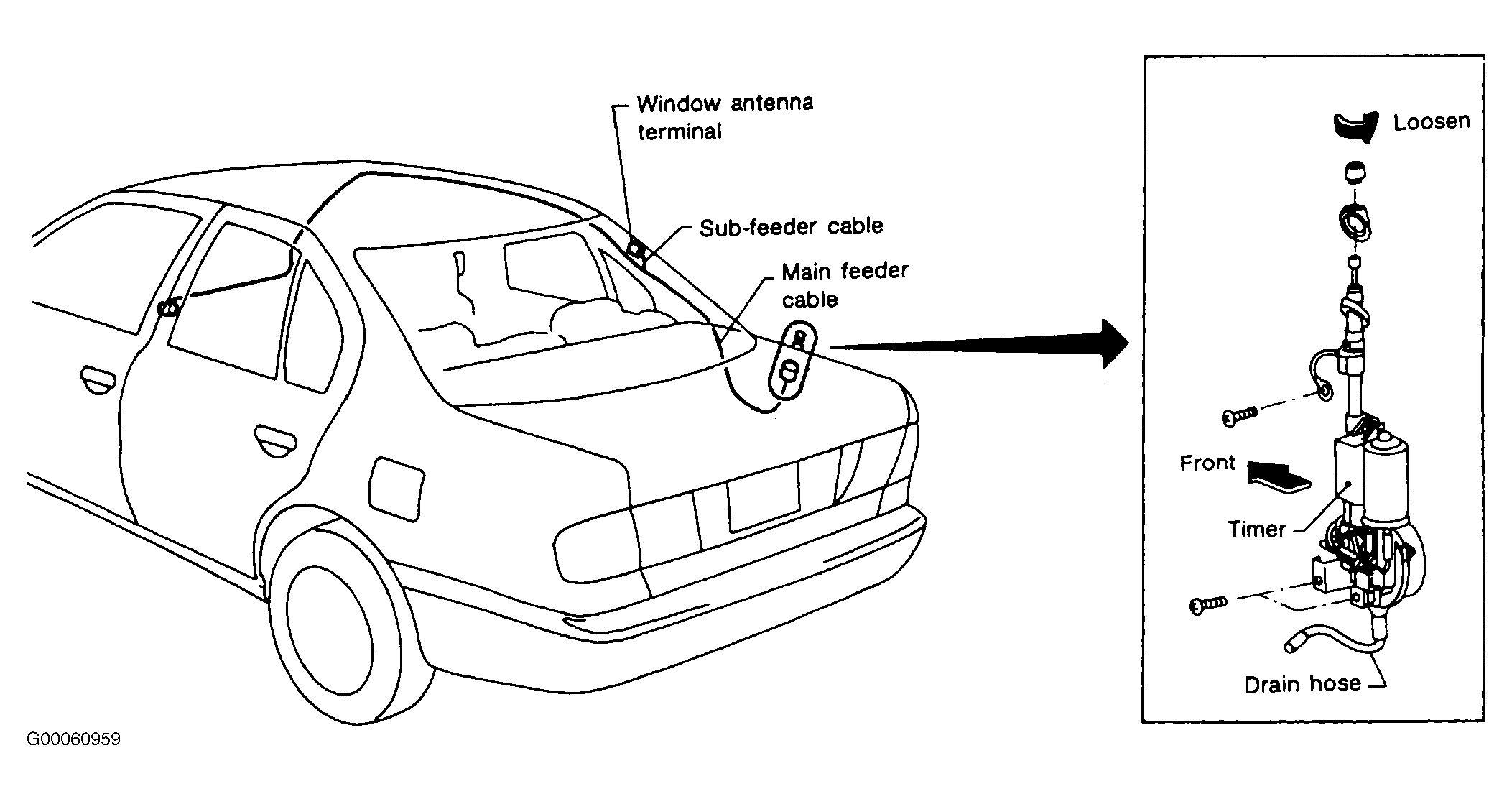

  1. Remove antenna nut and antenna base. See Figure and Fig 1 .
  2. Withdraw antenna rod while raising it by operating antenna motor. See Fig 2 .

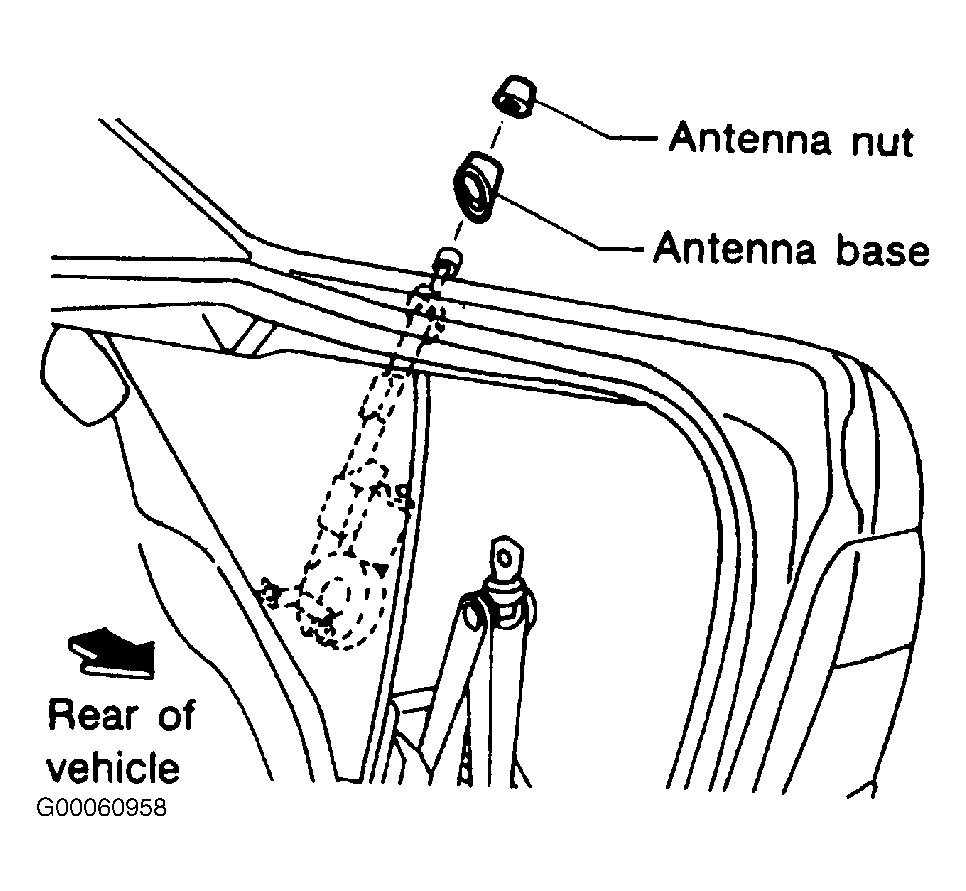

Fig 1: Removing Antenna Nut & Base
G00060958Courtesy of NISSAN MOTOR CO., U.S.A.

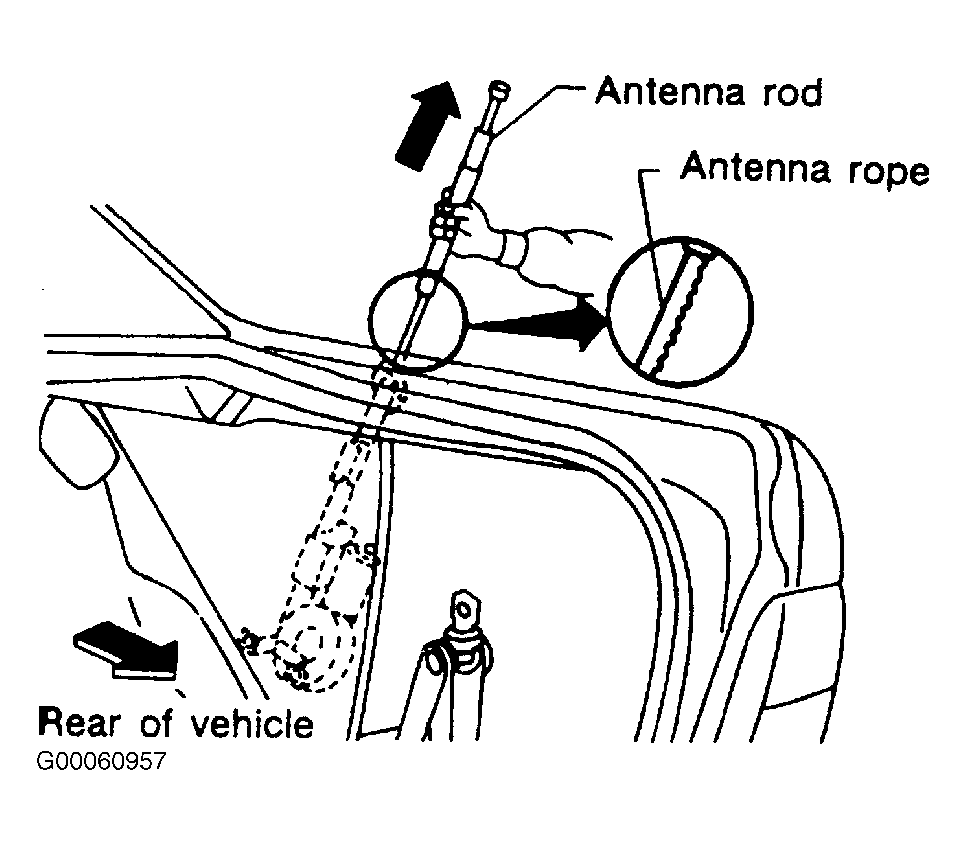

Fig 2: Removing Antenna Rod
G00060957Courtesy of NISSAN MOTOR CO., U.S.A.
