Sonar Suspension: Wiring Diagram

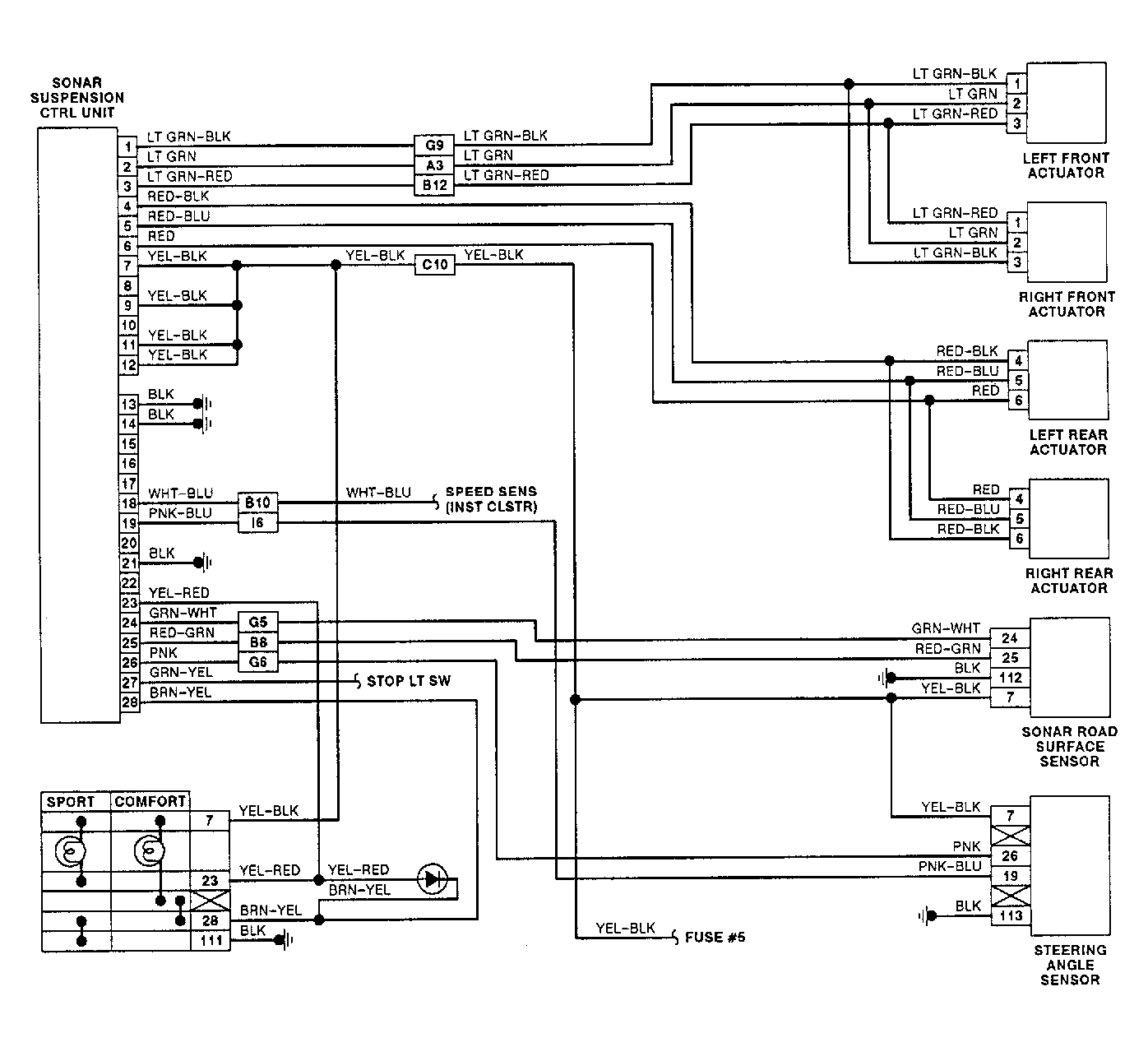

Fig 1: Sonar Suspension Wiring Diagram (M30)

G92C01784

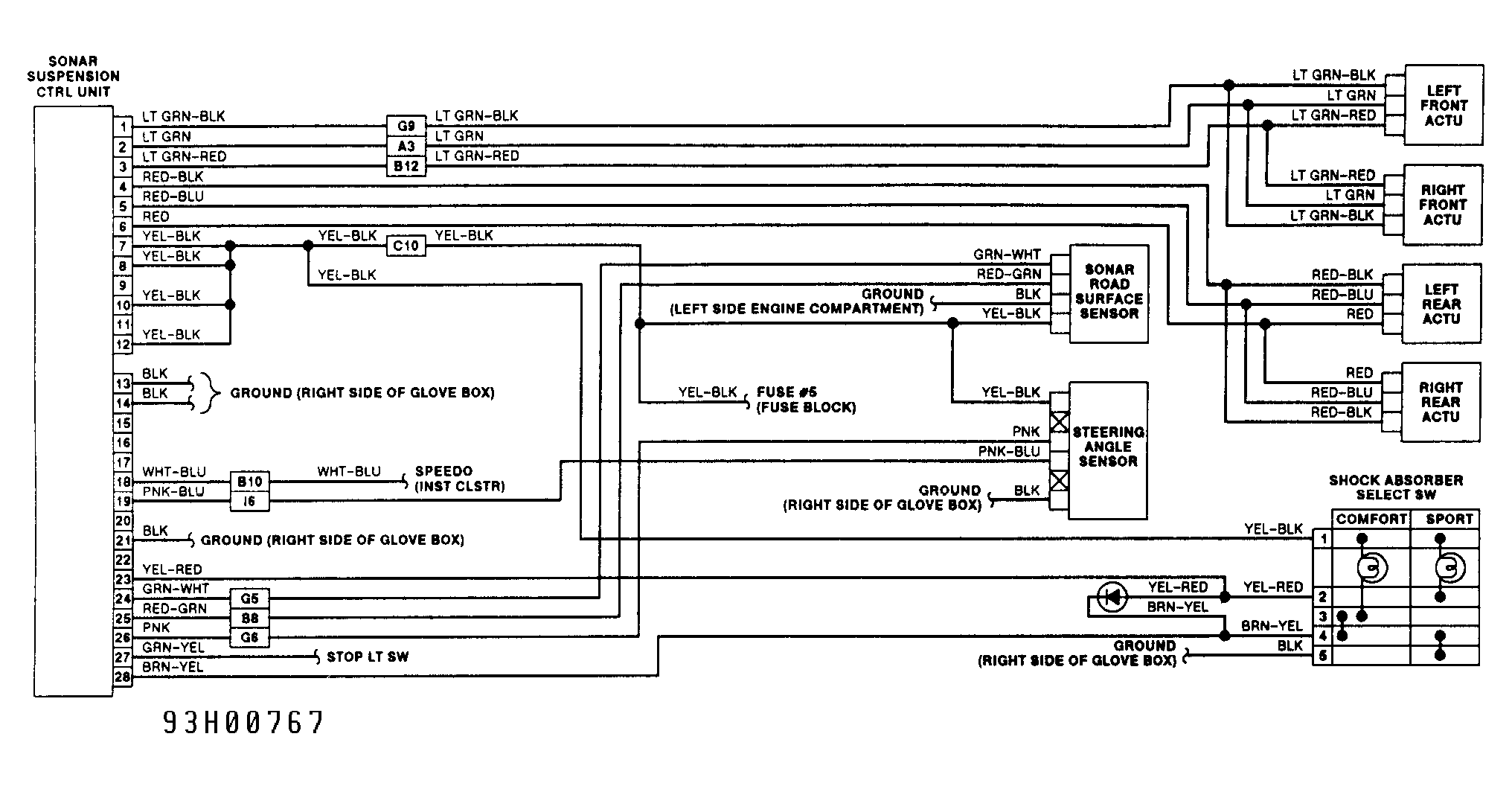

Fig 2: Sonar Suspension Wiring Diagram (1992)

G93H00767
