Self-Diagnostic Precautions

If distance from sonar road surface sensor to road surface is not within a 7.87-19.69" (200-500 mm) range, sensor will indicate a malfunction. Testing surface should be flat.
Self-diagnostic indication on shock absorber actuators shows only abnormalities of the command signal from ECU to actuators. To test electrical circuit between ECU and actuators or to test actuators, perform FINAL CONFIRMATION ON SHOCK ABSORBER ACTUATOR. See Fig 9 and Fig 10 .

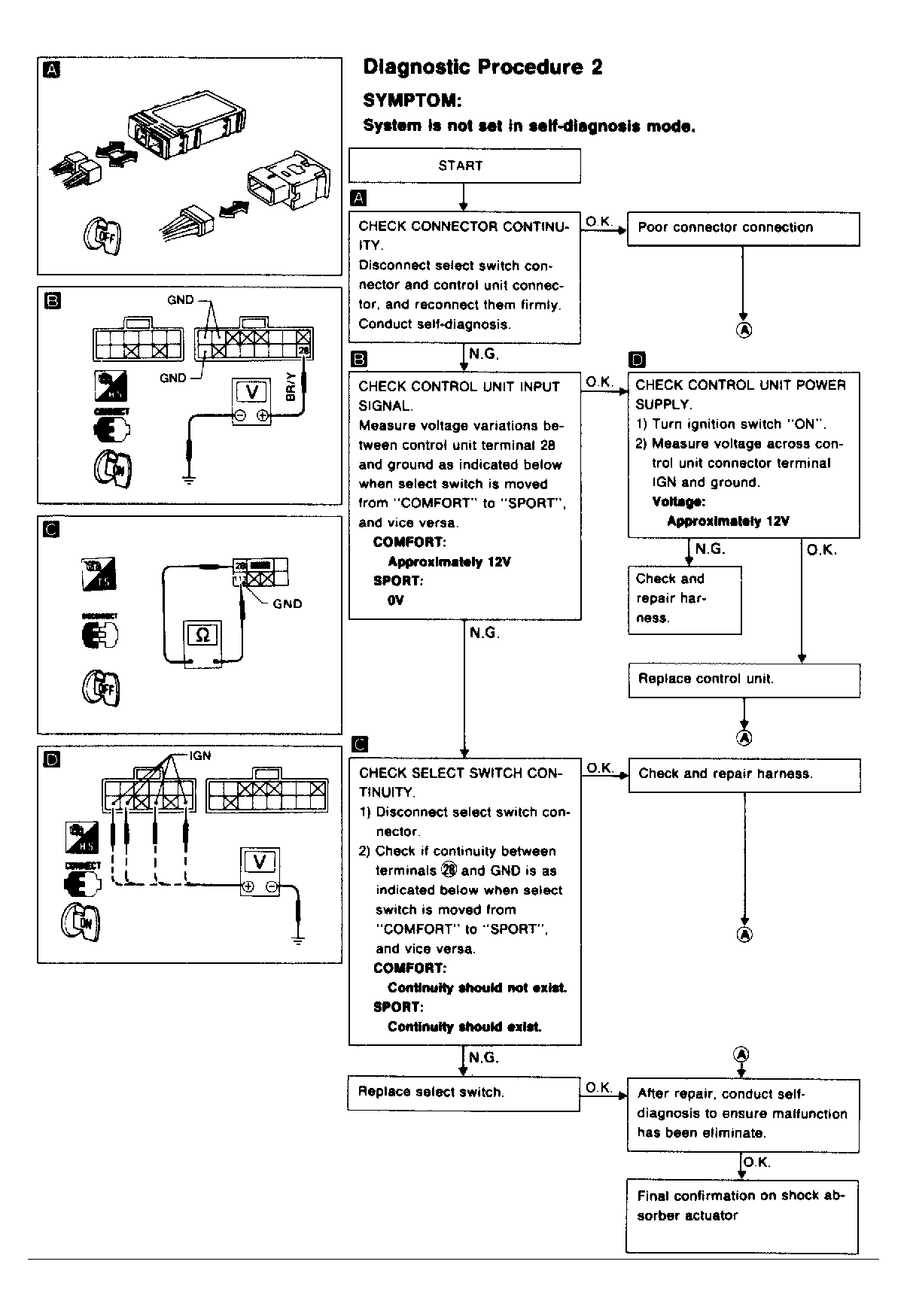

Fig 1: Sonar Suspension Diagnostic Procedure No. 2

G91F02817

Courtesy of NISSAN MOTOR CO., U.S.A.

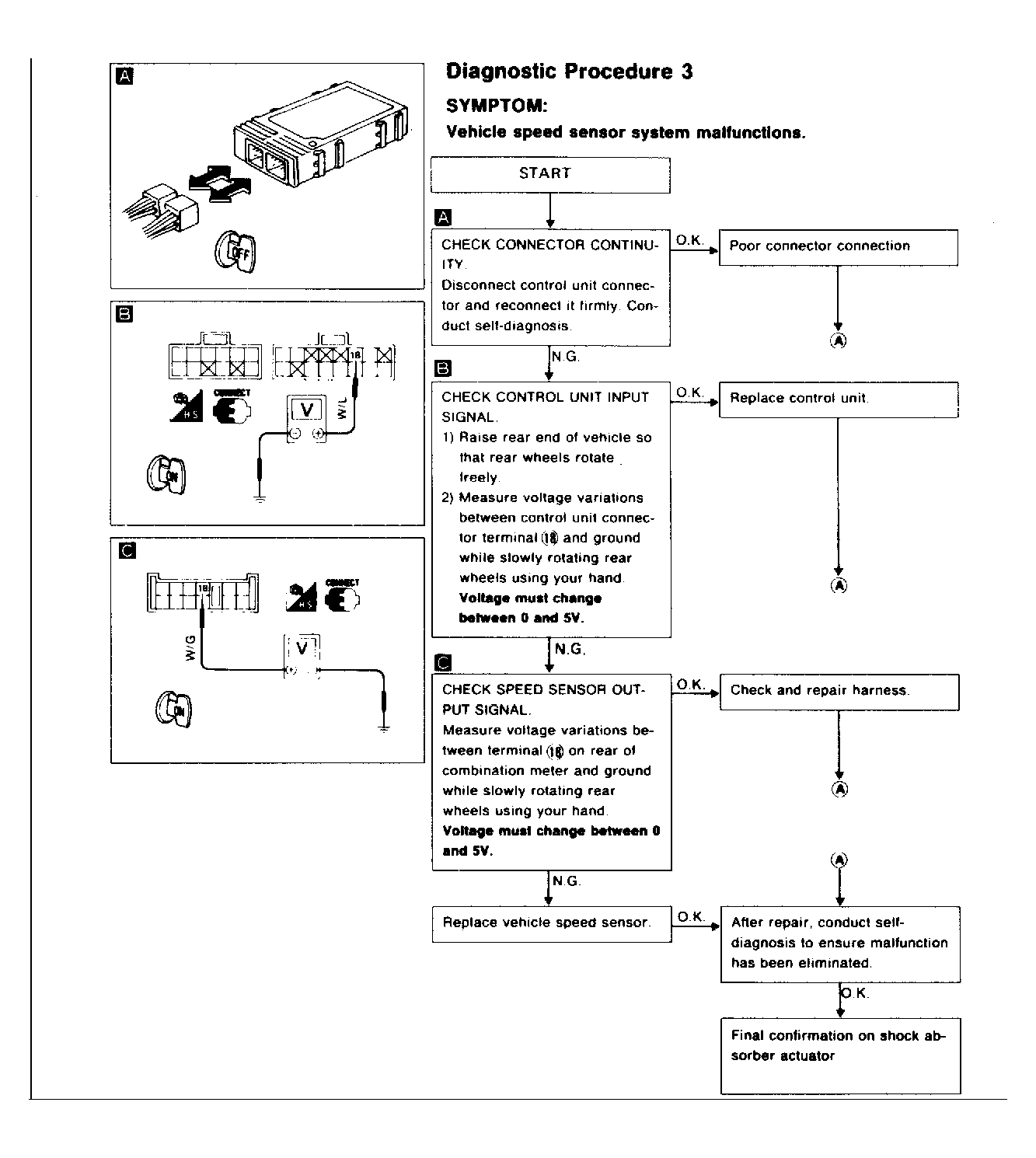

Fig 2: Sonar Suspension Diagnostic Procedure No. 3

G91H02818

Courtesy of NISSAN MOTOR CO., U.S.A.

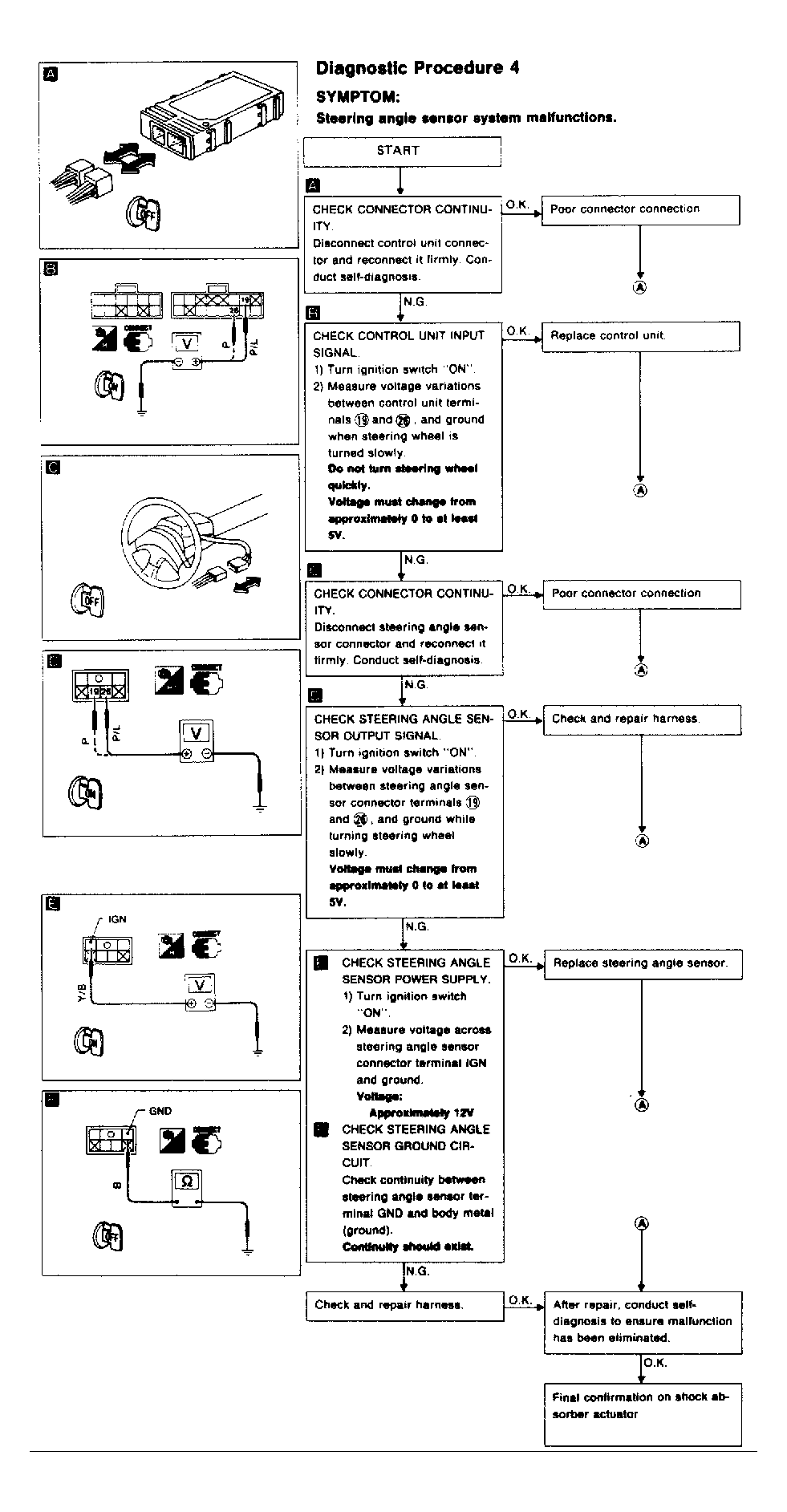

Fig 3: Sonar Suspension Diagnostic Procedure No. 4

G91J02819

Courtesy of NISSAN MOTOR CO., U.S.A.

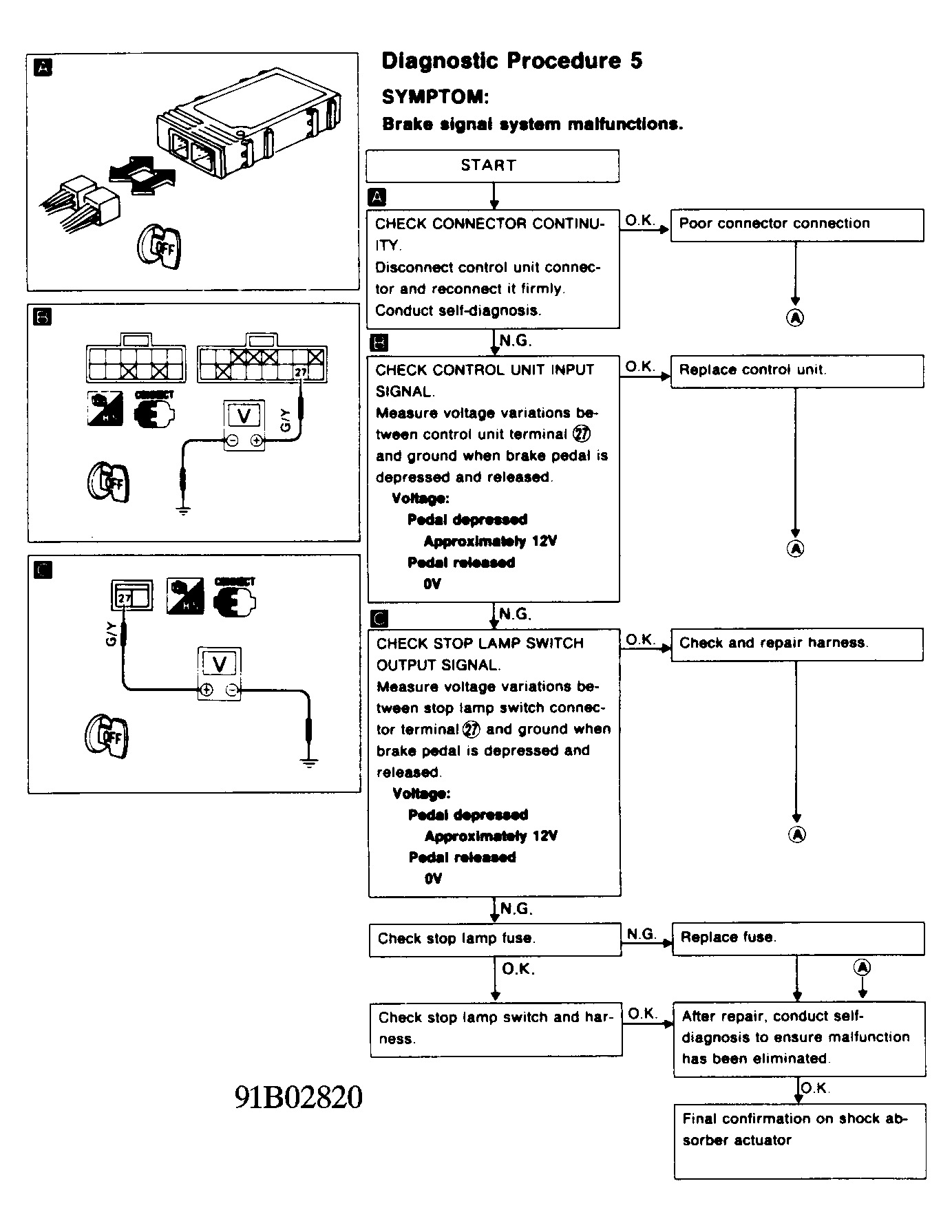

Fig 4: Sonar Suspension Diagnostic Procedure No. 5

G91B02820

Courtesy of NISSAN MOTOR CO., U.S.A.

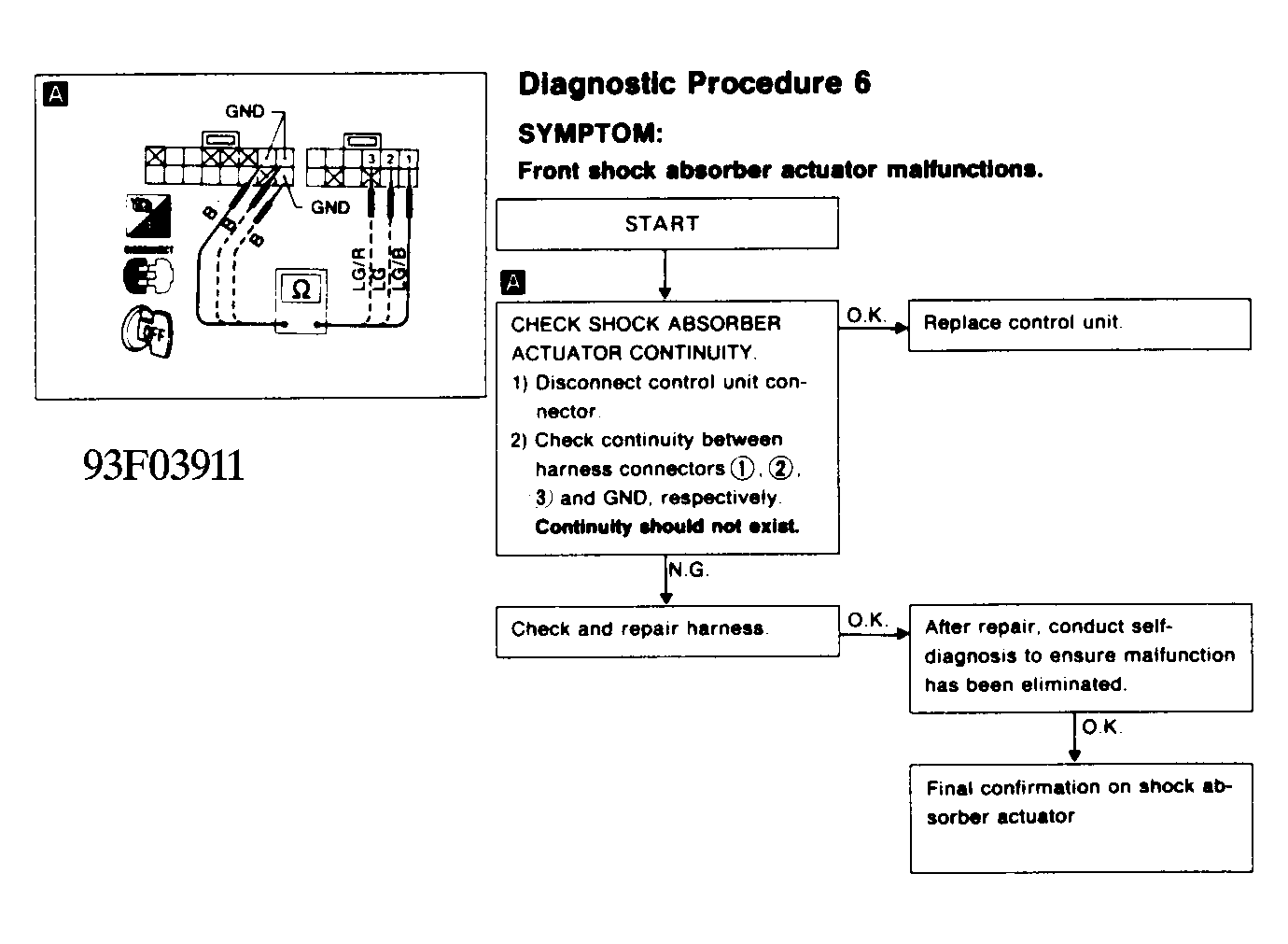

Fig 5: Sonar Suspension Diagnostic Procedure No. 6

G93F03911

Courtesy of NISSAN MOTOR CO., U.S.A.

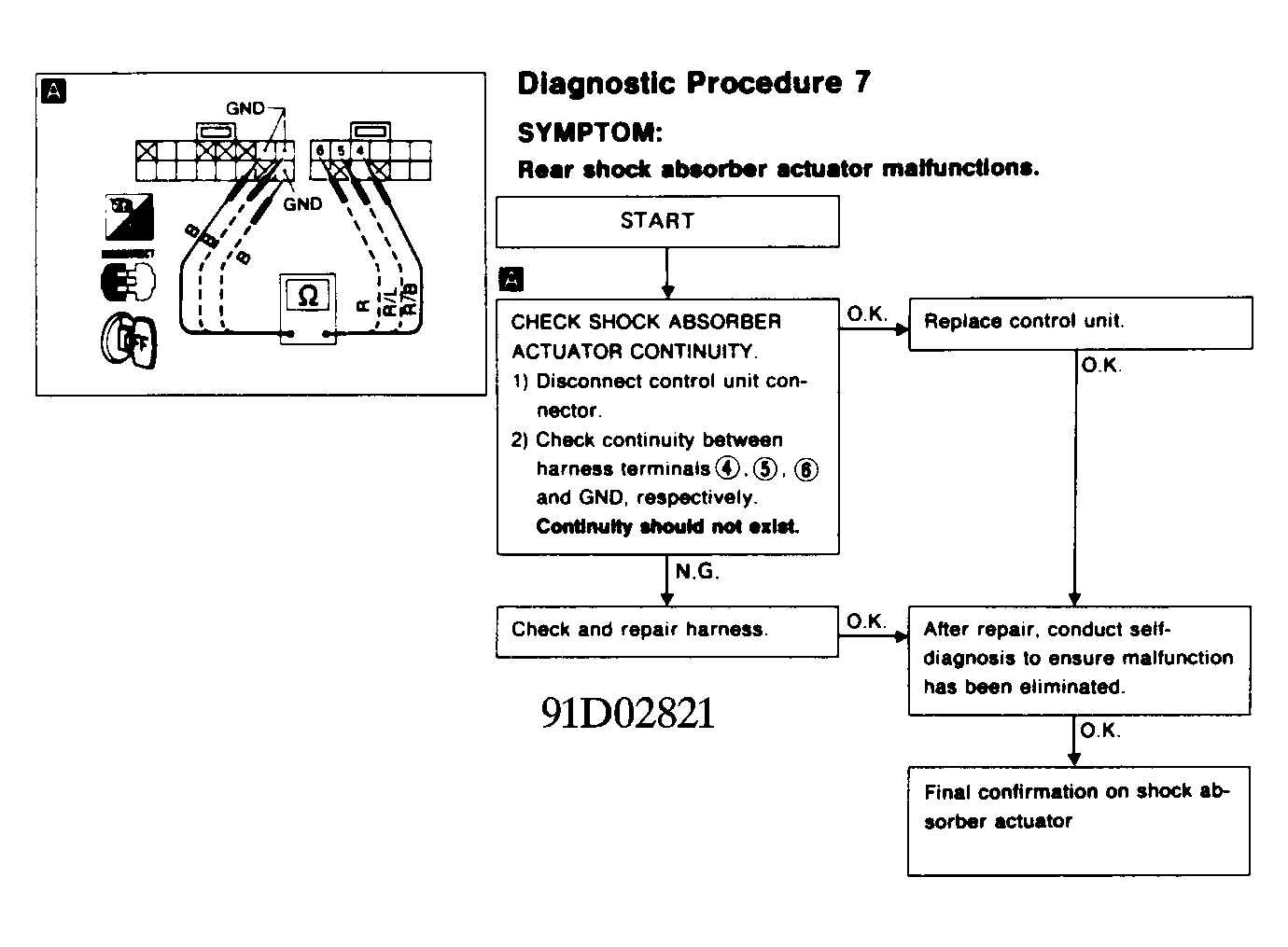

Fig 6: Sonar Suspension Diagnostic Procedure No. 7

G91D02821

Courtesy of NISSAN MOTOR CO., U.S.A.

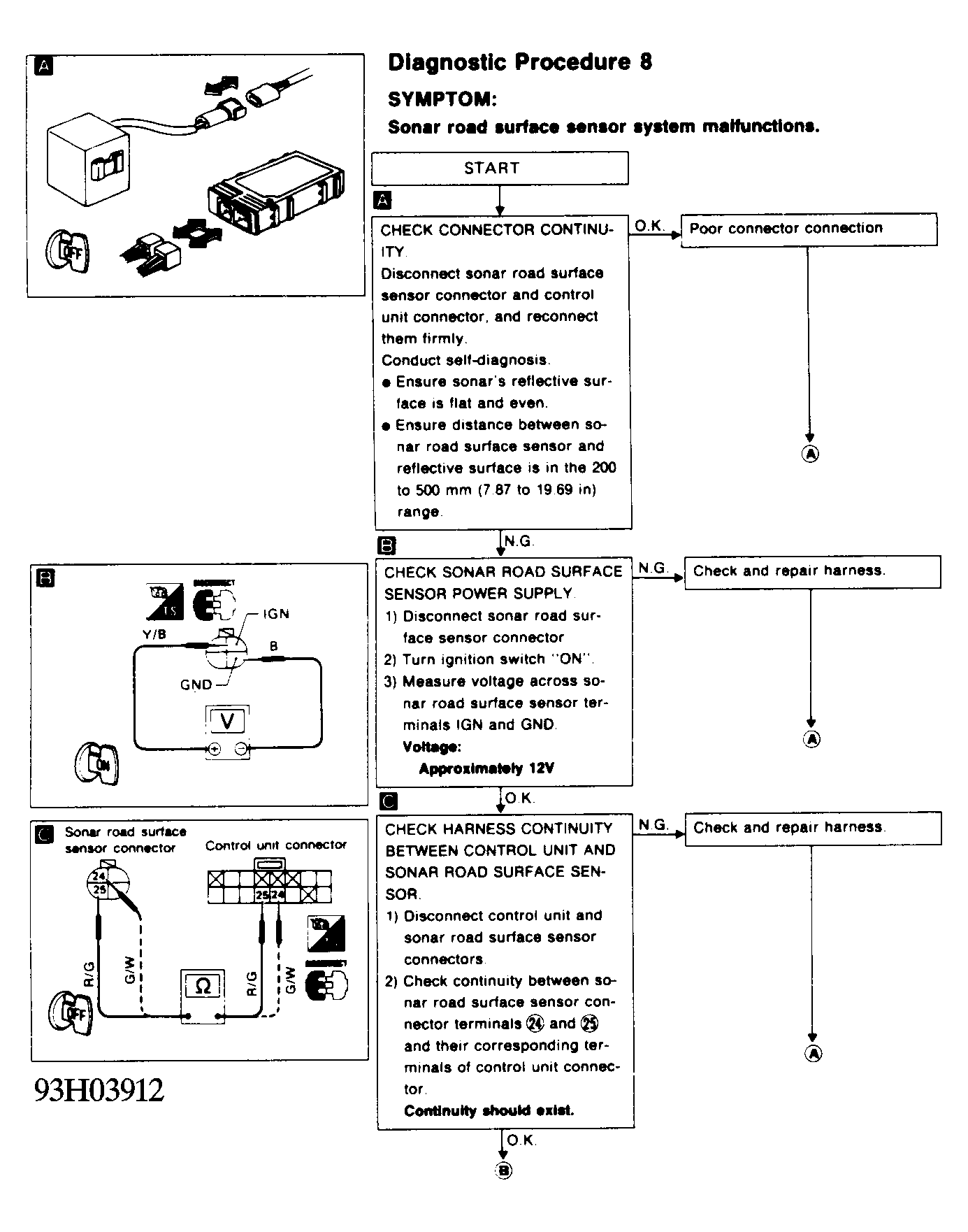

Fig 7: Sonar Suspension Diagnostic Procedure No. 8

G93H03912

Courtesy of NISSAN MOTOR CO., U.S.A.

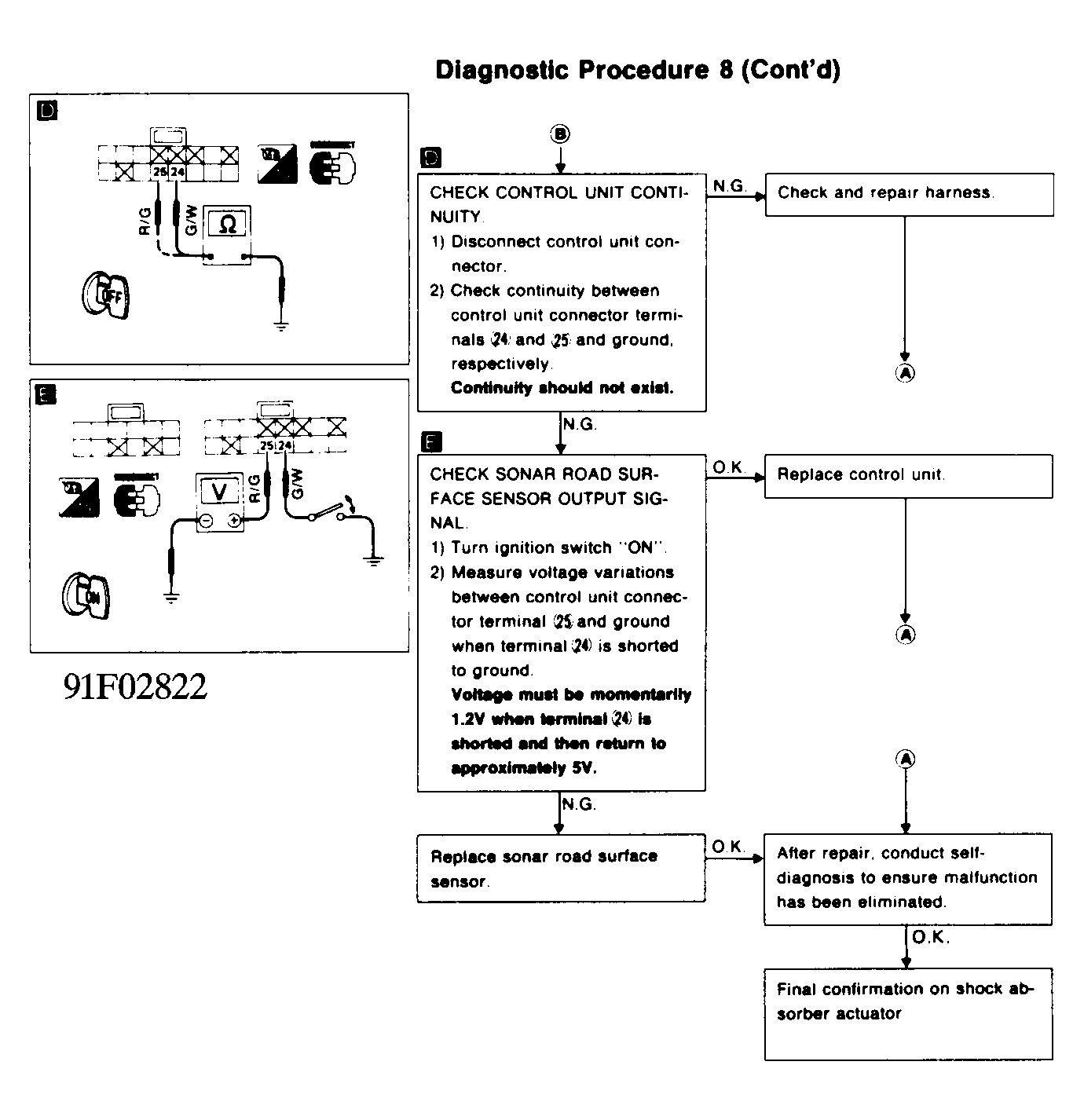

Fig 8: Sonar Suspension Diagnostic Procedure No. 8 (2 Of 2)

G91F02822

Courtesy of NISSAN MOTOR CO., U.S.A.

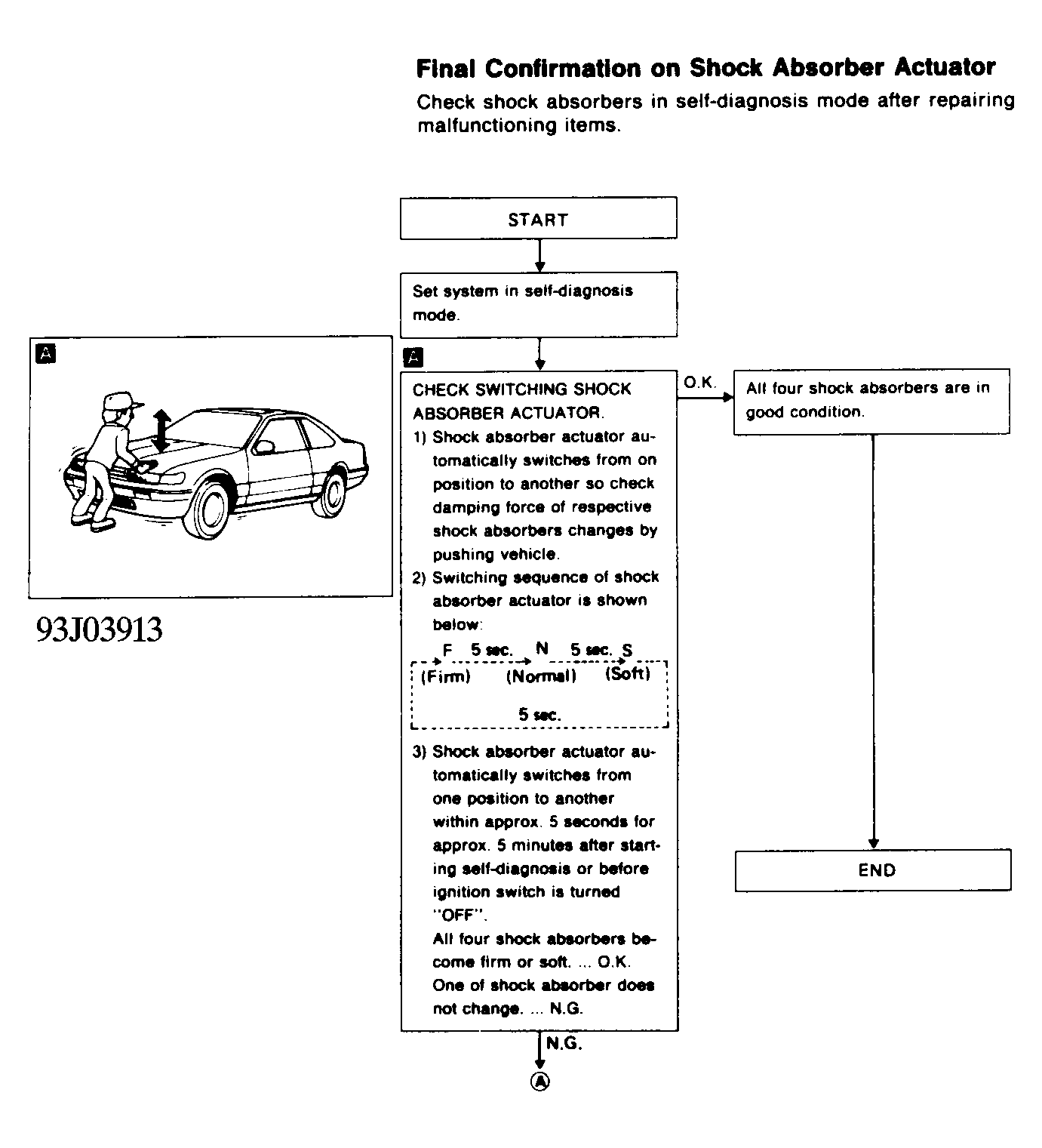

Fig 9: Final Confirmation On Shock Absorber Actuator

G93J03913

Courtesy of NISSAN MOTOR CO., U.S.A.

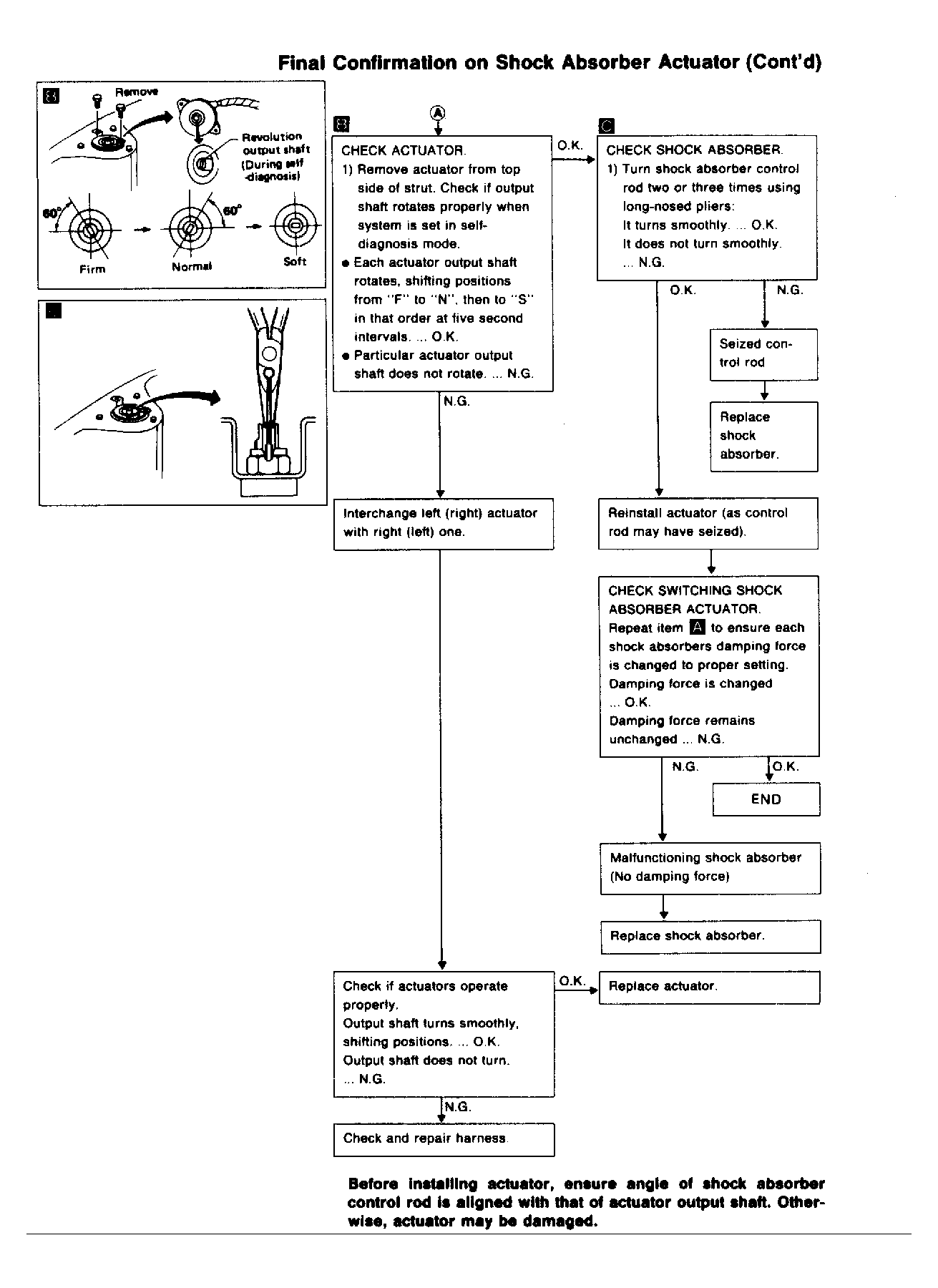

Fig 10: Sonar Suspension Final Confirmation On Shock Absorber Actuator (Cont.)

G91H02823

Courtesy of NISSAN MOTOR CO., U.S.A.
