Electronic Control Unit

For ECU testing and inspection, see Fig 1 - Fig 3 .

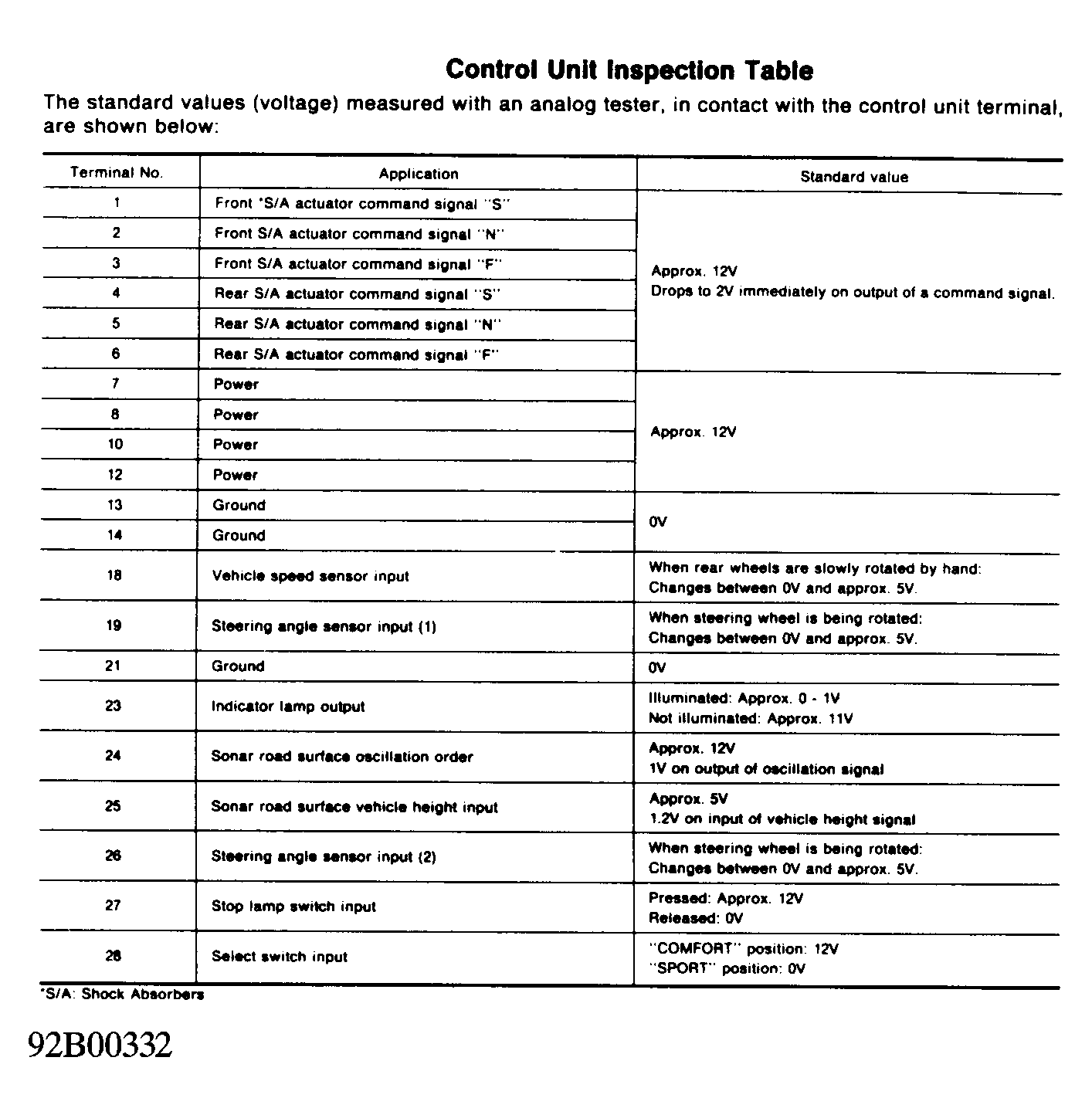

Fig 1: Sonar Suspension Control Unit Inspection Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: View Of Control Unit Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

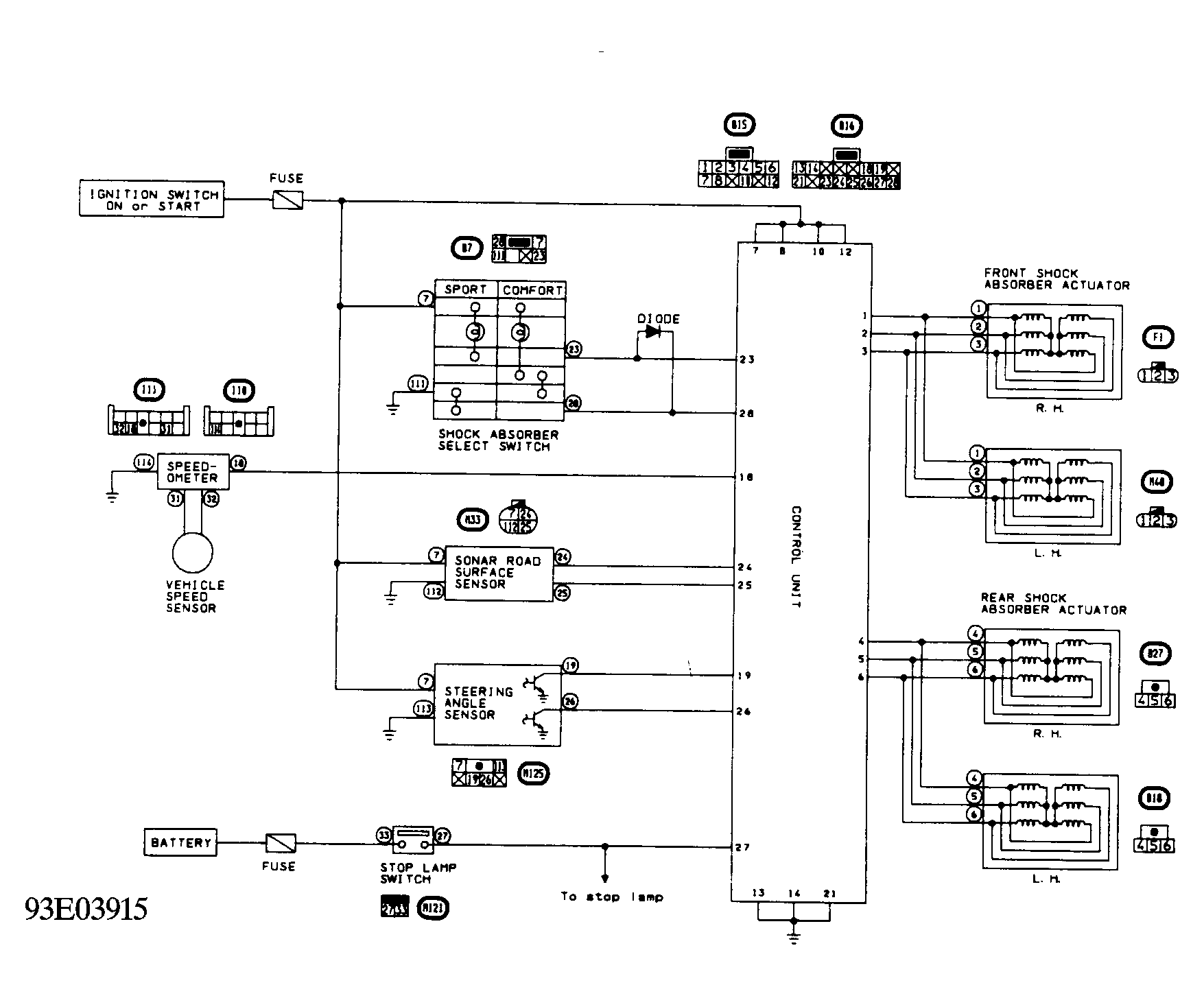

Fig 3: Control Unit Connector Wiring Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.
