Combination Meter
NOTE:

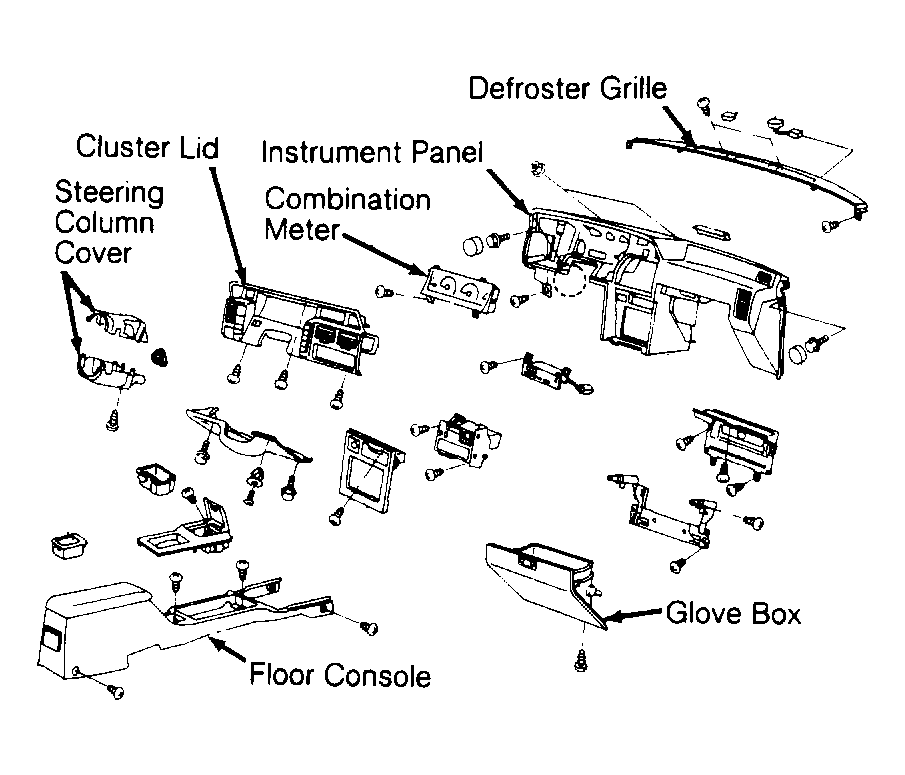

When disassembling the instrument panel, DO NOT use excessive force to remove plastic parts from retainers or damage may occur. See Fig 1
.
- Ensure air bag system is disconnected. See AIR BAG WARNING in this article or AIR BAG RESTRAINT SYSTEM article. Remove steering wheel. Remove steering wheel covers.
- Remove steering column retaining bolts and lower steering column (if necessary). Remove underneath dash panel covers as necessary. Remove cluster lid and combination meter. To install, reverse removal procedure.
