Front Muffler

  1. Disconnect the battery negative terminal.
  2. Disconnect the rear oxygen sensor connector (A).
    G13052258Courtesy of HYUNDAI MOTOR AMERICA

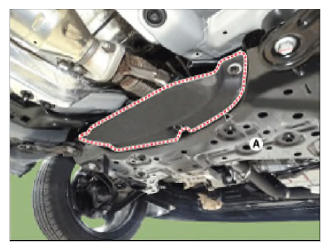

  3. Remove the front muffler heat protector (A).
    G13052259Courtesy of HYUNDAI MOTOR AMERICA

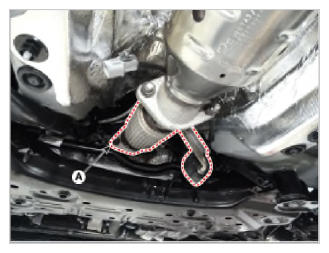

  4. Remove the front muffler (A).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G13052260Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of replacement.
    NOTE:
    • When installing, replace with new gaskets.
