Components And Components Location: Components

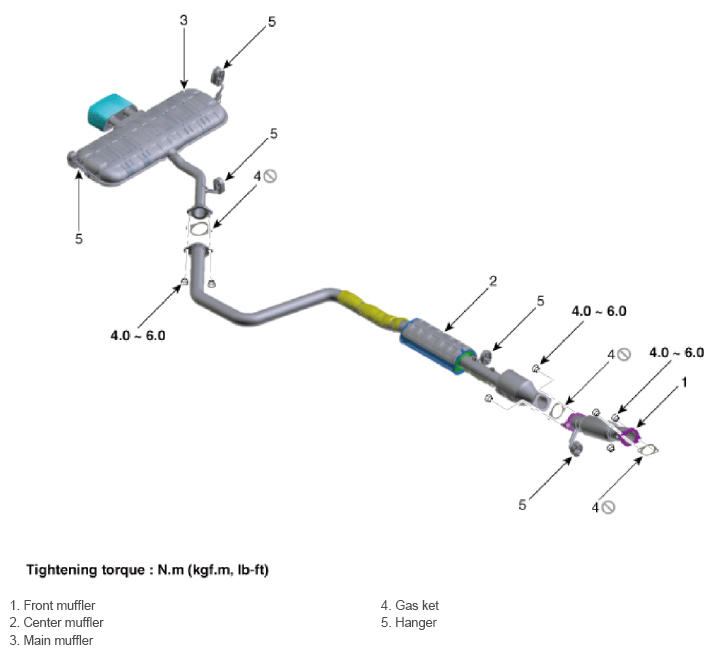

Fig 1: Muffler And Catalytic Converter Components With Torque Specification

G13052257

Courtesy of HYUNDAI MOTOR AMERICA
