Removal And Installation
- Disconnect the battery negative terminal.
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

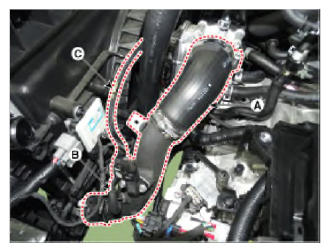

- Remove the intercooler inlet hoses & pipe.
Tightening torque:
4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb-ft)
- Intercooler outlet hose (A)
- Boost pressure sensor (BPS) (B)
- RCV solenoid hose (C)
NOTE:- It is allowed to plaster cleaning liquid or alcohol on the connecting surfaces of hose and pipe, but all kinds of oil is prohibited.
- The marking of hose must be in line with the stopper of the throttle body.
- The band must be located on the position mark of hose and must not run over it.
- Tighten the torque control cap until it separated. If a torque control cap has already removed, tighten the screw at the specified torque.

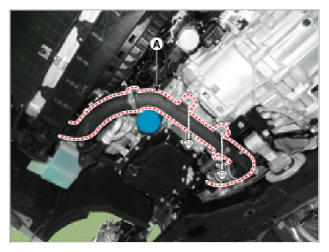

- Remove the intercooler inlet hose & pipe (A).
Tightening torque
Bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Clamp:
4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb-ft)
NOTE:- It is allowed to plaster cleaning liquid or alcohol on the connecting surfaces of hose and pipe, but all kinds of oil is prohibited.
- The groove of hose must be in line with the protrusion of the pipe.
- The band must be located on the position mark of hose and must not run over it.
- Tighten the torque control cap until it separated. If a torque control cap has already removed, tighten the screw at the specified torque.
- Remove the front bumper.
(Refer to Body - "FRONT BUMPER ")

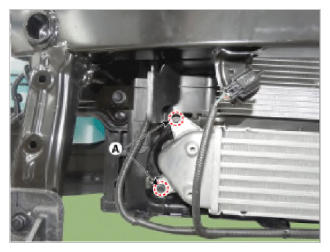

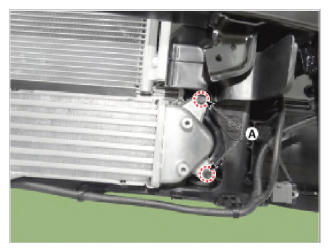

- Remove the inter cooler mounting bolts (A).
Tightening torque:
6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)
[LH]
[RH]

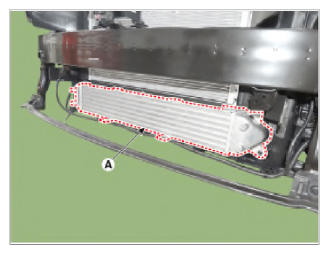

- Remove the inter cooler assembly (A).
- Install in the reverse order of replacement.
