Removal And Installation

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
Remove the intercooler inlet hoses & pipe (A).
Tightening torque

Bolt:

19.6 - 26.4 N.m (2.0 - 2.7 kgf.m, 14.4 - 19.5 lb-ft)

Clamp:

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- It is allowed to plaster cleaning liquid or alcohol on the connecting surfaces of hose and pipe, but all kinds of oil is prohibited.
- The groove of hose must be in line with the protrusion of the pipe.
- The band must be located on the position mark of hose and must not run over it.
- Tighten the torque control cap until it separated. If a torque control cap has already removed, tighten the screw at the specified torque.
Remove the WGT control actuator (EWGA) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

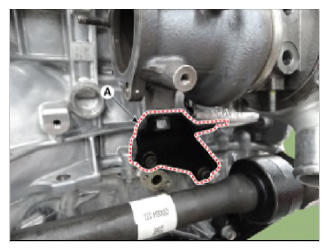

Remove the intake pipe stay (A).
Tightening torque

M8 Bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

M10 Bolt:

29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.6 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

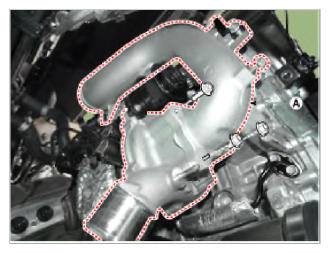

Remove the intake pipe (A) and gasket.
Tightening torque

Bolt:

29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.6 - 28.9 lb-ft)

Nut:

35.3 - 41.1 N.m (3 6 - 4.2 kgf.m, 26.0 - 30.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

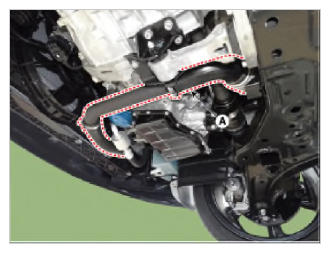

Remove the turbo charger water pipe & hose (A).
Tightening torque

Flange Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Eye Nut:

26.4 - 32.3 N.m (2.7 - 3.3 kgf.m, 19.5 - 32.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

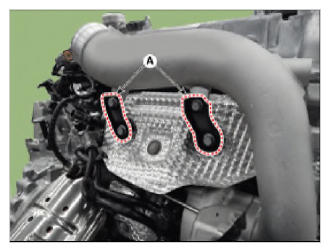

Remove the turbo manifold module heat protect (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, temporarily tighten the bolt and then completely tighten to specified torque.

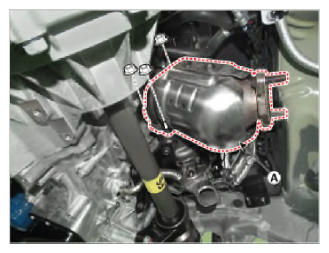

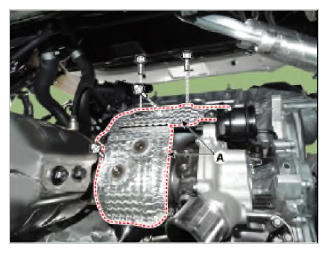

Remove the warm - up catalytic converter (WCC) (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

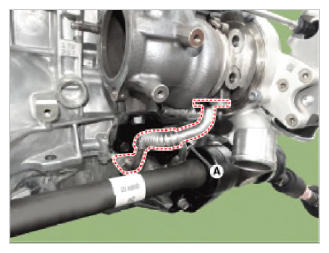

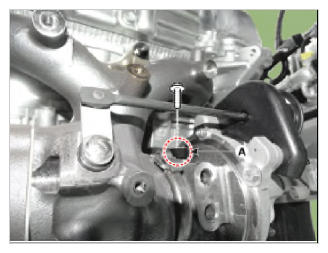

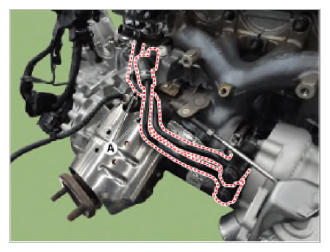

Remove the turbo charger oil feed pipe (A).
Tightening torque

M6 Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Eye Nut:

11.8 - 17.6 N.m (1.2 - 1.8 kgf.m, 8.7 - 41.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, completely remove the oil from assembly part and be careful not to enter any dust.
- When installing the eye bolt, be careful to not contact with the stopper to the compressor housing.

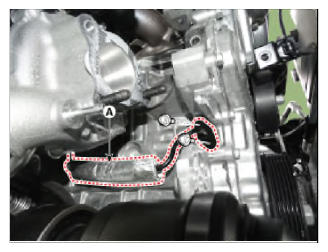

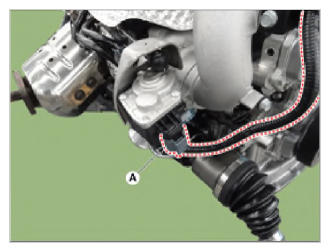

Remove the turbo charger oil drain pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, completely remove the oil from assembly part.

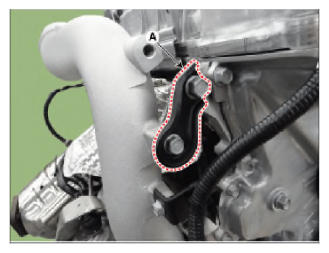

Remove the turbo manifold module stay (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.1 - 39.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, temporarily tighten the bolt in picture order and completely tighten the bolt as specified torque in order.

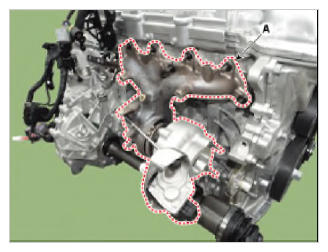

Remove the turbo manifold module (A) and gasket.
Tightening torque:

35.3 - 41.1 N.m (3.6 - 4.2 kgf.m, 26.0 - 30.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, you should assemble it toward the coating side (black).
- When installing, temporarily tighten the nut in picture order and completely tighten the bolt as specified torque in order.

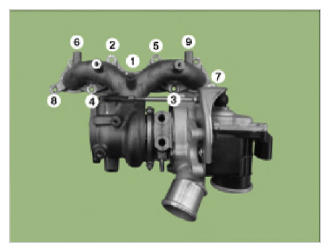

  Fig 1: Exhaust Manifold Bolts And Nuts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of replacement.
CAUTION:
- When installing, replace with a new gasket.
- If the oil feed pipe and hose is damaged, the turbocharger could be damaged because turbocharger oil supply is not good. Be careful to not crush.
