Air Cleaner Element

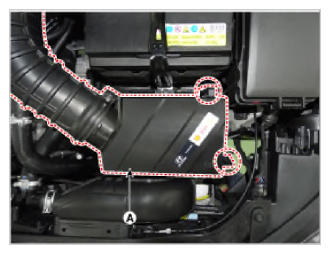

  1. Open the air cleaner cover (A) by unhooking the clamps.
    G13052217Courtesy of HYUNDAI MOTOR AMERICA

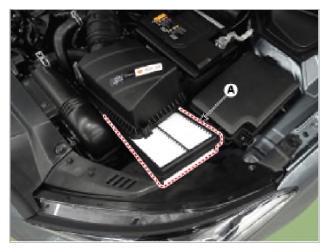

  2. Replace the air cleaner element (A) with a new one.
    G13052218Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
  3. Close the air cleaner cover by hooking the clamps.
    NOTE:
    • Install the air cleaner cover, insert the hinge (A) and fill the clamp.
      G13052219Courtesy of HYUNDAI MOTOR AMERICA
