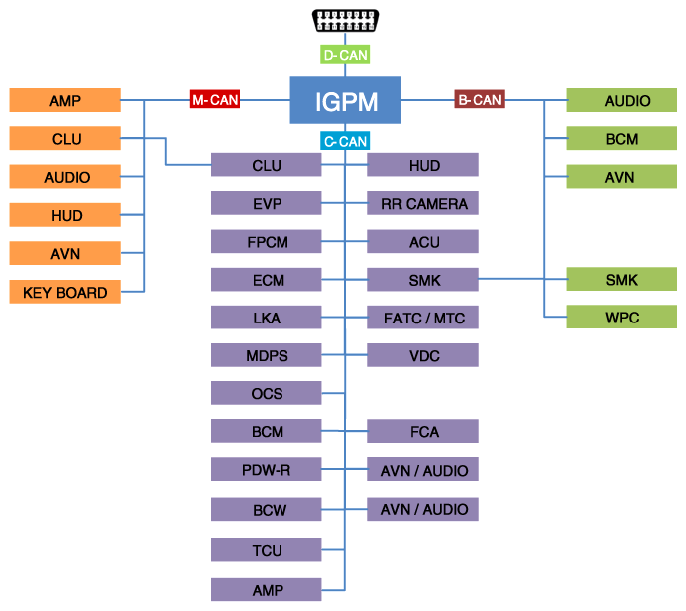

Communication Network Diagram

G13054380Courtesy of HYUNDAI MOTOR AMERICA
Abbreviation Explanation
ECM Engine Control Module
TCU Transmission Control Unit
MDPS Motor Driven Power Steering
FCA Forward Collision-avoidance Assist
LKA Lane Keeping Assist
PDW-R Parking Distance Warning - Reverse
FPCM Fuel Pump Control module
RR CAMERA Rear View Camera
EVP Vacuum Pump
CLUSTER Cluster Module
ACU Airbag Control Unit
FATC Full Auto Temp Control
MTC Temp Control
OCS Occupant Classification System
VDC Vehicle Dynamic Control
BCW Blind-spot Collision Warning
AMP Amplifier
AVN Head Unit (Audio/AVN)
SMK Smart Key Unit
WPC Wireless Power Charger
BCM Body Control Module
B-CAN Body Controller Area Network
M-CAN Multi media Controller Area Network
C-CAN Chassis Controller Area Network
