Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

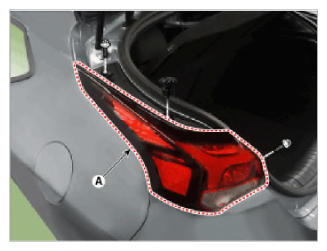

After loosening the mounting bolts, remove the rear combination lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the rear combination lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the rear bumper lower mounting pin-type retainers.

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the pin-type retainers and screws on the side of rear bumper (A), detach the side part of rear bumper.
CAUTION:
- Be careful not to damage the tabs on the side part of front bumper.
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screw and clip, remove the rear bumper assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the rear bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse of replacement procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
