Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

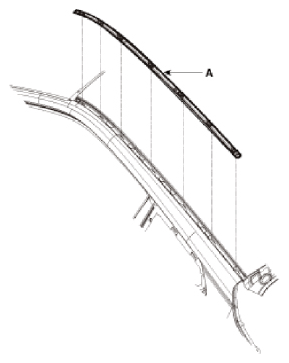

Using a screwdriver or remover, remove the roof side molding (A).
General

Courtesy of HYUNDAI MOTOR AMERICA

Option

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse of replacement procedure.
Information
- Replace any damaged clips (or pin-type retainers).
