Front Door Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

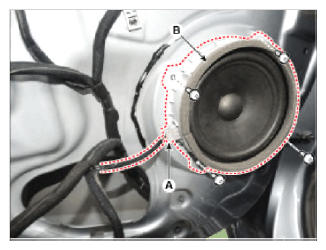

  3. Remove the front door speaker (B) after disconnecting the connector (A) by loosening the screws.
    G13054148Courtesy of HYUNDAI MOTOR AMERICA
