Roof Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the roof trim assembly.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

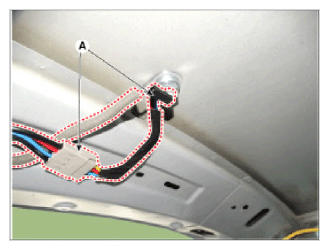

  3. Disconnect the roof antenna cable and connector (A).
    G13054152Courtesy of HYUNDAI MOTOR AMERICA

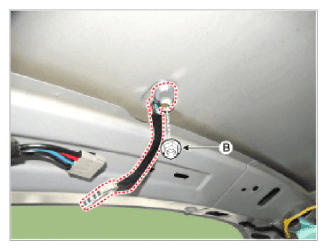

  4. Remove the roof antenna after loosening a nut (B).
    G13054153Courtesy of HYUNDAI MOTOR AMERICA
