Monitor DTC Status

Plug GDS to Data Link Connector (DLC).
Turn "ON" the ignition switch.
Select "AMP" system and perform "Vehicle S/W Management" with GDS.

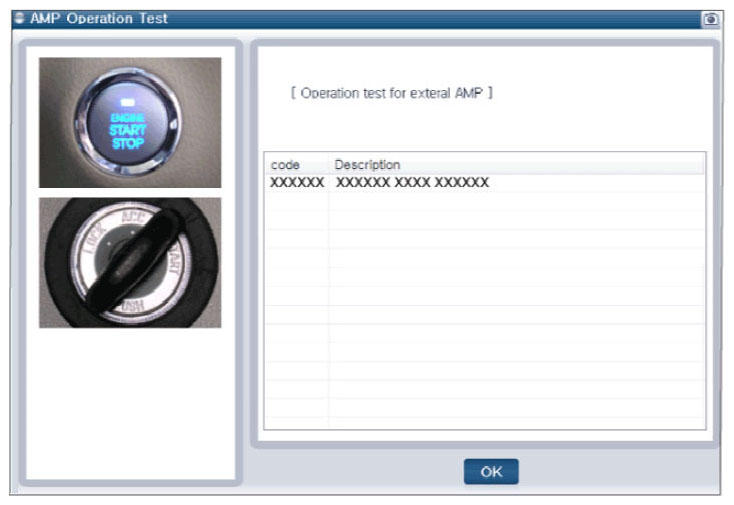

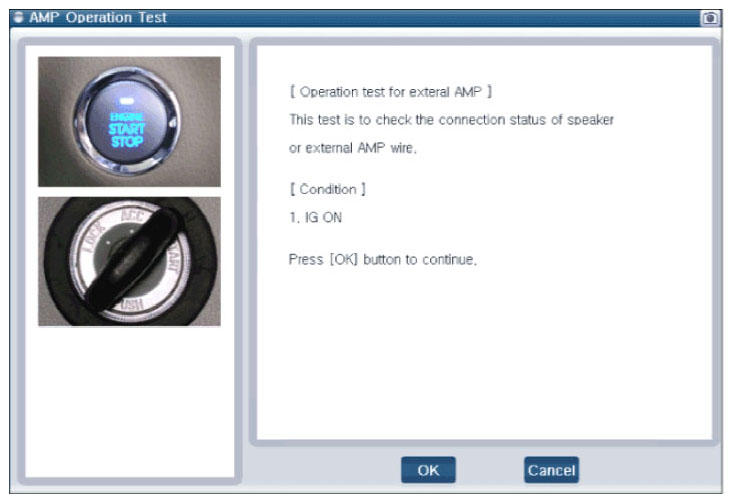

Perform "AMP Operation Test" of "Vehicle S/W Management".

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Is the DTC set as above?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
