Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC)
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Time Trouble Codes (DTC)" mode.
  3. Monitor Diagnostic Time trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.
  5. Adults needs to be sat down on the passenger seat.

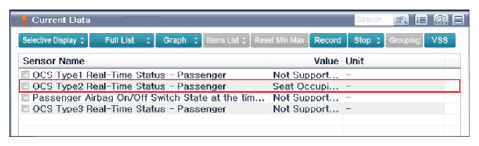

  6. Monitor the "PAB Real Time Information Of "Current Data" parameter on the GDS.
    G15454974Courtesy of HYUNDAI MOTOR AMERICA
  7. Are the parameters displayed correctly?

    YES

    • Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to "W/Harness Inspection" procedure.
