Anchor Pretensioner front-Passenger

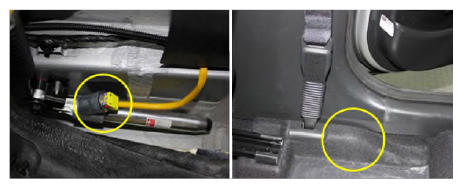

G15454920Courtesy of HYUNDAI MOTOR AMERICA

Passenger Anchor Pretensioner operates as a Second Belt Pretensioner if it gets into a deployment condition after a collision. It is located near anchor on Passenger seat and it makes up for the existing short stroke. Passenger Anchor Pretensioner is supported by two cables and it is an auxiliary to prevent a driver from breaking away as seat belt is being pulled toward anchor side after a collision.

CAUTION: Never measure resistance of Anchor Pretensioner front-Passenger directly, Current of measuring device may cause unexpected airbag deploy.
