[Steering column shroud upper panel]

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the crash pad lower panel. (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

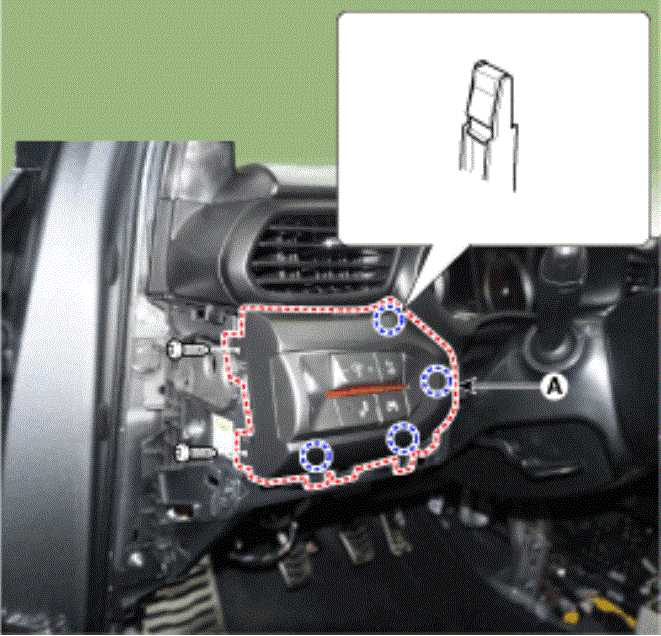

2. After loosening the mounting screws, remove the lower switch assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

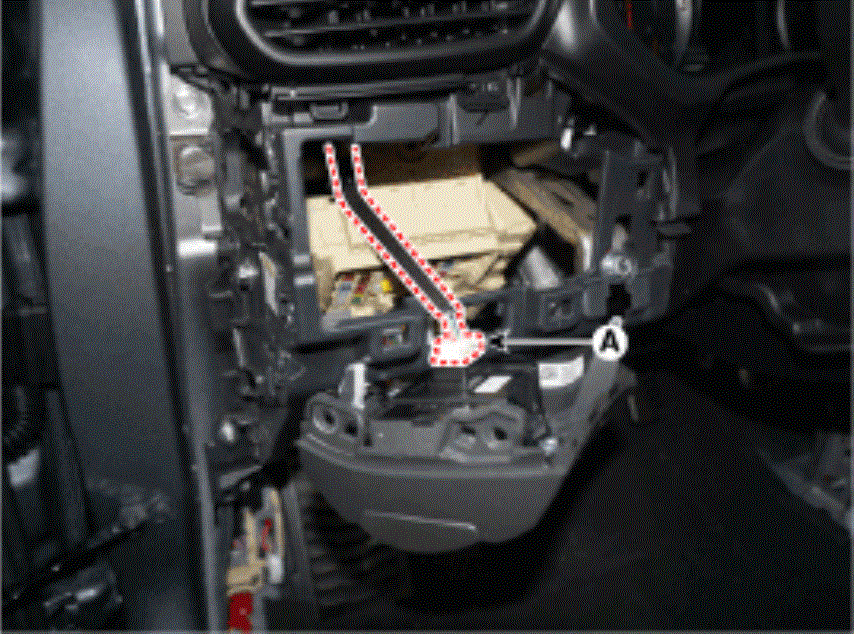

3. Disconnect the lower switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

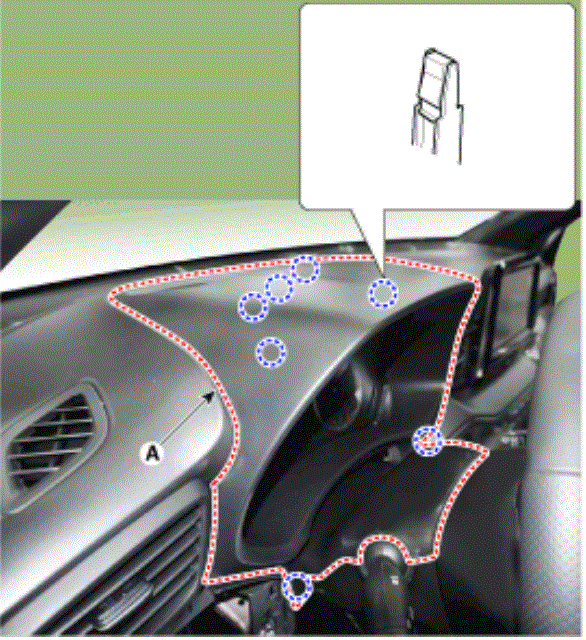

4. Using a screwdriver or remover, remove the steering column shroud upper panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

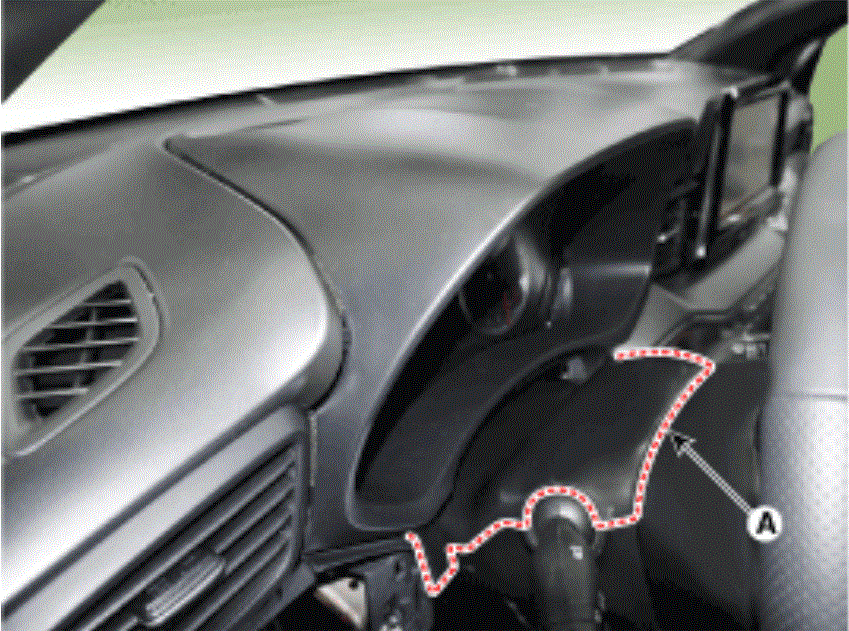

5. Using a screwdriver or remover, remove the steering column shroud upper panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

6. To install, reverse removal procedure.

   Information

   • Replace any damaged clips (or pin-type retainers).
