Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the cowl side trim. (Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the glover box. (Refer to Crash Pad - "GLOVE BOX ")

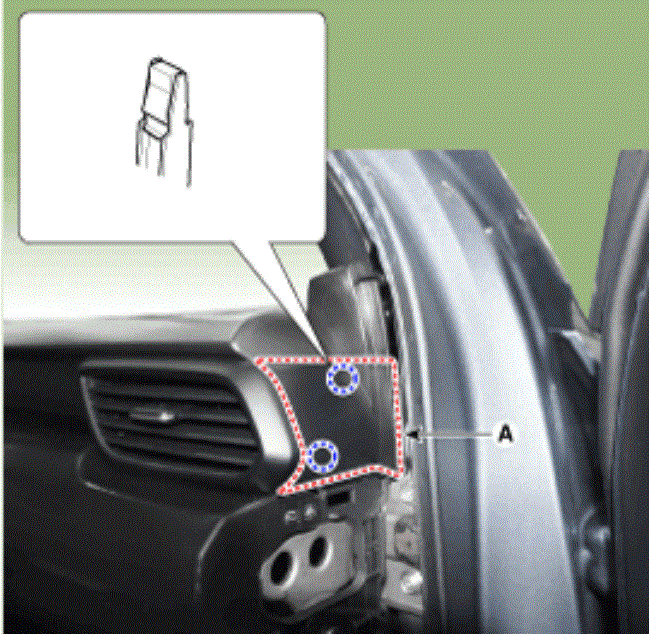

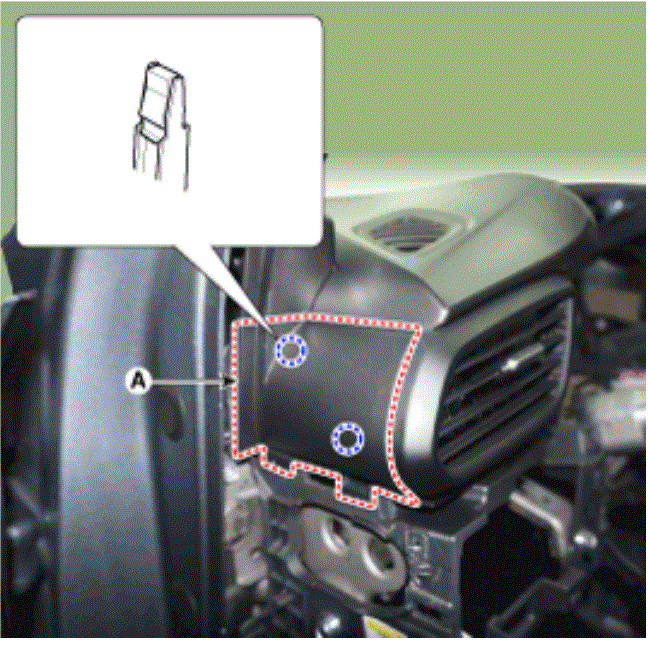

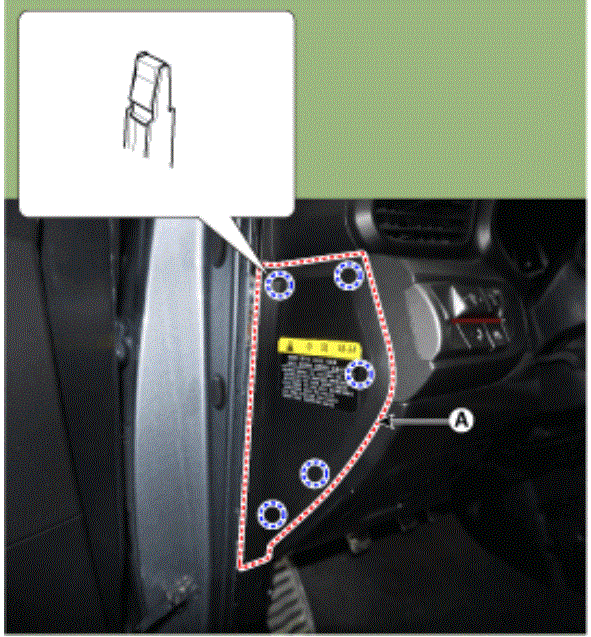

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly. (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the center fascia panel. (Refer to Crash Pad - "CENTER FASCIA PANEL ")

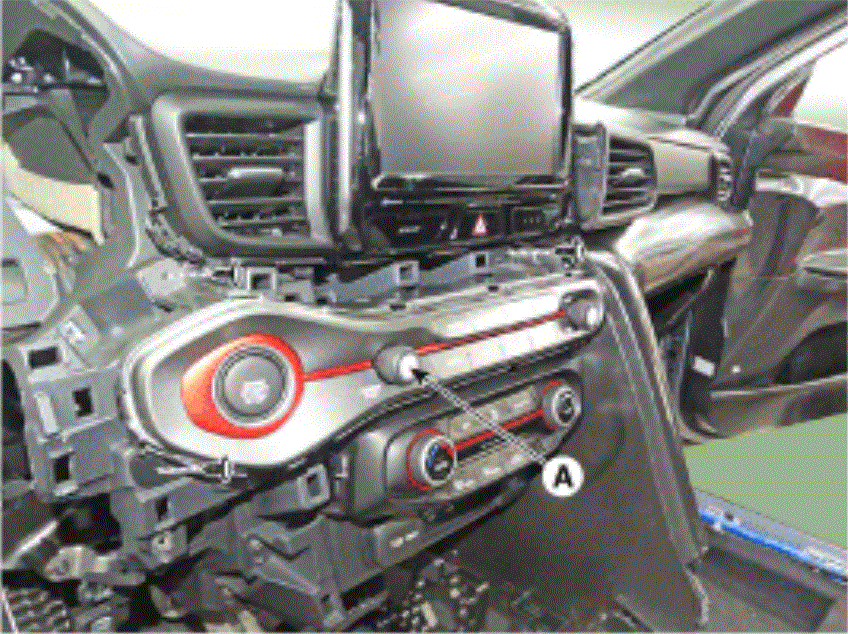

After loosening the mounting screws, remove the AVN keypad assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

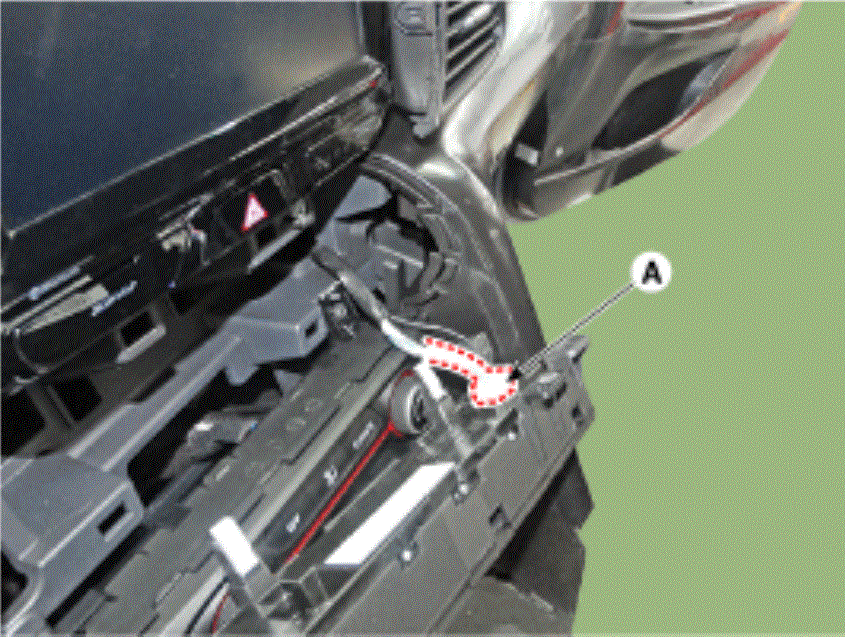

Disconnect the AVN keypad connector (A) and start button connector (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the heater & A/C control unit. (Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT ")

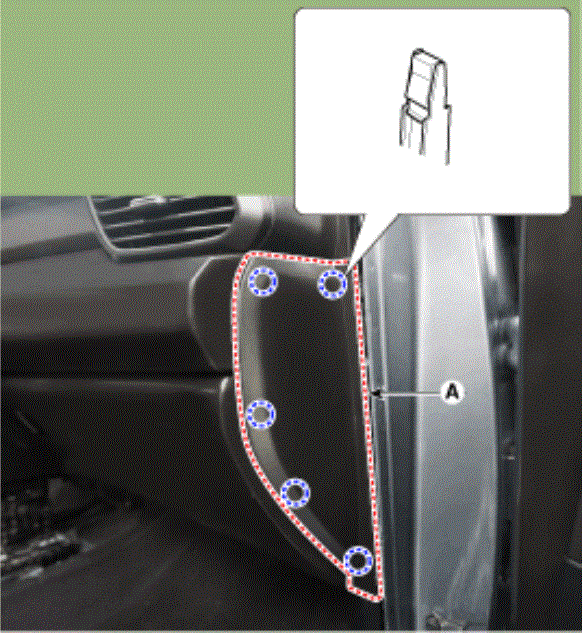

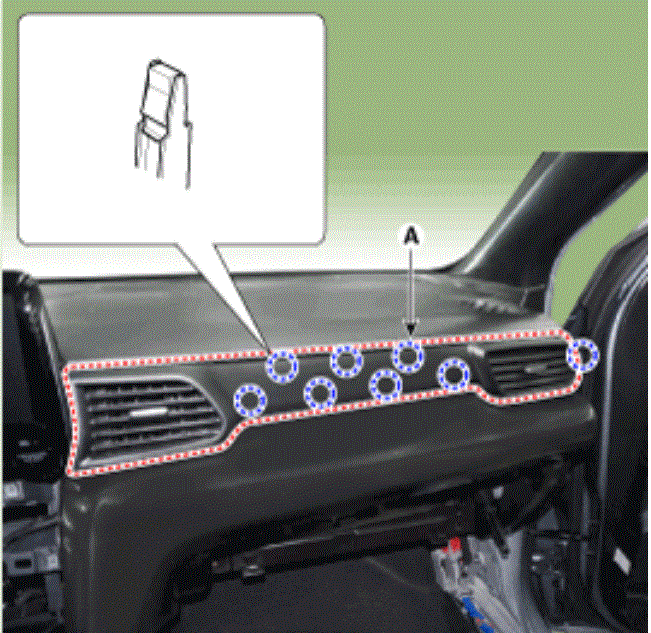

Using a screwdriver or remover, remove the crash pad side panel (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad center garnish [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the crash pad center garnish [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

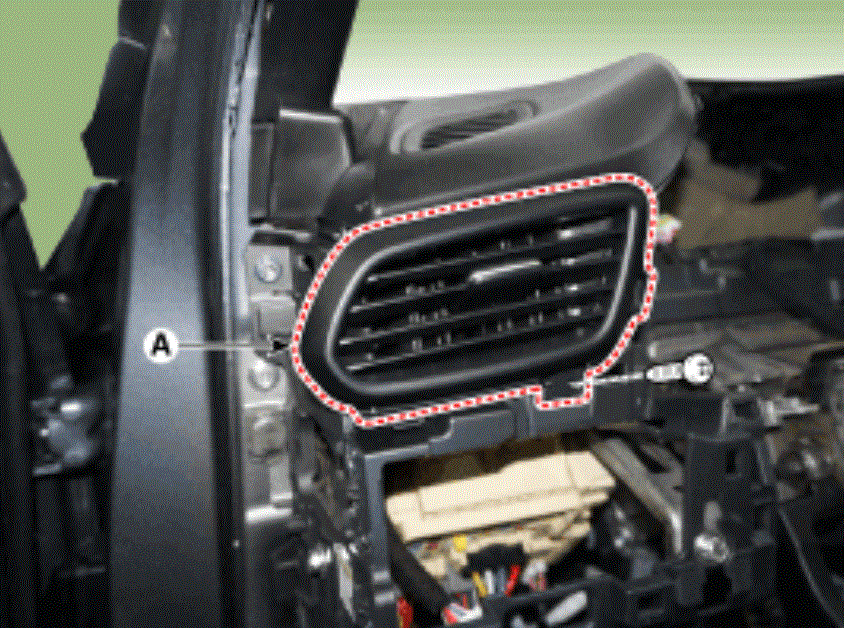

After loosening the mounting screws, remove the center air vent duct [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the audio and AVN head unit. (Refer to Body Electrical System - "AUDIO UNIT ")

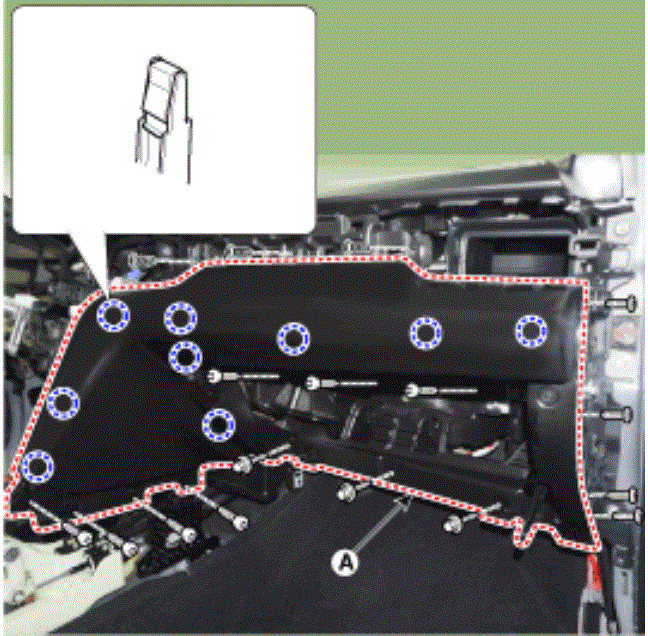

After loosening the mounting screws and bolts, remove the glove box housing cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
