Ventilation Seat Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front assist seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

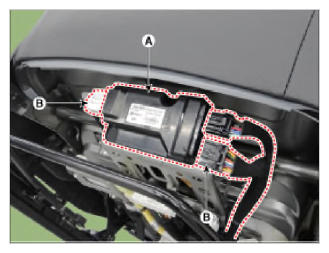

  3. Loosen the screws from the ventilation seat unit (A).
    G13054324Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ventilation seat unit (A) after disconnecting the connectors (B).
    G13054325Courtesy of HYUNDAI MOTOR AMERICA
