Ventilation Blower

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

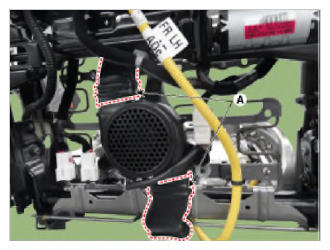

  3. Remove the blower duct (A).
    G13054322Courtesy of HYUNDAI MOTOR AMERICA

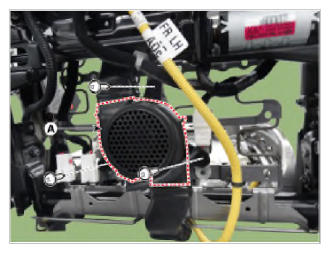

  4. Remove the blower FAN (A) after removing the screws.
    G13054323Courtesy of HYUNDAI MOTOR AMERICA
