Door Striker Adjustment
Information

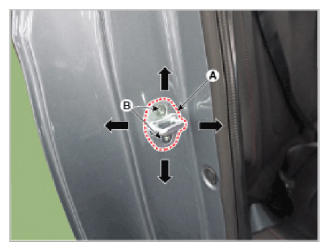

- Make sure the door latches securely without slamming it. If necessary adjust the striker (A). The striker nuts are fixed. The striker can be fine adjusted up or down, and in or out.
- After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).
Tightening torque:
(B): 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)
- Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.
- Hold the outer handle out, and push the door against the body to make sure that the striker fits flush with the body. If the door latches properly, tighten the screws and recheck.
