Front Seat

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

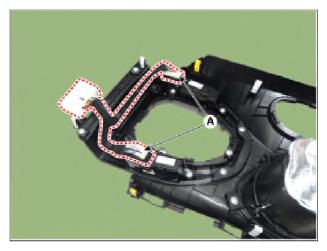

  3. Disconnect the Driver/Assist console switch connector (A).
    G13054317Courtesy of HYUNDAI MOTOR AMERICA

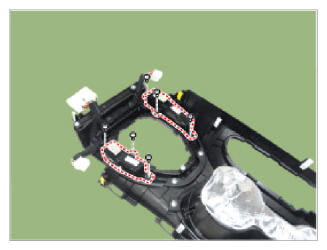

  4. Remove the console switch after loosening the mounting the screws.
    G13054318Courtesy of HYUNDAI MOTOR AMERICA
