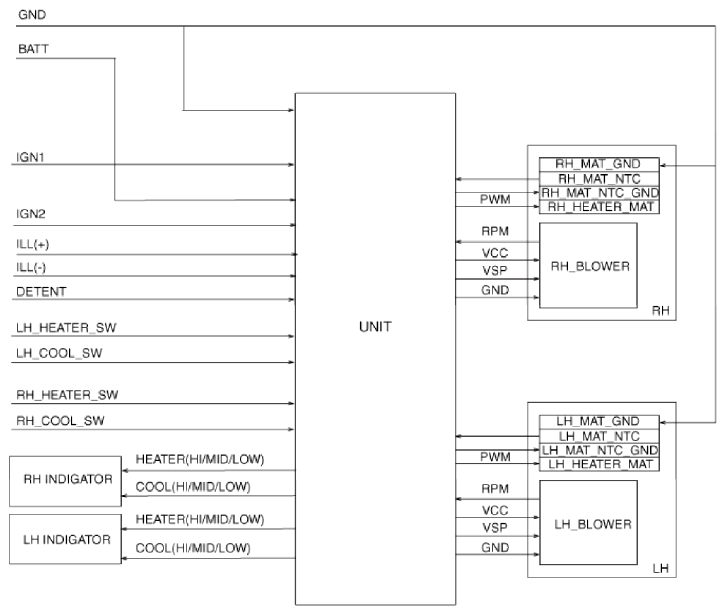

Home >> Hyundai >> 2021 >> Veloster 2.0, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Electrical >> Air Ventilation Seat >> Schematic Diagrams >> Circuit Diagram >> Notes
