Rear Door Speaker (RH)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

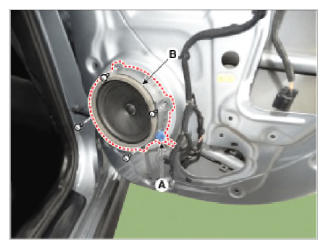

  3. Remove the rear door speaker (B) after disconnecting the connector (A) by loosening the screws.
    G13054192Courtesy of HYUNDAI MOTOR AMERICA
