Mechanical Aiming
The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
NOTE:
- If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements.
Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows:
- Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, tools, coolant and fuel.
- The vehicle should be placed on a flat ground.
- Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.
- With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.
- Vertical (High/Low beam)
- Horizontal (Low beam)
Halogen
LED

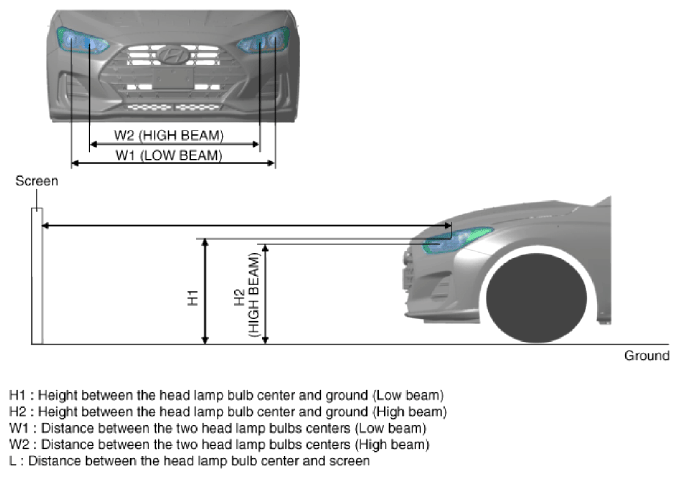

Head Lamp And Fog Lamp Aiming Point
Unit: in (mm)
| Bulb Type | Vehicle condition | H1 | H2 | W1 | W2 | L |
|---|---|---|---|---|---|---|
| Standard | Without driver | 695 | 673 | 1, 436 | 1, 218 | Refer to aiming condition |
| With driver | 689 | 667 | ||||
| Bulb Type | Vehicle condition | H1 | H2 | W1 | W2 | L |
| Option | Without driver | 694 | 673 | 1, 436 | 1, 218 | Refer to aiming condition |
| With driver | 688 | 667 |
- Head Lamp (Low beam)

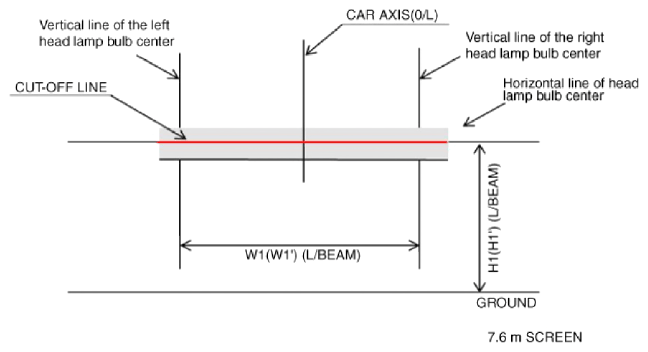

- With the low beam turned on, adjust the cut-off line to be located as shown in the illustration below.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
