Repair Procedures: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the floor console upper cover assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

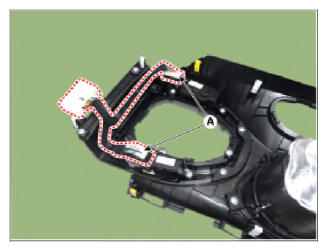

- Disconnect PDW connector (A).
- Remove the PDW switch (A) from the floor console upper cover after loosening the mounting screws.
