[General Standard]

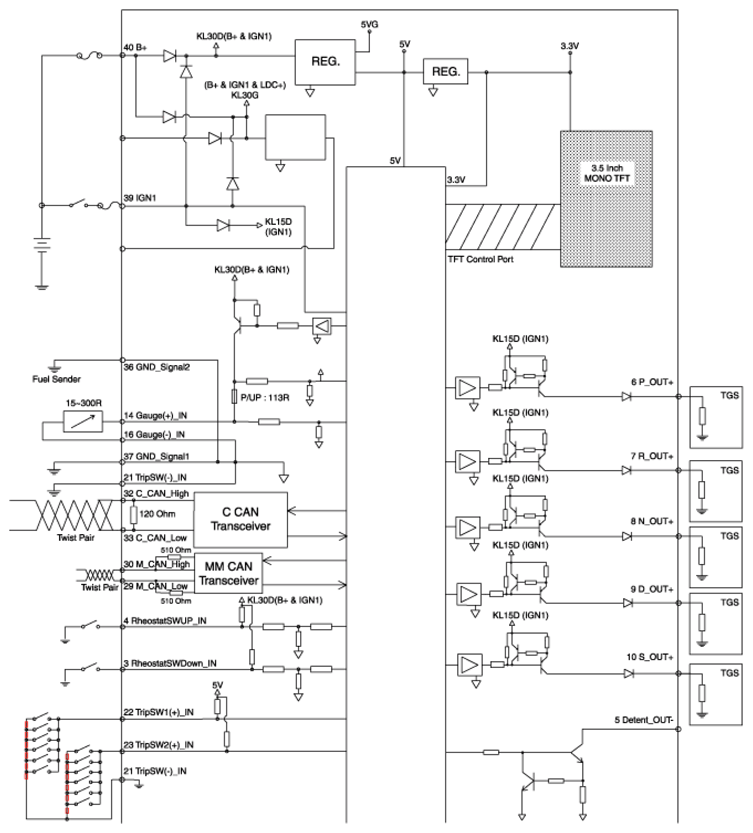

G13030351Courtesy of HYUNDAI MOTOR AMERICA

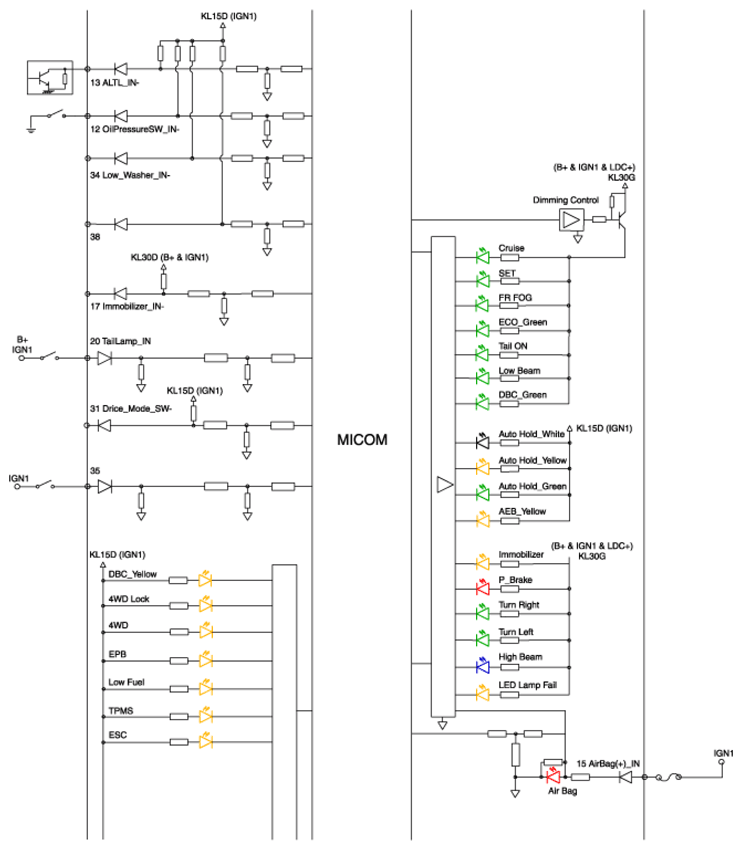

G13030352Courtesy of HYUNDAI MOTOR AMERICA

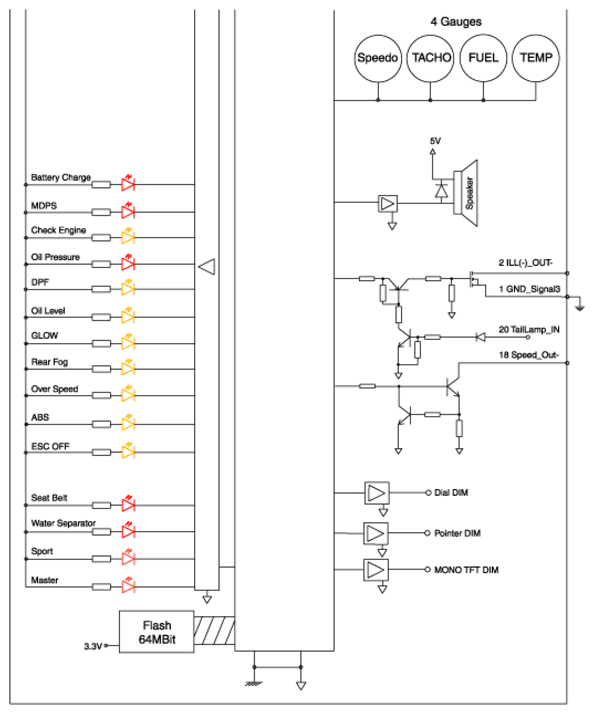

G13030353Courtesy of HYUNDAI MOTOR AMERICA
