Instrument Cluster Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Crash Pad Lower Cover.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

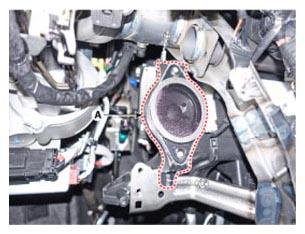

  3. Remover the Instrument Cluster Speaker (A) after disconnecting the speaker connector.
    G13030361Courtesy of HYUNDAI MOTOR AMERICA
