Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
- Remove the center fascia panel.
(Refer to Crash Pad - "CENTER FASCIA PANEL ")
- Remove the cluster fascia panel.
(Refer to Crash Pad - "CLUSTER FASCIA PANEL ")
- Remove the heater & A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT (MANUAL) ")
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

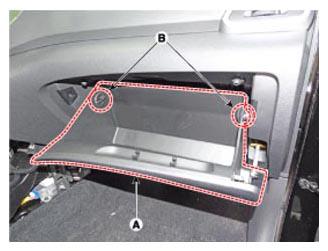

- Remove both stoppers (B) from the glove box (A) by turning the stoppers.

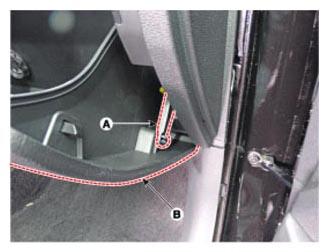

- Separate the air damper (A) from the glove box (B).

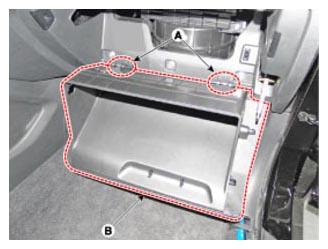

- Disconnect the push pins (A) and then remove the glove box (B).

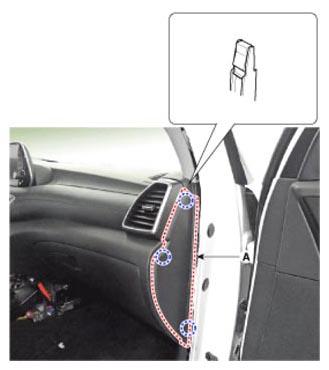

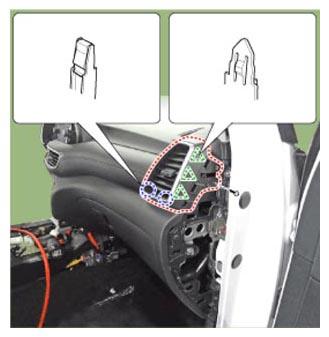

- Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
- Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

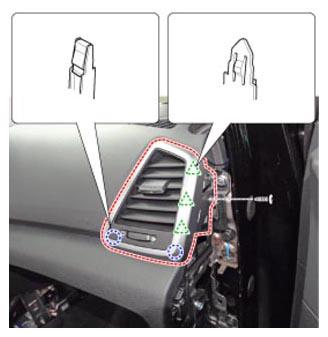

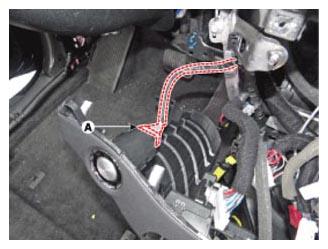

- Loosen the mounting screws and remove the crash pad air vent duct [RH] (A).

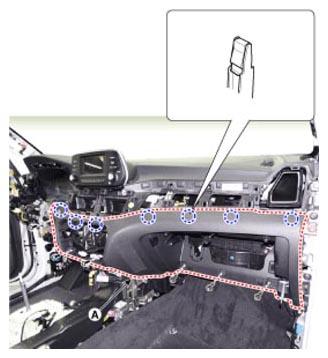

- After loosening the mounting screws and bolts, remove the crash pad center panel (A).
- Disconnect the start/stop button connector (A).

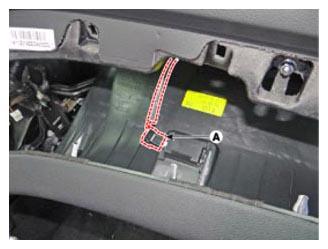

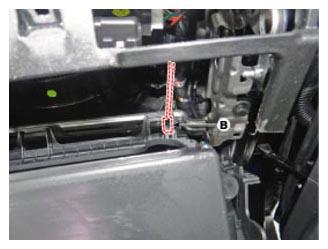

- Disconnect the glove box lamp connector (A) and glove box lamp switch connector (B).
- Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
