Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

2. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

3. Disconnect the steering column connectors.

   (Refer to Steering System - "MOTOR DRIVEN POWER STEERING SYSTEM ")

4. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

   (Refer to Steering System - "MOTOR DRIVEN POWER STEERING SYSTEM ")

5. Remove the accelerator pedal.

   (Refer to Engine Control/Fuel System - "ACCELERATOR POSITION SENSOR (APS) ")

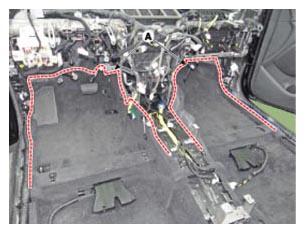

6. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

   Courtesy of HYUNDAI MOTOR AMERICA

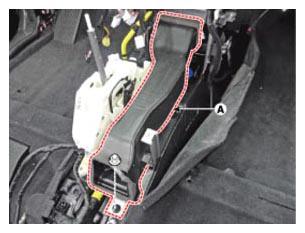

7. Loosen the nut and then separate the rear air duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

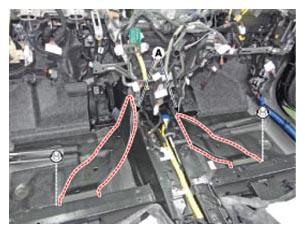

8. Loosen the nuts and then separate the floor air duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

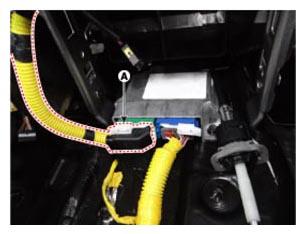

9. Disconnect the airbag control module (SRSCM) connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

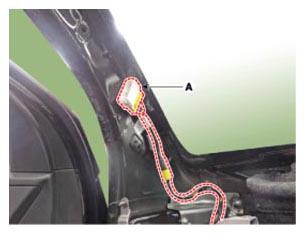

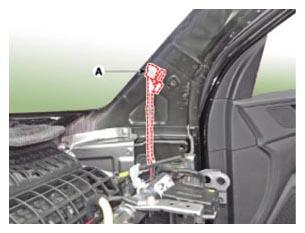

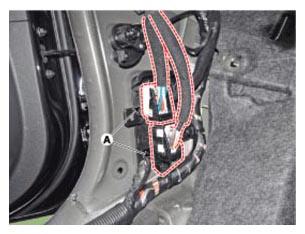

10. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

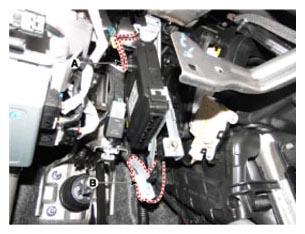

11. Disconnect the antenna cable (A) and smart key connector (B).

    Courtesy of HYUNDAI MOTOR AMERICA

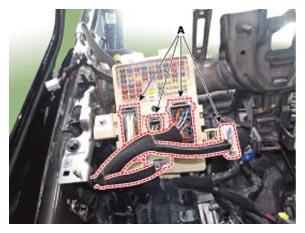

12. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

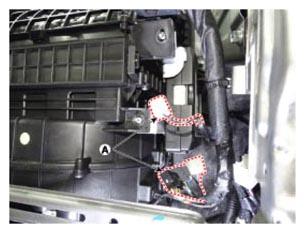

13. Disconnect the BCM unit connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

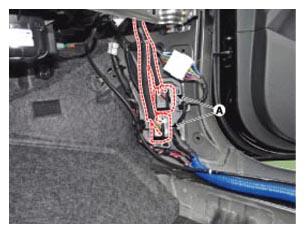

14. Disconnect the multi box connectors (A).

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

15. Disconnect the heater and blower unit connector.

    [Driver's]

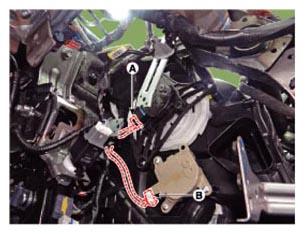

    1. Disconnect the mode actuator (A) and temperature actuator (B).

       Courtesy of HYUNDAI MOTOR AMERICA

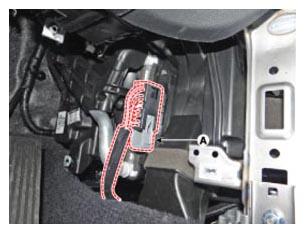

    2. Disconnect the PTC heater connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

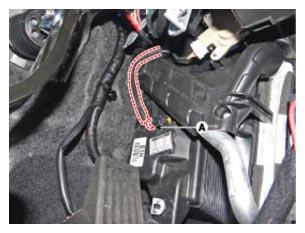

    3. Disconnect the evaporator temperature sensor connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

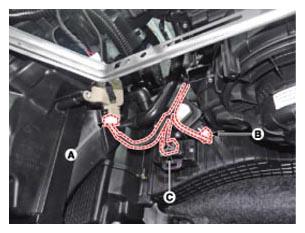

    1. Disconnect the temperature actuator (A), cluster ionizer (B) and resistor connector (C).

       Courtesy of HYUNDAI MOTOR AMERICA

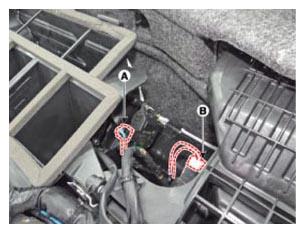

    2. Disconnect the auto defogging actuator (A) and intake actuator connector (B).

       Courtesy of HYUNDAI MOTOR AMERICA

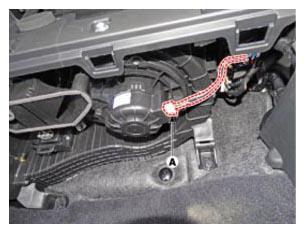

    3. Disconnect the blower motor connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

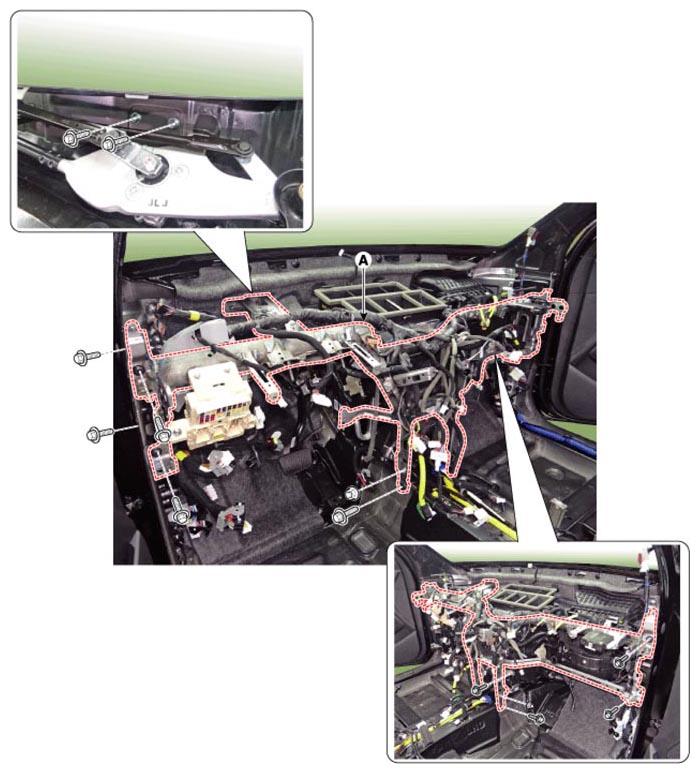

16. After loosening the bolts and nuts, then remove the cowl cross bar assembly (A).

    Courtesy of HYUNDAI MOTOR AMERICA

17. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
