Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

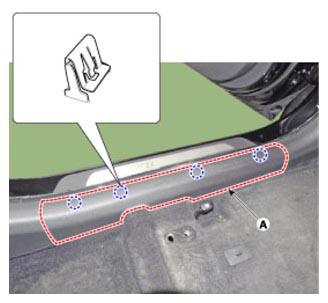

1. Using a screwdriver or remover, remove the front door scuff trim (A).

   Courtesy of HYUNDAI MOTOR AMERICA

2. Remove the hook area of hood latch release handle (A) by holding it with a cylindrical remover.

   Courtesy of HYUNDAI MOTOR AMERICA

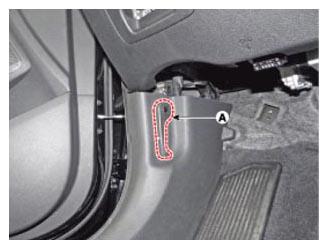

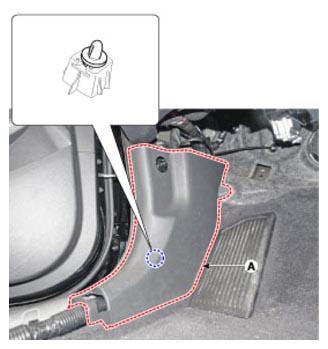

3. Using a screwdriver or remover, remove the cowl side trim (A).

   Courtesy of HYUNDAI MOTOR AMERICA

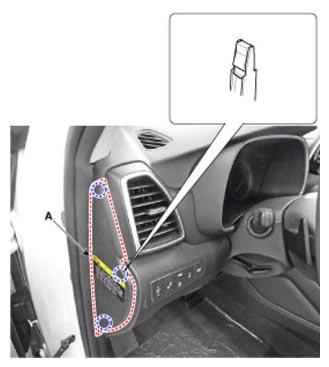

4. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

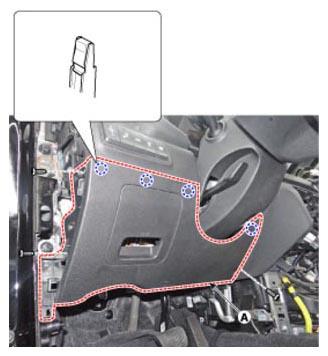

5. Loosen the mounting screws and remove the crash pad lower panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

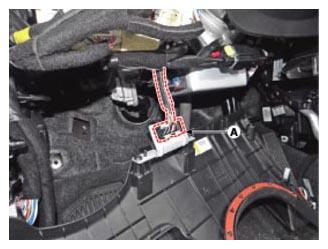

6. Disconnect the crash pad lower switch connectors (A).

   Courtesy of HYUNDAI MOTOR AMERICA

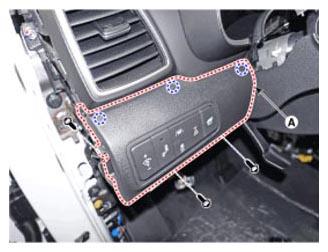

7. Loosen the mounting screw and remove the crash pad garnish [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

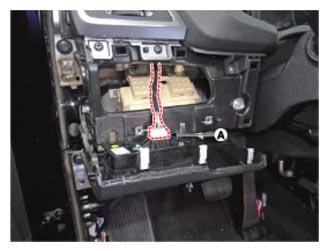

8. Disconnect the crash pad side switch connectors (A).

   Courtesy of HYUNDAI MOTOR AMERICA

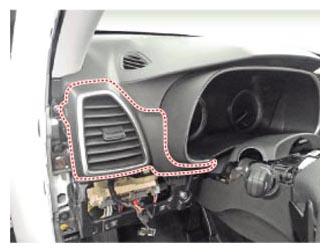

9. Remove the crash pad air vent duct [LH]

   Courtesy of HYUNDAI MOTOR AMERICA

10. Remove the center fascia panel (A) and Loosen the mounting screw (B).

    Courtesy of HYUNDAI MOTOR AMERICA

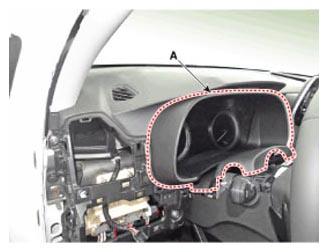

11. Remove the cluster fascia panel (A).

    Courtesy of HYUNDAI MOTOR AMERICA

12. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
