Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

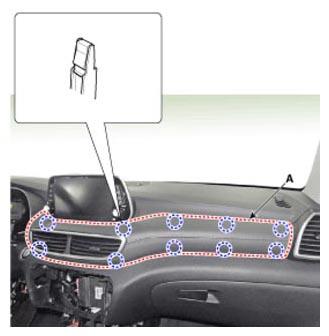

1. Using a screwdriver or remover and remove the center fascia panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

2. Install in the reverse order of removal.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips (or pin-type retainers).
