Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Carefully install the clamp not to damage the hose.
Install the clamp in a correct direction not to be interfered with other parts.
After the installation, start the engine and then check if there are any leakages from the hose.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

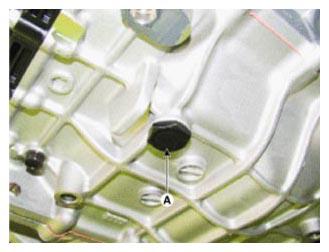

Remove the drain plug (A) and drain the ATF totally and then reinstall the drain plug.
Tightening Torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket before reinstalling the drain plug.
- After the installation, start the engine and then check if there are any leakages from the drain plug.

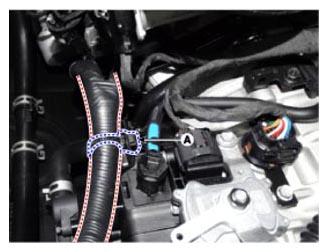

Remove the wiring mounting bolt (A) or clip.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

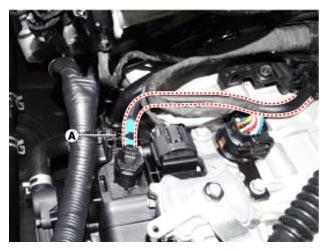

Disconnect the air breather hose (A) from the valve body cover.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening Torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket (B) before reinstalling the valve body cover.
- After the installation, start the engine and then check if there are any leakages from the valve body cover.
Disconnect the oil temperature sensor (A) and solenoid valve connector (B) from the valve body.
Tightening Torque

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Check for the looseness, poor connection, bending, corrosion, contamination, deterioration, or damage before reinstalling the solenoid valve connector.
Remove the valve body assembly (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Reassembly and disassembly procedures of the Valve Body Assembly, refer to Overhaul 'Service Information'.
