Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head cover.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

  2. Set No. 1 cylinder to TDC (Top dead center) on compression stroke.
    1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.
      G13016621Courtesy of HYUNDAI MOTOR AMERICA

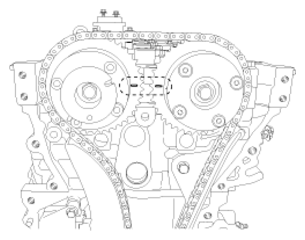

    2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft by one revolution (360°) more.
      G13016622Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Do not turn the crankshaft pulley counterclockwise.
  3. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

  4. Remove the timing chain tensioner (A).
    G13016623Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the detached tensioner.
  5. Remove the timing chain tensioner arm (A).
    G13016624Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the timing chain (A).
    G13016625Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the timing chain guide (A).
    G13016626Courtesy of HYUNDAI MOTOR AMERICA
