Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.

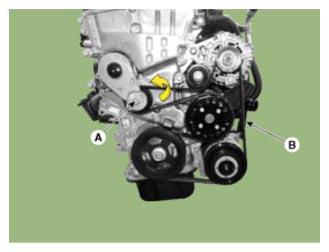

    1. Disconnect the drive belt (B) by turning the drive belt tensioner (A) counterclockwise.
      G13016597Courtesy of HYUNDAI MOTOR AMERICA

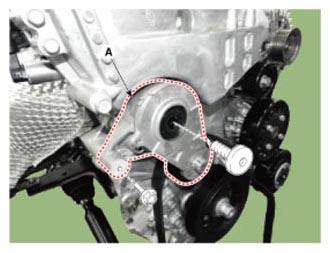

    2. After removing the drive belt tensioner (A), remove the drive belt.
    G13016598Courtesy of HYUNDAI MOTOR AMERICA
