Center Muffler
WARNING: This page is about a different variant/trim than selected.
- Remove the heated oxygen sensor.
(Refer to Engine Control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

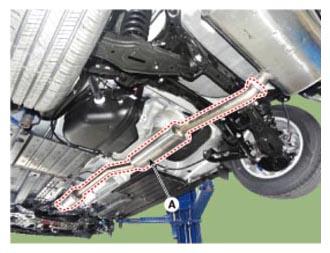

- Remove the catalytic converter and the center muffler (A).
Tightening Torque:
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
NOTE:- When installing, replace with new gaskets.
- Install in the reverse order of removal.
