Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Disconnect the battery negative terminal.
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Disconnect the wiring connectors and harness clamps and remove the wiring protector around the intake manifold.

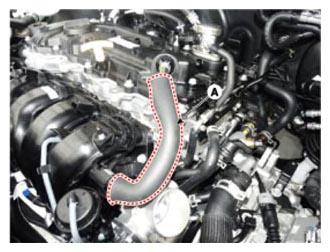

- Disconnect the positive crankcase ventilation (PCV) hose (A).

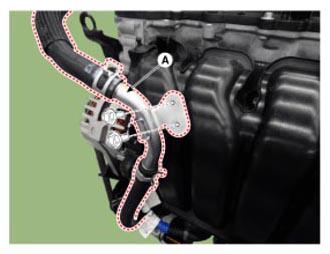

- Disconnect the reservoir tank water hose pipe (A).

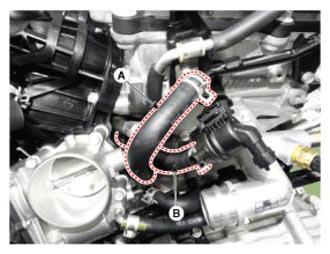

- Disconnect the vacuum hose (A) and purge control solenoid valve (PCSV) hose (B).
- Unfasten the Electric Throttle Body Control (ETC) Module Bolts.
(Refer to Engine Control/Fuel System - "ETC (ELECTRIC THROTTLE BODY CONTROL) SYSTEM ")

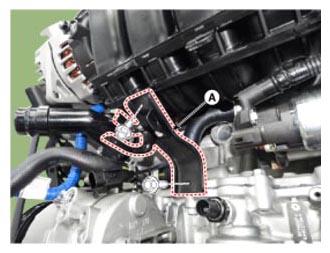

- Remove the intake manifold stay (A).
Tightening Torque:
18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

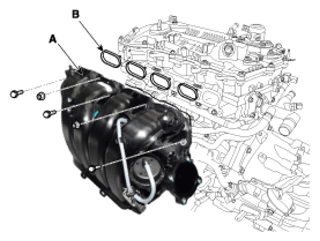

- Remove the intake manifold (A) with the gasket (B).
Tightening Torque:
18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

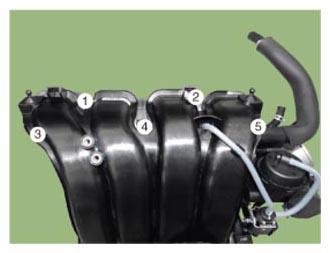

NOTE:- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.
- Install in the reverse order of removal.
